Strain gauge force transducer SK-01 series compressionplanar beamdigital
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- planar beam
- Technology
- strain gauge
- Output signal
- digital
- Applications
- for wire rope tension, for cables
- Other characteristics
- precision, with mounting flanges, stainless steel, custom-made, with integrated amplifier, temperature-compensated, IP66, rugged
- Rated force
300 kN, 400 kN
Description

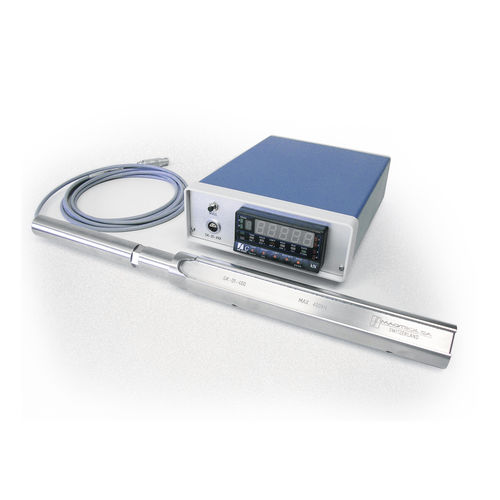

The Magtrol SK-01 Force Transducer, based on strain gauge technology, is ideal for the control of ropes, brake clamps and similar devices. It measures the clamping force, independent of the clamp, on the longitudinal axis of the transducer.
Features
Accuracy class : 3%
Stainless steel design
Temperature compensated
Optional amplifier display (SKG-01)
Protection class : IP 66
Mechanical adaptation for different diameters (rope with diameter 28 … 95 mm)
Applications
The SK-01 is available in two different ranges. One for ropes of a diameter 28 … 47 mm for forces up to 300 kN and the second of a diameter 48 … 92 mm
When connected to a SKG-01 Digital Amplifier, the SK-01 is ideally suited for measuring the clamping force on lifts, ski-lifts and similar applications.
Catalogs
SK-01 Series
3 Pages
