Tension load cell ZF, ZF-S
pancake typestrain gaugeanalog

Tension load cell - ZF, ZF-S - MAGTROL - pancake type / strain gauge / analog
Tension load cell - ZF, ZF-S - MAGTROL - pancake type / strain gauge / analog
Tension load cell - ZF, ZF-S - MAGTROL - pancake type / strain gauge / analog - image - 2
Add to favorites
Compare this product


Characteristics

Type
tension
Form
pancake type
Technology
strain gauge
Output signal
analog
Other characteristics
stainless steel, high-precision, IP67
Rated force

Max.: 200,000 N

Min.: 100 N

Description

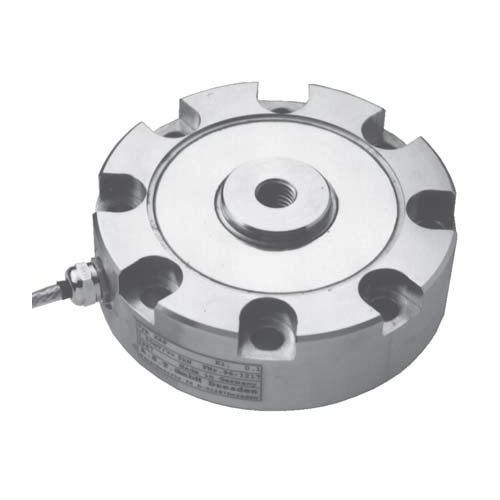

The force transducers of the ZF / ZF-S Series have been designed for the measurement of static and dynamic tensile and pressure forces; they are characterized by their low assembly height at a high measuring accuracy. The force is introduced on one side through a central tapped hole, the other side of the force transducer has to be fixed to a sufficiently rigid plane surface by means of 8 high-strength hexagonal socket-head bolts to be tightened with a defined torque. A strain gauge bridge converts the elastic deformation of the sensing element into an electrical signal that can be evaluated. Compensation and adjustment elements are used to set the required technical data. As a standard, the transducers are equipped with a 3 m connection cable, which has free ends on the other side. Features High accuracy For tensile or pressure forces Made of stainless steel Enclosure protection IP 67 High precision Low assembly dimensions For tensile or pressure forces Enclosure protection IP 42
