LCD display PSD

alphanumericnumericgraphic

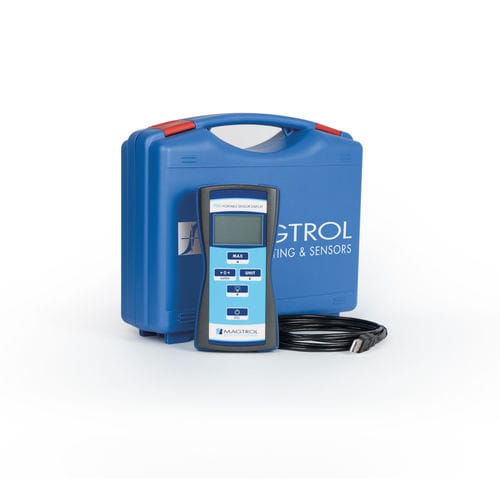

The PSD Portable Sensor Display from Magtrol is a very compact, light and easy to use device. This amplifier can process sensor strain gauge signals ±0.3 … 5 mV/V. High measuring accuracy, paired with fast measuring rates allow an internal resolution of 22 bits at 2 mV/V. It also stores the adjustment data, sensor designation and physical unit. Functions, such as TARE, recall of min.-max. value,… are available during the measurement. The device is powered by 3 AA batteries or via its USB Mini-B port. In order to increase its duration of use, the PSD integrates an automatic standby mode which is activated when the device is not used. Features 0.01% Accuracy Rigid Versatile Handheld Instrument Min.-Max. Value Display (Peak & Valley) 16 Programmable Measurement Ranges Measuring Rate up to 1 600 values per second Connection to any type of Strain Gauge Transducers USB 2.0 Interface Battery-powered or USB-powered Device Display Units Character Height: 14 mm Can be programmed directly on the device or by software (provided). Applications The PSD Display can be used with many sensors such as force sensors, load cells, torque sensors, anchor sensors or any other type of strain gauge transducers. This portable measurement and display system is particularly suitable in cases where a fixed installation is difficult or irrelevant, such as: Maintenance of installation Intermittent monitoring Laboratory, Research and development,… Installation or monitoring in civil engineering,…
