Stainless Steel Belt Food Conveyor
"Shin-Con-San"
Bears brilliant durability, corrosion resistance, and chemical resistance, due to its all-stainless steel body.
It is optimal for conveying items that require heating, drying, and cooling to extents impossible for resin or rubber belts!
Unlike rubber or resin belts, stainless steel prevents the infestation and reproduction of bacteria, making it optimal for loading food directly onto the belt!
- Despite being a stainless steel belt, its drive / tail roller diameter is a minimal size of 80mm, enabling smooth food transfers and compact layout.
- Stainless steel belts do not wither or deteriorate when cleaned or sterilized by hot water or alkaline chemicals.
- Since food colorings and smells can be washed away from stainless steel belts, products can be conveyed without concern.
- Belt edges do not fray and coatings do not peel. Our belt eliminates any fear of foreign particle insertion.
Applications:
Direct food loading conveyance, food filling, packaging line food sterilization, cleaning, dewatering / drying lines, freezing / cooling lines
|
|
Features:
Metal belts are optimal for preventing static electricity and electrostatic charge. These electricity may affect quality of semiconductors and electronic parts. Therefore stainless steel belts are suitable for conveying these items. Additionally, unlike resin and films, they prevent the adherence of dust particles.
Applications:
- Conveying sealed semiconductor packages
- Assembly conveyance of electronic parts (function check, UV processing, trim and form)
- Conveying films
- Conveying chemicals (prevents dust adherence to chemicals caused by static electricity
|
|
The Hartness Mass Flow 7100 DYNAC provides a much needed alternative to traditional high pressure accumulation systems.
The system is similar in proportion to conventional accumulation tables, but offers the unique DYNAC sensitivity to changes in product flow. The DYNAC 7100 operation creates a pressure-free, first-in/first-out environment that always ensures superior product handling.
Frequent slowdowns and micro-stops that are inherent, in even the best designed lines, can dramatically reduce throughput. DYNAC virtually eliminates the effect of these occurrences, raising productivity by providing
a constant and optimal product flow to line components.
|
|
1) Light belt conveyors
- for transportation of loose and lump materials
- stainless sliding body, zinc-coated machine parts, painted height-adjustable supporting structure
- separate electric accessories, drive by gearbox or by electric drum
- mobile or welded frame
- flat or slope belt conveyors
- other accessories - turntable, lifts and lifting devices, shifting devices, scaling, steel-strapping machine, wrapping machine, packaging machine etc.
- for paper, food, automotive industry...
2) Heavy belt conveyors
- for transportation of large quantities of loose materials with different grain sizes
- bearing and supporting structures
- various additional devices - pouring towers, chutes, removable covers etc.
- building material industry, raw material manufacture
|
|
The slider belt conveyor provides a consistent and flat surface for movement of cases or packages not intended for roller conveyors. The system provides excellent positive control over packages.
CASI only uses conveyor with premium belting materials, which prolongs the life of the belt and reduces maintanence such as the need to adjust tension. The cost and versatility of belt conveyors make them the most commonly used power conveyors for distribution. Belt conveyors can handle a multitude of shapes, sizes, and weight, making them an ideal solution for companies that have a diverse product line and challenging material handling needs.
|
|

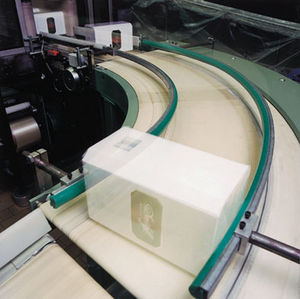

Troughed belt conveyors with horizontal curves were brought to industrial use by BEUMER. Because of their curved routing and minimum curve radii, these systems offer a low-cost alternative to systems, made of straight-line units with transfer points. By transporting material simultaneously in both directions utilizing the top and bottom belt strand, it permits the customer to operate the system in an even more economical way.
With this technology BEUMER has set new milestones.
|
|
|
|
|
|

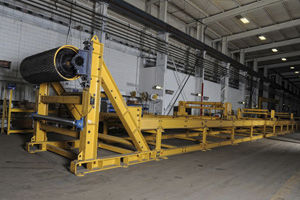

Transport devices are intended for continuous transport of overburden, coal or extracted rock in open-pit mine conditions.
The basic transport devices manufactured by UNEX Inc. are conveyors with rubber belts stiffened with textile or steel-cord meshwork. Belt width ranges from 1 200 to 2 250 mm and their max. transport capacity is up to 10 000 m3/h. Depending on the mining technology conveyors can be design in two versions: movable or immovable.
Driving and return stations can move on rails (in axis or fanlike fashion) using rails or caterpillar undercarriages (rigid or load sensitive).
For extreme conditions (contact pressure of lower than 0,07 Mpa) the driving and return station can be design by means of hydraulic walking undercarriages.
Adjusting and adapting every individual conveyor in accordance with customer requirements and technological conditions is a matter of course.
All parameters of transport devices are in-tune with a series of UNEX bucket wheel excavators. Together with additional equipment for loading, directing and deflecting material flow they form complete technological complexes. The conveyors are able to work in fully or semi-automatic mode. Maintenance costs are minimal.
|
|
Mechanical flat belt conveyor with flights
Drive througt servomotors/step by step
Structure of carbon steel-mild
PVC belt
|
|
CRB-Series

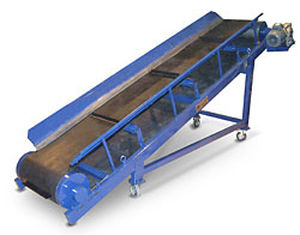

Cleat Belt Incline Conveyor
Flat cleated slider belt conveyor for transfer of larger size bulk products in incline applications. Typical applications include small parts changing elevations in manufacturing process. (shown w/optional stand)
Design Features:
- Lengths to meet specific project requirements.
- Drives engineered per application.
- Belt widths and compositions designed per application. 120# PVC COS with 2” high cleats on 12” centers is typical in 12”, 16”, 20” and 24” widths. Stainless steel mechanical lacing.
- Slide return pan for cleated belt.
- 2” high vertical side rails full length.
- Formed 12 gauge frame construction.
|
|
Treadmill Inclined plane 57
Structure in aluminum structural profile
40 x 80 (3kgs /m)
Rigid PVC belt with flights (varying heights)
Side guides in aluminum plate
|
|
|
With its closed design, a tube belt conveyor allows optimum adaptation of the conveying route to topographic conditions. Since the conveyed material is completely enclosed, it can be transported dustfree, and even extremely steep gradients are safely coped with. This technology is based on proven machine components and a special belt design which ensures a safe operation.
|
|
Caljan BeltTrack telescopic conveyor
Although we develop our machines with a view to efficiency, we NEVER compromise on safety. On average, every accident in the dock area costs 4.200, so investing in safe equipment is not only a question of looking after your staff, it is also economically sound.
Reaching up to 16.7 m, Caljan BeltTrack telescopic conveyors enable you to load/unload all European trucks and trailers. With more than 16,000 units in use, this is the world's most popular telescopic belt conveyor.
Caljan BeltTrack, type F, combines speed with ergonomic operation. The gently rounded profile and dual control panels allow two operators to work in unison to load the vehicle. The head of the conveyor can be placed at the appropriate height and extension by either operator. Capacity is increased, without causing stress.
|
|
Structure in carbon steel
Current-screen (carbon steel or stainless steel) forhigh temperatures
Sliding on rollers to load and return
|
|
TYPICAL SPECIFICATIONS :
- Non-slip PVC belt standard
- Roller bearing belt return
- Effective conveying widths up to 27”
- Unique design allows for height adjustment during installation
- Motors: 1 HP TEFC 230/460/3/60 Or Higher Dependent on loading
- {Washdown, TENV and Explosion Proof options available}
- {All stainless steel construction available}
- {Motor Drives and Controls available}
|
|
|

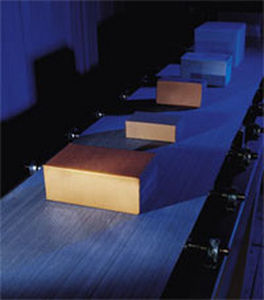

Conveyor belts manufactured by Belt Technologies, Inc. are engineered using stainless steel and welded endless using a high energy beam technique. Welded area is extremely strong and is weld finished to give a smooth surface. Other metals can be used for increased strength, heat resistance and flatness. Belts are manufactured in widths from .080" to a current maximum of 36" and can be coated with Teflon®, polyurethane and rubber. Belt thicknesses range from .001" to .031" and are designed to meet the customer%u2019s application requirements. Plain belts are friction tracked or a PVC, Neoprene or Silicon Rubber V-belt can be bonded to the belt for force tracking.
|
|
|
|
|
|
Montech Conveyors TB are used to carry parts to or from the various manufacturing stations or combined to form complete production lines. Thanks to the modular design, they are very suitable for customerspecific transport solutions. At the same time, the conveyors form the basis of our longitudinal transfer systems.
The following chassis widths are available: 60, 80, 105, 140, 185 and 250 mm.
Either a single belt or a dual belt can be used.
For transporting larger pallets and other dimensionally stable products, it is possible to use the tandem conveyor TTBD: here, two conveyors are connected by means of a cardan shaft and driven by only one motor.
Conveyor-Configurator:
The Conveyor-Configurator is operated intuitively and logically. All necessary information for solving your transport problems is requested sequentially. Starting from your specific requirements and wishes for transporting a product, a conveyor will be proposed according to the “best price principle”. Incorrect configurations are ruled out by the program in advance by means of a plausibility check. At the end of the configuration, you will be sent the order form with price information by e-mail and you can place the order with us by fax.
|
|
Minidrive conveyors KTB are used to carry parts to or from the various manufacturing stations, or combined to form complete production lines. Thanks to the compact design and integrated control, the minidrive conveyor is the ideal solution for many applications.
Conveyors TB are used to carry parts to or from the various manufacturing stations or combined to form complete production lines. Thanks to the modular design, they are very suitable for customer-specific transport solutions. At the same time, the conveyors form the basis of our longitudinal transfer systems.
Max conveyors GTB are used to carry parts to or from the various manufacturing stations, or combined to form complete transport systems. The conveyor is driven by a spur gear motor 230/400 V with high power reserve. This permits transportation of up to 125 kg in conveying mode.
|
|
mk conveyor technology
A comprehensive, standardised range of belt conveyors, chain and table top chain conveyors as well as roller conveyors.
The configurability of the modules enables them to be adapted to customers' specific requirements and integrated in complex systems. At the same time, the basic principle of optimum standardisation ensures process security, fast availability and reasonable prices.
|
|
|
According to your specification, the conveyors our range 45 and 90 are tailor-made. The belt conveyor module in our MiniTec CADmenue construction software designs your belt conveyor automatically according to your requirements. Furthermore it calculates the deflection, suggests the number of supports and generates the parts list - within a few minutes. Assembly can be carried out quickly and easily as a result of our proven components.
|
|
• Motors: with miniature central drive, central drive (direct or not), with motor flange and housing, for coaxial drive, rollers with internal motor Ø 50 brushless and Ø 72.
• Many applications especially in the food, cosmetic, pharmaceutical fields.
|
|
Low Cost Conveyor Belt for the industry standards.
A dispatch within 5 working days guarantees responsiveness to your requests.
Steel rollers with aluminium bearing housings.
Frame made from anodized aluminium profiles.
|
|
Belt Conveyor
- Popular package handling conveyors
- Inexpensive, simple construction
- Quiet & easy to install
A very versatile conveyor, the Model TA can be used in many types of material handling situations such as assembly line operations, sorting, packing, and inspection. Conveyor sets up quickly and easily to save on installation time.
- Bed - 4 in. deep x 12 ga. formed steel slider bed - powder painted
- Belt Widths: 6", 8", 10", 12", 14", 16", 18", 20", 24", & 30"
- End Drive (standard)
- Motor - 1/2 HP standard - 2 HP max.
- Adjustable Floor Supports Available
- Capacity - Maximum load per linear ft. of conveyor 75 lbs., not to exceed rated capacities
- Reversible (with Center Drive)
|
|
Belt Conveyor
Features
- Covered screw take-up at the tail pulley.
- Expanded metal guard covering all pinch points in tail section.
- Heavy structural channel stringers with 14 gauge dust panel beneath belt.
- Head pulley support fabricated of extra heavy structural angle.
- Skirt-boards and rubber skirts are mounted on the channel stringers at load areas.
- Counterweighted double-blade belt scraper.
- 3/8" Vulcanized lagging with herringbone grooving.
- Reducers are Dodge shafts mounted, torque arm type of AGMA Class II with tapered
- Roller bearings
- Integral backstops provided where required.
- Skirt boards with adjustable rubber blades are mounted on the channel stringers at load points
- Heavy structural steel channel stringers
- Deck plate to stiffen frames and help control dust
- Flat idlers
- Extra Idlers at load points
|
|
|
The standard range of belt conveyors from Interroll Automation provides solutions for every industry: transportation of single items or loose goods, horizontal or vertical configurations, mini conveyor belts having a construction height of 40 mm, or heavy-duty belt conveyors with a capacity of 300 kg/m...
|
|
|
|
|
|
Montech Minidrive Conveyors KTB are used to carry parts to or from the various manufacturing stations, or combined to form complete production lines. Thanks to the compact design and integrated control, the minidrive conveyor is the ideal solution for many applications. The belt is driven by a regulated, brushless 24 V DC motor with variable speed and selectable direction. The switchable electric motor brake is durable and considerably reduces run-out of the belt when stopping. This provides many new approaches in the solution of conveying tasks.
The following chassis widths are available: 45, 60, 80, 105 and 140 mm.
Either a single belt or a dual belt can be used.
In spite of a compact drive unit, up to 20 kg can be transported.
Conveyor-Configurator:
The Conveyor-Configurator is operated intuitively and logically. All necessary information for solving your transport problems is requested sequentially. Starting from your specific requirements and wishes for transporting a product, a conveyor will be proposed according to the “best price principle”. Incorrect configurations are ruled out by the program in advance by means of a plausibility check. At the end of the configuration, you will be sent the order form with price information by e-mail and you can place the order with us by fax.
|
|
|
|
|
|
Montech Max Conveyors GTB are used to carry parts to or from the various manufacturing stations, or combined to form complete transport systems. The modular construction of the system permits simple adaptation to specific customer requirements. The conveyor is driven by a 230/400 V spur gear motor with big power reserves. This permits transportation of up to 125 kg in conveying mode. The following chassis widths are available: 200, 300, 400, 500, 600, 700 and 800 mm.
The end drive version can be fitted above or below the belt depending on available space. The top drive version can transport products up to 80 mm high. The possible belt length is between 1 and 6 m. The center drive version is suitable for conveyors up to 15 m. The drive unit can be placed at any location.
Conveyor-Configurator:
The Conveyor-Configurator is operated intuitively and logically. All necessary information for solving your transport problems is requested sequentially. Starting from your specific requirements and wishes for transporting a product, a conveyor will be proposed according to the “best price principle”. Incorrect configurations are ruled out by the program in advance by means of a plausibility check. At the end of the configuration, you will be sent the order form with price information by e-mail and you can place the order with us by fax.
|
|
M-200 Series: Inclined Belt Conveyors, Painted Steel M-300 Series: Horizontal Belt Conveyors, Painted Steel
M200/M300 Series Conveyors
Standard features include color to your specification, 12 gauge steel frames, fixed 4" high steel slide rails, 3" diameter pulleys with welded 1" shafts, USDA/FDA approved belts, 1" bore heavy duty flange bearings, 4" wide adjustable legs with floor mount pads, AC motor gearbox, 1/8HP and up, single or three-phase, NEMA 1 control with plug and overload protection, and fixed speed.
|
|
4 types:

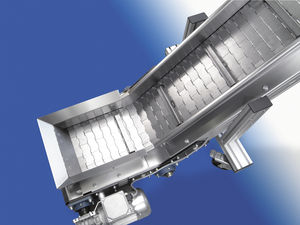

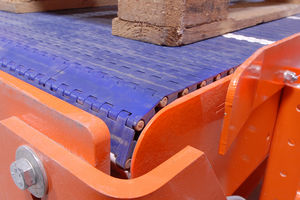

• Mesh belt conveyors standard L (1)
• Mesh belt conveyor standard U (2)
• Mesh belt conveyor standard U with breaks (3)
• Mesh belt conveyor standard U curves (4)
This range of conveyors answers, thanks to a vast choice of modular bands, to all the needs for transport of parts, for draining, drying and cooling functions. The positive drive, by toothed wheels, guarantees a precise positioning, as well as a sure passage on the level of the breaks and curves. (Maintenance and cleaning fulfill the requirements of the food mediums).
Possibility of replacing links insulated without disassembling of the conveyor, of changing partially or completely the band without dismounting the conveyor, to regulate the “tension” (play) of the band, to reverse the walk’s direction (consult us).
|
|
|
|
