Eagle Eye
The ergonomically designed Eagle Eye provides operator easy access to illumination intensity control, still picture capture button and a robust Joystick for articulating the micro CCD on tip of the slim ø7.0mm insertion tube up to 90º in all directions. The articulating tip has a small curvature radius for easy insertion and comfortable access into the small spaces. The special flexible stainless steel mesh insertion tube design provides superior insertability, excellent crush resistance, robustness and reliability, reducing the overall cost of the investment.
Applications:
- Inspection of machined parts pipes and tubes
- die casts and injection molds
- automotive, aviation
- engines, gear boxes, turbine blades
- welding examination
- petrochemical and power plants
- constructions
- digital Image/video recording and documentation
- information exchange and easy reporting
|
|
|
Fiberscopes are flexible instruments that use a coherent fiber bundle to transmit an image back to the inspector's eye. A separate non-coherent fiber bundle is used for transferring the illumination from the light source to the inspection area. Fiberscopes can also be attached to CCTV and digital imaging equipment so that movie or still images can be recorded for future reference or used in associated documentation.
|
|
|
Borescopes are the ideal choice when straight-line access to the area of interest is available. These rigid instruments use an optical lens system to transmit an image from the inspection area back to the eye and a non-coherent fibre bundle to illuminate the object. They are available in a range of diameters from 0.9mm to 16mm (0.04" to 0.63") and working lengths up to 1.5m (4.8'). Their ease of use ensures a straightforward inspection solution with minimum set-up.
|
|
|
Borescopes are the ideal choice when straight-line access to the area of interest is available. These rigid instruments use an optical lens system to transmit an image from the inspection area back to the eye and a non-coherent fibre bundle to illuminate the object. They are available in a range of diameters from 0.9mm to 16mm (0.04" to 0.63") and working lengths up to 1.5m (4.8'). Their ease of use ensures a straightforward inspection solution with minimum set-up.
|
|

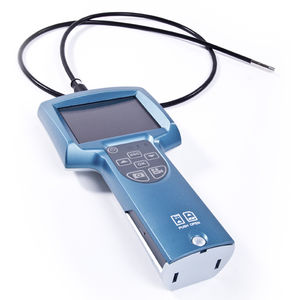

All in one. 1-2 OR 3 meter long video endoscope with 3.5" Screen. Supplied with a SD Card 512 MB that allows recording of pictures or videos in full autonomy mode.
Main characteristics
- 3.5" LCD Screen
- Adjustable light intensity
- SD Card 512MB
- USB Slot - compatible USB 1.1 & 2.0
-Video out for connection to Monitor
-Easy to use 2 Push buttons record mode
-Rechargeable Battery
TECHNICAL DATA - CCD VIDEOSCOPE Working diameter 5.50 mm
Working length 1.000 - 2.000 - 3.000 mm
Outer tube PVC flexible
CAMERA
Resolution 640*480 pixels
Video signal NTSC / PAL
Frame rate 30 fps
White balance automatic
Lighting 4 white LEDs
OPTICS
Direction of vision 0°
Field of view 67°
Focale distance 15 to 100 mm
Resistant to water & fuels yes to most fuels and solvents
Bending radius 50 mm
Temperatures of use 10 to + 60°C
TECHNICAL DATA - LCD SCREEN
Screen LCD TFT 3.5"
Autonomy 4 hours run time on battery per charge
|
|
The Iplex FX Introduces new levels of durability to industrial videoscopes, with its shock-resistant case design and wear resistant scope exterior. The Base unit chassis is Magnesium construction - renowned for its strength and light weight. Power is provided to the FX by an internally mounted Lithium-Ion battery which provides over 2 hours run-time. The Iplex FX complies with the internationally recognised MIL-STD 810F.
To meet the requirements for high quality true image reproduction and colour, the Iplex FX features an optimised optical system and WIDER (TM) image processing.
|
|
|
|
|
|
eXtreme System
The eXtreme System is an example of the innovation approach which IT Concepts has taken to develop easy to use high performance RVI equipment with an inexpensive price tag. The eXtreme System is the combination of the eXtreme Videoscope and the iCapturesmart image storage and display device plus a 24 W Light source. eXtreme Videoscopes employ advanced imaging technology to deliver extraordinary performance.
- Extraordinary performance
- Red hot value
- Advanced Videoscope Technology
- Developed for industrial applications
- Ultra compact and portable
- The eXtreme System weighs just 2.5kg
- Sturdy and reliable
- Plug & Play technology

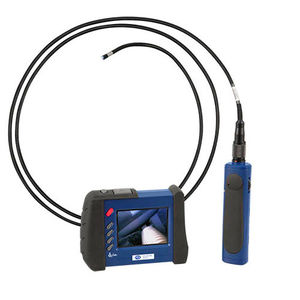

The iCapturesmart features a bright LCD display to view live video or stored still images.
The eXtreme System is an economical alternative for demanding inspections which expose equipment to a lot of wear and tear. The fit, form and function of the eXtreme System
together with its low price makes it a candidate for Remote Visual Inspection (RVI)
programs which experience regular repairs and high operating costs.
|
|
|
|
|
|
For all your on site inspection needs where you need a flexible endoscope at an affordable price, we offer you here a Ø 6mm x 910 mm fiberscope with 7.400 pixels image bundle.
LED FLEX ECO main characteristics
�� Flexible PVC outer tube
�� Optical examination of cavities and hidden structures
�� Quality maintenance diagnostic
�� Early structural dammages detection
�� Reduction of maintenance costs
�� No danger for tanks inspection (gaz or petrol bottles)
�� Immersible in water and Petrol with special optical treatment
�� No generation of heat at the tip of the instrument
TECHNICAL DATA Working Ø 6.0 mm
Working length 910 mm
Direction of View 0°
Field of view 60°
Depth of Field 10mm to ∞
Mirror tips yes 60-90°&110° (option)
Optical fibers plastic
Resolution 7.400 pixels
Eyepiece Magnification 20X
Insertion Tube Sheathing PVC flexible
Insertion Tube Bend Radius 30 mm
Lighting supply Xenon bulb (15 Hours)
Light guide plug Integrated
Operating Temperature working length -0°C to 60°C
Fluid Resistance Water & fuels tight
It is used in many different fields : Motor manufacturing - Tool making - Automotive and garages - Aviation - Construction and chimical industries - Foundry - Expertises - Police & Customs - Naval construction - Maintenance all fields - Tanks and bottles inspection.
This Kit includes
1 ECO636 - 0° - 2 spare xenon lamp - 1 Carrying case
|
|
|
|
|
|
Innovation: unique flexible Borescope with fully integrated LED light source
Your benefits:
- saving of costs
- saving of time
- unlimited mobility
Further features:
- sleek, state-of-the-art hand-held-unit with fully integrated, adjustable LED light source
- all control elements are integrated in the aluminium handle (one-hand operation)
- unmatched high intensity of illumination (5.500K colour temperature)
- no bulb replacement necessary
- 2-way articulation at tip
- video/digital camera compatible thanks to high-resolution fibre glass image bundle
- rugged, resistant tungsten braid coating
- rechargeable lithium ion battery – 90 minutes continuous operation
- easily portable security carrying case for travel
- diameter from 3,2 mm up to 6 mm
- up to 2030 mm working length
- focusable
Scope of delivery:
flexible borescooe + 2 lithium ion batteries + battery charger + AC/DC adapter cable + solid security carrying case
Repair service:
We consider it to be self-evident to grant you an uncomplicated, fast and cost-saving repair service, in case of a damage of the borescope.
Besides the repair of our own products we repair borescopes of other manufacturers aswell.
After the sending of your damaged instrument (without obligation), we will generate an evaluation for repair (for free), or an attractive replacement offer, if the repair is impossible or would be uneconomical.
Further information about the other product groups and their particular advantages you can find on our webpage.
|
|
|
|
|
|
iFlex
Flexible Fiberscopes
iFlex Fiberscopes contain an optical image guide made of highly flexible, thin and parallel single fibres. A focusable ocular adjusts the optic system to the visual acuity of the viewer. Additional to the direct view objective, a side view tip adapter can be provided.
- specifically developed for industrial applications
- high-resolution image guides
- 90° Side View Tip Adapter (optional)
- maximum light transmission
- real one-handed operation
- sensitive zero-point of the articulation
- tactile probe contact in objects
- permanently deceleration of the controller cables
- durable tungsten sheathing
- liquid-tight probe up to 1 bar
- splash proofed handle
The integrated fibre light guide with high light transmission provides extremely bright object illumination. These components - build in high precision by IT Concepts - assure sharp and high-resolution pictures with high colour fidelity for professional inspections. A specifically designed convenient one-handed operation without probe detent avoids severing of the controller cables and therefore assures extremely high durability.
iFlex Fiberscopes can be provided with working lengths of 1.0m to 3.0m, with diameter 2.4mm, 3.5mm, 4.0mm, 6.0mm and 8.0mm, as well as 2 or 4-way articulation.
The large choice of accessories as cold-light sources, cameras and imaging hubs allows remote visual inspections for any application.
|
|
If a space is not accessible using a direct, straight path, flexible endoscopes, so-called flexoscopes are used for inspection.
Flexoscope images are transmitted through sorted fiberglass bundles that record the picture and transmit it to a user's eye.
KARL STORZ flexoscopes are designed for rough, industrial handling and can be repaired at low cost if they should become damaged.
Advantages of KARL STORZ flexoscopes:
• 4-Layer protective sleeve
• 4-fold deflection of distal end
• Diameters from 0.5 mm
• Many different lengths.
|
|
Medigus specilaizers in developing adavced technology for endoscopy and provides services to third party companies that include design and manufacture of endoscopy systems using its proprietary technologies, such as its miniature cameras for endoscopy.
Medigus designs various flexible, rigid and semi-rigid endoscopes for industrial, medical and veterinarian applications. Both reusbale and single-use designs are available.
The company has a platform technology for endoscopy which includes back end units for endoscopy. This includes video processor units, light sources, and insufflation/irrigation pumps.
|
|
WOLF flexible endoscopes -
extremely short head for maximum manoeuvrability
WOLF flexible fiber endoscopes -
protective shell outside, ultra-precision mechanical and optical components inside
WOLF flexible fiber endoscopes -
with and without exchangeable objective lens heads
WOLF repair service -
case-specific damage assessment and repair. Only what is defective will be replaced.
|
|
|
|
|
|
iRis
Intelligent Remote Inspection System
Extremely compact dimensions, minimal weight and optimal handling are the outstanding attributes of the iRis Videoscope System by IT Concepts.
- Videoscope for the mobile use
- ready for use in no time
- very compact & portable
- sturdy & reliable
- 1.5kg lightweight
- real one-handed operation
- integrated high-power LED light source
- intuitive use
- intelligent camera control
Inspections in remote or inaccessible areas of the harsh industrial environments now are feasible in no time and with an undreamed easiness. Only little efforts and iRis is ready for use within seconds. You can move the distal end to any desired position fast, easy and precisely, thanks to the approved tactile 4-way articulation of up to 180°.
Adjustable and interchangeable objectives with different fields of view, f-stops and working distances as well as the high brightness of the LED light source guarantee, that you don´t miss any detail on the 4.0" high resolution TFT display.
The integrated, changeable and rechargeable high power batteries assure 2 hours of opera-ting time. The balanced handle - designed for real one-handed operation - allows long and effortless working.
With diameters of 6.0mm or 8.0mm and lengths from 1.5m to 3.0m the iRis leaves nothing to be desired.
|
|
|
|
|
|
Detect subtle irregularities in castings, ensure the structural integrity of an aircraft engine or diagnose the cause of an automobile squeak or rattle-nothing gets by the exceptional clarity and high precision optics of our rigid borescopes. Rigid borescopes are exceptionally durable with all-metal construction and a triple tube shaft design built to withstand the harsh environments of an industrial inspection. Our selection of industrial rigid borescopes includes Rotary Scan, Swing Prism, and Mini Rigid designs.
To enhance the versatility and performance of our rigid borescopes, choose from a broad selection of accessories including eyepiece adapters, video borescope adapters, monitors, recording devices, light guides and light sources.
Rotary Scan
Allow 360º cicumferential viewing without moving the body of the scope. Various models in a variety of directions-of-view and fields-of-view.
Swing Prism
Allow direction-of-view to be adjusted from 55º to 115º for panoramic viewing of an object which might require two or three conventional models to view.
Mini Rigid
Patented rod-lens optical system delivers outstanding image clarity and brightness as well as exceptional bending tolerance.
|
|
Rigid borescope, with grip, different working lengths, diameters and directions of view.
Special Features:
- extremely resistant working end through installation of saphire glas
- high illumination level
- great image replication
- very easy to maintain
- ergonomic grip
- service card included - for support after purchasing
- with solid case
Fields of Application:
Depending on construction, almost unlimited.
Repair service:
We consider it to be self-evident to grant you an uncomplicated, fast and cost-saving repair service, in case of a damage of the borescope.
Besides the repair of our own products we repair borescopes of other manufacturers aswell.
After the sending of your damaged instrument (without obligation), we will generate an evaluation for repair (for free), or an attractive replacement offer, if the repair is impossible or would be uneconomical.
Further information about the several product groups and their particular advantages you can find on our webpage.
|
|
industrial line rigid borescopes & semi-flexible scopes
The user-friendly rigid and semi-flexible endoscopes of the industrialline have especially been designed for industrial applications. They are particularly characterized by their high image quality and their hard-wearing design.
|
|
KARL STORZ borescopes are rigid endoscopes for general applications and are equipped with our proven HOPKINS® lens system.
The diameters of borescopes, i.e. rigid endoscopes, range between 1 mm and 10 mm, with viewing directions from 0° up to a 120° retrospection, and image angles ranging between a zoom lens and wide angle view.
Endoscopes with working lengths of 1.5 meters and longer are available for special applications.
KARL STORZ endoscopes are characterized by:
• Excellent depth definition
• True-color images
• Image brightness
• Excellent edge definition
All standard models are temperature-resistant up to 302°F (150° C) and pressure-resistant up to 5 bar. They are also resistant to oil, fuel, and solvents.
|
|
Rigid borescopes
Robust design, insertion tube liquid-proof, resistant to extreme pressures and temperatures. Light-intense lens systems with high-grade coating.
Easy adaptation to different camera systems.
Standard endoscopes
Wide choice of
diameters
working lengths
directions of view
angles of view
with and without eyepiece focussing capability
removable or integrated light guide
optional light sleeves
reinforcing sleeves
mirror sleeves
Swivel prism borescopes
Variable field of view, replaces 2 - 3 standard endoscopes.
Extremely compact construction, superior non-wearing adjusting mechanism
Especially light-intense optical system.
Maximum choice of diameters
Partly with quick-zoom capability (no additional adjustment wheel, no additional weight)
Panoramic borescopes
Ideal for cylindrical geometries: The full cylinder periphery at a glance - the 100% solution for manual and automatic routine tests
|
|
Hawkeye Blue Borescopes
Hawkeye Blue borescopes combine the value of Hawkeye borescopes with a wider variety of available options. The scopes contain high-quality, German-made optics and feature built in prisms that deliver superb image quality.
|
|
Semiflexible borescope, dia 9mm l=450mm direction of view 0°, field of view 50°, 10000px, focusable, with polyolefin covered stainless steel braid coating "stay-put" type
Fields of application:
For the examination of cavities which are difficult to get to through small openings in the do-it-yourself field.
Repair service:
We consider it to be self-evident to grant you an uncomplicated, fast and cost-saving repair service, in case of a damage of the borescope.
Besides the repair of our own products we repair borescopes of other manufacturers aswell.
After the sending of your damaged instrument (without obligation), we will generate an evaluation for repair (for free), or an attractive replacement offer, if the repair is impossible or would be uneconomical.
Further information about several product groups and their particular advantages you can find on our webpage.
|
|
Eco inspection kits
IT Concepts Eco Inspection Kits – developed for the daily tough industrial operation. They combine high image quality, easy handling and sturdy, hard-wearing design to a particular attractive price-performance ratio.
Visual inspection and non-destructive testing in engine construction, vehicle construction, plant construction, building industry and small trade are typical fields of application.
- Specifically designed for industrial applications
- high quality glass fibers
- maximum light transmission
- brilliant resolution
- sturdy & reliable
- modular & versatile
- custom-made if desired
|
|
microflex micro fiberscopes
microFlex Fiberscopes from IT Concepts have specially been designed for industrial applications with smallest accesses or narrowest boreholes. The use of razor-thin single glass fibres allows to produce bundles with a particular high amount of pixels on confined space – the basis for high resolution images.
microFlex Fiberscopes are available in 7 different diameters - from 0.5mm to 1.8mm - and a working length of up to 2.0m. Custom-made versions are available on demand.
|
|
- Available diameters : 1,85 - 2,4 - 2,8 - 4,2 & 6,3 mm
- Optional side vision mirror tube 90°
- Compatible with photo & Video applications
- Short delivery times
Line of rigid endoscopes offering an exceptional brightness aand reliability for production costs lower than traditional manufacturing methods currently used.
The Ecofix line is available in 5 diameters and different working length. It accepts mirror tube 90° rotable on 360°.
|
|
GE Inspection Technologies brings you an array of VideoProbe® systems, a comprehensive offering of technologically advanced video borescopes that are diverse enough to meet your application-specific needs. Plug them in, turn them on—our VideoProbe systems are designed for ease of use while delivering video images of unsurpassed quality. Distinguished by an intuitive, patented joystick and one-handed operation, the VideoProbe systems feature an integrated LCD video display and a variety of imaging and measurement functions to meet your inspection needs. Engineered for durability and a vailable in many diameters and lengths, VideoProbes can be used for a wide range of industry applications.
|
|
|
|
|
|
iTool System
...the intelligent inspection system
The iTool System is made up of three components: the iTool Video Imaging Hub as the ima-
ging and documentation hub; the iSeries Videoscope; and the compact Case for transportation.
- Specifically developed for industrial applications
- Compact and portable
- Entire system weighs just 4.0kg
- Dynamic 180° articulation
- Sturdy and reliable
- Easily transported
The iSeries Videoscope with CCD image sensor provides a high-quality video signal and exceptional resolution. The videoscope's precise and extreme articulation allows you to manoeuvre it into any position you need.
With its intelligent software, the iTool Video Imaging Hub visualises inspection images
on the high-resolution TFT display and saves images at the touch of a button. With the
iTool, inspection images can be precisely marked and documented.
iCase and iCaseplus are clever and compact transportation solutions.
This mobile inspection system solution is uncomplicated to set up and easy to use.
Key Facts:
• Large, bright 6.8” TFT display
• On-Screen menu
• On-screen text generator
• Personalised camera control
• Image capture with audio commentary
• State of the art documentation functions
• Integrated 24W Metal Halide Light Source
• Rechargeable powerBelt
• maxhold holding device for iTool and iSeries Videoscope
• CCD camera technology
• Convenient one-handed operation
• Image capture button on handpiece
• Working lengths from: 1.0m – 15.0m
• Diameters of: 4.0mm, 6.0mm, 8.0mm
• Articulation: 2- br 4-way
• Custom-built versions available
|
|
|
|
|
|
iCapturesmartSystem
Extremely compact in size – light weight for maximum portabi-lity. The 580g of this lightweight imaging and documentation hub is barely noticeable when climbing or walking. The iCapturesmart enables a user to carry out inspections conveniently and effortlessly in remote or inaccessible places, or in confined spaces.
iCapture smart System - here, too, the tried-and-tested iSeries Videoscope is at the heart of each top-quality, clear, true-to-life inspection image. Together with the extremely portable, ultra-compact iCapturesmart imaging and documentation hub, it forms a high-performance system that is ideally suited for use in confined spaces or especially remote or inaccessible inspection environments. Thanks to its high-quality, heavy-duty shell and sturdy aluminium profiles, the ABS plastic system carrying case is extremely hard-wearing, making it well-suited for carrying your inspection system around.
A CCD image sensor is the vital centre of the Videoscope providing unsurpassed resolution and image clarity for true-to-life images with realistic colours. The Videoscopes feature handpiece camera control electronics. This means many different videoscopes can be used with a variety of imaging and documentation hubs. With their one-handed and user-friendly operation, the Videoscopes are well suited for use in the industrial work environment.
- Working length from 1.0-15.0m
- Diameters of 4.0mm, 6.0mm and 8.0mm
- Articulation choices are 2-way and 4-way.
- Bright 4.0 inch TFT display
- On-screen menu
- On-screen text generator
- Personalised camera control
- Extensive documentation features
- smart hold holding device t
|
|
In contrast to flexible endoscopes, images are displayed with a video chip.
The KARL STORZ VIDEOSCOPE offers maximum image quality and can be used in combination with all proven documentation units. In combination with other devices – for example with TECHNO PACK™ – endoscopic images can be easily stored, processed and displayed.
Designed for heavy-duty industrial applications, the VIDEOSCOPE is covered with a protective metal sleeve. The four-fold deflection of the distal end even permits views into inspection cavities that are difficult to access.
The VIDEOSCOPE features:
• High resolution CCD color chip
• 4-fold deflection on distal end
• 8 interchangeable lenses
• LCD color monitor detachable
• Different working lengths
• Ergonomic handle with integrated light transmission and video part
• 3 function keys directly on handel
|
|
Medigus specilaizers designing and manufacturing advanced endoscopy systems for third party companies using its proprietary technologies, such as its minitaure CCD video cameras for endoscopy.
Medigus designs various flexible, rigid and semi-rigid endoscopes for industrial, medical and veterinarian applications. Both reusbale and single-use designs are available.
The company has a platform technology for endoscopy which includes back end units for endoscopy comprising video processor units, light sources, and insufflation/irrigation pumps.
|
|
|
|
|
|
|
The SKF Endoscope TKES 1 is a small hand-held endoscope that consists of a display unit with a built-in battery pack and a flexible water-resistant 1-metre (3.3 ft) insertion tube of just 5.5 mm (0,22 in) diameter. At the end of the cord is a miniature camera and 4 LEDs that can be easily adjusted to illuminate the subject. To enable pipe walls and similar applications to be visualised, a 90 ° side view adapter is also included. The display unit can be set to one of four languages (more languages will be added) and up to 30,000 images or 4 hours of video can be stored on the SD card. No special software is required to view the images or videos. As well as being able to download the images and videos to a MS Windows® PC using the supplied USB cable, a TV out cable is supplied allowing the images and videos to be visualised on a TV or beamer. This is a great feature for using in meetings. The built-in battery pack can be recharged using the power adapter included and all items are packed in a compact lightweight carrying case.
|
|
|
|
