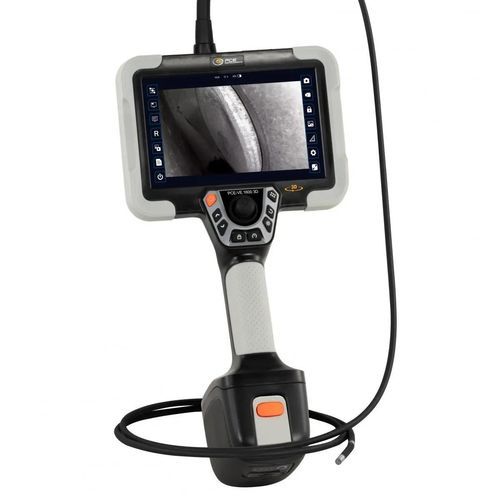

Flexible borescope PCE-VE 1600-3D

for 3D measurementhandheldwith IPS screen

Description
The PCE-VE 1600-3D inspection camera is a portable industrial system for high‑precision visual inspection and on‑site 3D measurements. It integrates a high‑resolution image sensor with a 7" IPS touchscreen to deliver detailed live images and recordings. Ideal for maintenance, quality control and special inspections across aerospace, automotive, energy and manufacturing sectors.

Key features

• Integrated 3D measurement function for distances, areas and cross-sections
• 7" IPS touchscreen, 1920 × 1200 pixel resolution
• 8× digital zoom and adjustable brightness (5 levels) up to 50 000 lx
• Front and side views with 360° probe control
• Dual-camera preview and picture-in-picture mode
• On-device PDF test report generation
• Image and video capture (JPG, MP4; additional PNG supported)
• Audio recording capability
• Storage: 16 GB internal + SD up to 128 GB
• Interfaces: HDMI, mini‑HDMI, USB‑A, USB‑C, 3.5 mm jack, Wi‑Fi
• Probe protection IP67, device protection IP65

Technical specifications

• Probe length: 3 m
• Camera resolution: 1 000 000 pixels
• Image/video resolution: 1280 × 720
• Probe diameter: 6 mm
• Probe material: tungsten braided
• Probe articulation: 360° / bending angle 190°
• Field of view: 120°; depth of field: 10–100 mm
• Display type: LCD touchscreen, 7" (1920 × 1200)
• Battery: 1 × 7.4 V Li‑ion pack, 6400 mAh — operating time approx. 4 h
• Operating conditions: -15 … 50 °C, 0 … 92 % r.H.
• Device dimensions (L × W × H): 370 × 195 × 150 mm; weight: 1013 g
• Power supply: 100 … 240 V AC (12 V, 3 A adapter included)

Package contents

• 1 × Inspection camera PCE-VE 1600-3D
• 1 × 3 m endoscope cable with motor control
• 1 × SD card 64 GB (included)
• 1 × USB 2.0 card reader
• 2 × batteries 7.4 V, 6400 mAh
• 1 × USB‑C cable 1 m
• 1 × Power adapter 12 V, 3 A
• 1 × Shoulder strap
• 1 × Carrying case
• 1 × User manual

Note
On‑device menu languages supported: German, English, French, Italian, Russian, Spanish, Polish, Korean, Japanese, Chinese.
