Flexible video endoscope PCE-VE 380N

for bore-hole inspectionfor pipe inspectionfor cameras

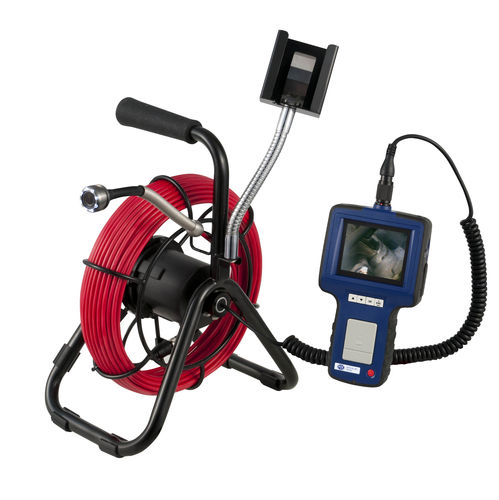

PCE-VE 380N is an industrial borescope or inspection camera with a handheld monitor that allows you to gain valuable visual insight into the inner workings of machines and other small spaces such as ventilation ducts, drainpipes and downpipes, sewer pipes, chimneys and more. Cable diameter28 mm / 1.11 in Cable length30 m / 98 ft Depth of field10 mm … ∞ / 0.4 in to infinity Field of view150.8° Bending radius90 mm / 3.54 in Illumination8 LEDs Image sensorCMOS / 640 x 480 Picture rate30 / sec. Display88.9 mm / 3.5 in TFT LCD monitor InterfaceMini USB 1.1 / AV out Storage optionsImage or video Storage8 GB memory card (can be increased to 32 GB) Compression formatMPEG 4 Picture formatJPEG (640 x 480) Video output formatNTSC / PAL Video formatASF (320 x 240) Operation and storage temperature-10 ... 60°C / 14 ... 140°F Voltage supplyRechargeable 3.7V lithium-ion battery Dimensions, handheld device207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in Weight, incl. carrying case9.98 kg / 22 lbs Protection type, cameraIP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft
