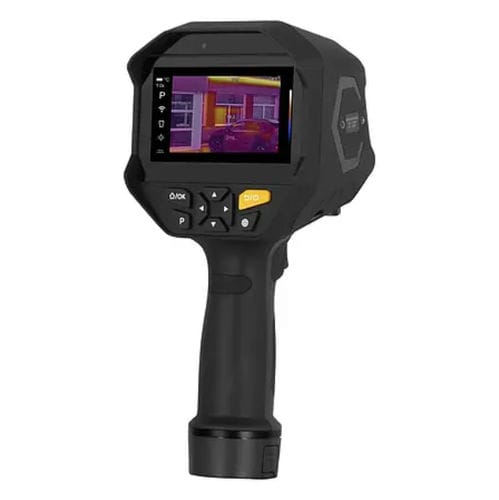

Inspection camera PCE-TC 37

digitalindustrialthermal

Description
Inspection camera with 4.3" LC touch display / IR resolution 640 x 512 px / 8 MP digital camera with image fusion / laser distance measurement / WLAN, USB-C and HDMI / 7 color palettes / replaceable battery

The inspection camera is designed for industrial inspections, maintenance, building services, electrical systems and service operations. With a temperature measurement range of -20 … +1200 °C, a resolution of 0.1 °C and an accuracy of ±2 °C or ±2% of reading, it enables precise recording of temperature distributions. The IR resolution of 640 x 512 pixels and thermal sensitivity of <40 mK at 25 °C allow detection of small temperature differences.

The camera includes an 8 MP digital camera with image fusion, picture-in-picture function and integrated illumination for low-light conditions. The 4.3" LC touch display with button controls provides comfortable operation. For distance determination the camera features a laser distance meter. The target distance can be set manually from 0.5 … 50 m. In addition, the device provides maximum and minimum temperature detection for quick localization of anomalies.

The adjustable emissivity range from 0.01 … 0.99 enables measurements on different materials. The camera operates in the 8 … 14 µm wavelength band with an image frequency of 50 Hz. Photos (JPG) and videos (MP4) can be recorded and stored. Internal memory of 32 GB can be extended via microSD up to 256 GB.

Data transfer and external display output are possible via WLAN, USB-C and mini-HDMI. Additional functions include PC software for thermal analysis, seven color palettes, automatic shutdown and optical/acoustic temperature alarms with adjustable upper and lower limits. Visual and acoustic alarms activate when set thresholds are reached. The inspection camera is suitable for thermal inspection of electrical installations, machines, buildings and HVAC systems.

Features

• Thermal imaging with 640 x 512 pixel IR resolution
• Temperature range -20 … +1200 °C
• Thermal sensitivity <40 mK at 25 °C
• 8 MP digital camera with image fusion and picture-in-picture
• Laser distance measurement
• Max./Min. temperature detection
• Temperature alarm with adjustable limits
• Photo and video recording (jpg, mp4)
• WLAN, USB-C and HDMI interfaces
• PC software for thermal analysis
• Adjustable emissivity 0.01 … 0.99

Delivery contents (short)

• 1 x Inspection camera PCE-TC 37
• 1 x Carrying case with shoulder strap
• 1 x PC software on USB stick
• 1 x 4K HDMI cable 1.2 m
• 1 x User manual
• 1 x Cleaning cloth
• 1 x Wrist strap
• 1 x USB-C cable

Characteristics / Specifications

• Temperature (range): -20 ... +1200 °C
• Temperature (resolution): 0.1 °C
• Temperature (accuracy): ±2 °C / ±2 % of reading
• Temperature (range °F): -4 ... +2192 °F
• Temperature (resolution °F): 0.18 °F
• Temperature (accuracy °F): ±3.6 °F / ±2 % of reading
• Infrared resolution: 640 x 512 pixels
• Units: °C, °F, K, m, ft
• Display type: LC touch display
• Display size: 4.3"
• Storage: Internal memory (32 GB)
• Expandable storage: via SD card up to 256 GB
• Interfaces: Micro SD card, USB-C, mini-HDMI, WLAN
• Camera resolution: 8 megapixel
• Operating time: 5 h
• Auto shutdown: 5 ... 60 min.
• Alarm: acoustic, visual
• Alarm modes: adjustable upper/lower limit
• Emissivity: 0.01 ... 0.99
• Lens: 25 mm
• Wavelength range: 8 ... 14 µm
• Field of view (FOV): IR 17.46° × 13.14°; digital camera D: 73° / H: 66° / V: 40°
• Color palettes: Iron, Rainbow, White hot, Black hot, Lava, High-contrast rainbow, Arctic
• Image/video format: jpg, mp4
• Measurement distance: 0.5 ... 40 m
• Thermal sensitivity: 40 mK
• Image frequency: 50 Hz
• Menu languages: DE, EN (US), EN (GB), FR, ES, PT, RU, CN, JP, KR, AR
• Protection class (device): IP54
• Power supply: 5 V DC
• Plug type: device - Euro plug
• Battery: 1 x 3.7 V internal lithium-ion
• Battery capacity: 5000 mAh
• Battery energy: 18.5 Wh
• Operating conditions: -10 ... 60 °C, 10 ... 90 % r.H.
• Storage conditions: -40 ... 85 °C, 10 ... 90 % r.H.
• Dimensions (L x W x H): 256 x 120 x 120 mm
• Weight: 785 g
