Semi-rigid borescope PCE-VE 40

for pipesfor pipe inspectionsmall-diameter

Description

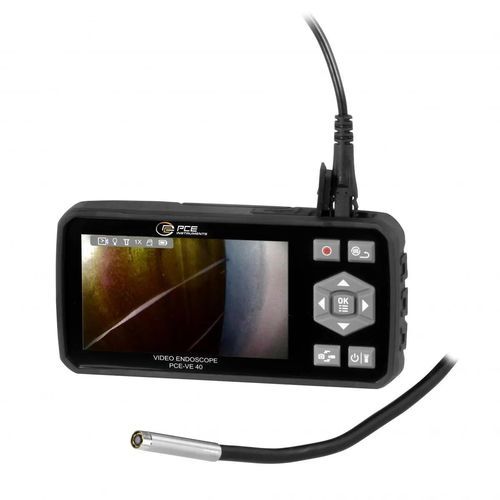

Inspection camera with LED illumination / photo and video recording / storage function / digital zoom / battery operation. The camera is designed for inspection of hard-to-reach areas such as engines, pipes, machines and cavities, enabling non-destructive visual checks without disassembly. It includes a 4.5" TFT color display (854 × 480 px) and an HD camera probe up to 1280 × 720 px. Images and videos can be recorded directly to a micro‑SD card, no external device required. An adjustable integrated LED light provides visibility in dark areas and a digital zoom (1×, 2×, 3×) allows closer inspection of details. The probe is IP67 rated for use in demanding environments. Various probe attachments (magnet, hook, mirror) are included to grasp objects or view lateral areas. Used by mechanics, technicians and maintenance teams to detect damage, blockages or wear quickly and reliably. Not for medical use.

Features

• Semi-rigid camera probe Ø 5.5 mm
• Camera resolution 1280 × 720
• Photo and video recording
• Digital zoom 1×, 2×, 3×
• 8 GB Micro‑SD card
• Probe attachments included

Delivery contents

• 1 × Inspection camera PCE-VE 40
• 1 × 3 m PVC gooseneck camera probe
• 1 × threaded cap for camera housing
• 1 × mirror attachment
• 1 × magnet attachment
• 1 × hook attachment
• 1 × USB-C cable
• 1 × carrying pouch
• 1 × 8 GB Micro SD card
• 1 × user manual

Specification
General technical data
Cable type: PVC
Cable length: 3 m
Display type: TFT color display
Display size: 4.5"
Display resolution: 854 × 480 px
Storage medium: Micro‑SD card
Storage capacity: 8 GB
Storage capacity (additional): up to 128 GB possible
Interface: USB-C
Camera resolution: 1280 × 720
Camera orientation: frontal 0°
Operating time: 3 h
Auto power-off: 30 … 120 min
Camera head diameter: 5.5 mm
Probe length: 32 mm
Probe material: metal
Probe movement: semi-rigid
Probe protection class: IP67
Field of view: 70°
Depth of field: 30 … 80 mm
Light source: 6 LEDs
Image / video format: mp4, jpg
Frame rate: 25 fps
Menu languages: English (US), English (GB), French, Spanish
Device protection class: IP67
Power supply: 5 V DC, 1.5 A
Battery: 1 × 3.7 V internal Lithium‑ion polymer
Battery capacity: 2000 mAh
Operating conditions: -10 … 50 °C, 0 … 85 % r. H.
Storage conditions: -20 … 60 °C, 0 … 85 % r. H.
Dimensions (L × W × H): 35 × 170 × 83 mm
Weight: 250 g

Characteristics / Specifications

• Cable type: PVC
• Cable length: 3 m
• Display: 4.5" TFT, 854 × 480 px
• Camera: 1280 × 720 px, frontal 0°
• Probe diameter: 5.5 mm
• Probe length: 32 mm
• Probe material: metal
• Probe movement: semi-rigid
• Protection class (probe/device): IP67
• Memory: 8 GB Micro‑SD (up to 128 GB possible)
• Interface: USB-C
• Image/video format: jpg / mp4, 25 fps
• Digital zoom: 1×, 2×, 3×
• Illumination: 6 adjustable LEDs
• Battery operating time: approx. 3 h (2000 mAh)
• Dimensions: 35 × 170 × 83 mm
• Weight: 250 g
