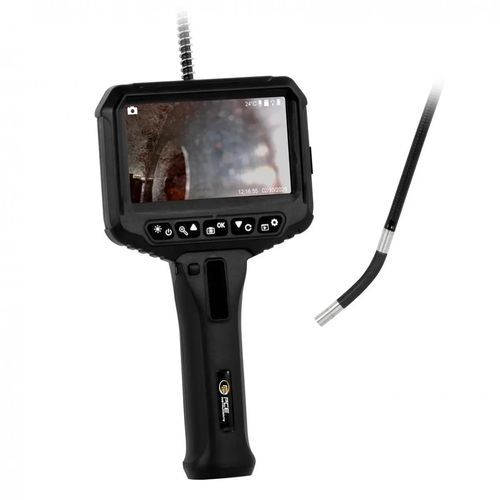

Flexible videoscope PCE-VE 100N

semi-rigidfor camerasUSB

The Inspection Camera PCE-VE 100N is a state-of-the-art video inspection tool designed for professional visual inspections in hard-to-reach places. It features an extremely slim design and advanced recording functions for maximum precision. The camera probe, only 6.2 mm in diameter, offers flexible 2-way articulation for precise control, enabling inspection of hidden angles and side walls. Six bright, individually adjustable LEDs ensure optimal illumination. The device captures sharp images and videos in Full HD (1920 x 1080), storing them on a supplied 32 GB micro SD card. Its robust 1-meter semi-rigid cable allows easy insertion into narrow spaces, while a 4x digital zoom and image rotation function enhance detailed analysis. The integrated microphone, battery operation, and included carrying case make it practical and portable.

Highlights

• 2-way camera probe Ø6.2 mm / 0.24 in
• Image and video recording
• Maximum resolution: 1920 x 1080
• 32 GB micro SD card included
• Integrated microphone in the device

Specifications

• Type of cable: semi-rigid
• Cable length: 1 m
• Display type: IPS
• Display size: 4.3 inch
• Display resolution: 480 x 272 pixels
• Storage medium: Micro SD card
• Storage capacity: 32 GB
• Interface: USB-C
• Camera resolution (JPG): 640x480 / 1280x720 / 1920x1080
• Operating time: 4 h
• Camera head diameter: 6.2 mm
• Camera probe length: 60 mm
• Camera probe material: Metal
• Camera probe movement: 2-way
• Protection class camera probe: IP67
• Field of vision: 90°
• Depth of field of vision: 15 ... 100 mm
• Bending angle: 210°
• Bending radius: 30 mm
• Image / video format: JPG
• Menu language: German, English (GB), English, Chinese, Japanese, Russian, French, Polish, Spanish, Italian
• Protection class (device): IP42
• Power supply: 5V DC (USB-C)
• Rechargeable battery: 1 x 3.7 V internal, Lithium-ion battery
• Battery capacity: 2200 mAh
• Operating conditions: -10 ... 50 °C, 0 ... 90 % RH
• Storage conditions: -10 ... 50 °C, 0 ... 90 % RH
• Dimensions (L x W x H): 225 x 125 x 50 mm
• Weight: 431 g

Delivery Scope

• 1 x PCE-VE 100N Inspection Camera
• 1 x Cleaning cloth
• 1 x USB-C cable
• 1 x Carrying case
