Properties
2-diagonally square and round braids for static applications
Diameter
round, square, rectangular
Dimensions
5 - 60 mm square
up to 110 mm on request
|
|
|
|
|
|
Hollow braidings and accessories
Braidings in different materials; plastic or metal
Applications
- for cable bunching
- as mechanical protection against abrasion
- for electrical installations and highly flexible applications
Properties
- good protection against abrasion
- easy retraction of cables
- variable inner diameter
- partically good screening factor (EMC)
- highly flexible
up to IP 40 to EN/ IEC 60529
Temperature Range
from -55 °C up to +250 °C
Construction and material
- Braiding in different materials: tinned copper wire, galvanized steel wire or plastic (PA 6, polyester)
Accessories
NORRES offers a wide and harmonious range of accessories geared to the needs of the marketplace for its many cable protection conduits and systems, as counter nuts in plastic or metal, plastic enlargements, blind plugs or screwed adapter. Norres can supply not only all standard accessories but also customised solutions. In the unlikely event that you are seeking a product we do not already stock, please do not hesitate to contact us. Our R&D and Engineering departments strive to reconcile users’ expresses needs with the latest technical advances to evolve the optimal solution for every application.
|
|
|
Insulating fiber glass braided sleeving with acrylic coating; temperature CLASS F, 155°C, dielectrical strenght 3kV
|
|
3M™ Nextel™ Braided Ceramic Sleeving is available in diameters to meet the needs of most applications. It is readily cut to length.
Frequently used in electrical thermocouple insulation, our ceramic sleeving offers the same reliability and quality you'll find throughout our entire line of ceramic fabrics. Whether covering hoses and cables in aircraft, or insulating heater wires and protecting fire zone cables, there's a sleeving diameter to meet your needs.
|
|
VERSAFLEX
Versaflex sleeving is suited for the mechanical protection of wire harnesses, hoses, and all other applications where exceptional flexibilty combined with superior abrasion/vut resistance is required.
FEATURES:
- Flame retardant version available (VERSAFLEX-FR)
- Flexible
- Lightweight
- Fungus proof
- Not affected by most chemical and solvents, non-hygroscopic
- Wide range of sizes
Agency Recognition
- RoHS
- UL (VERSAFLEX-FR)
|
|
Our insulation sleevings are either braided or knitted, like our sealing ropes and tapes. They may be coated with synthetic rubbers or resins allowing the design to be varied to meet end-user repuirements. Our thermal insulations are characterised by having excellent insulating properties as well as a high degree of flexibility.
Decades of experience in many manufacturing processes acquired in the production of industrial textiles have resulted in a wide range of thermal insulations which can be reinforced with glass yarns or stainless steel wire, and, where desirable, be coated with silicone rubber to give enhanced mechanical and dimensional stability as well as excellent sealing properties.
|
|
Glass fibre braided sleeving with polyurethane varnish; Class F
155°C
|
|
|

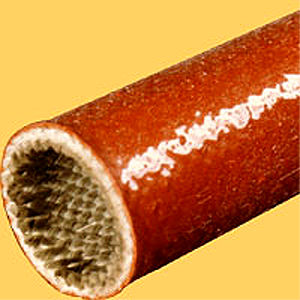

Glass fibre braided sleeving coated with silicone rubber
|
|
Single-Ply, Silicone-Coated Woven Fiberglass Hose
Applications of Flexfab's single ply silicone coated woven fiberglass hose...
Recommended for low pressure handling of higher and lower temperature air, dust or fumes
Ideal for heating applications where minimum weight is required, and where air flow and friction requirements are not severe
Good for heater applications
Not recommended for handling liquids or abrasive materials.
Construction of Flexfab's single ply silicone coated woven fiberglass hose...
Flexible. Chemically treated, helically wound, bronze plated, spring steel wire reinforcement. Silicone-coated woven fiberglass fabric covering. Continuous filament fiberglass cord between coils. Heat-vulcanized for maximum rubber-to-wire bond. Lightweight, non-kinking, easy installation. Meets commercial low temperature flexibility. Temperature range -65°F to +450°F (-54°C to +232°C).
|
|
| ... products without technical information |
| |
Properties
2-diagonally square and round braids for static applications
Diameter
round, square, rectangular
Dimensions
5 - 60 mm square
up to 110 mm on request
|
|
|
|
|
|
Hollow braidings and accessories
Braidings in different materials; plastic or metal
Applications
- for cable bunching
- as mechanical protection against abrasion
- for electrical installations and highly flexible applications
Properties
- good protection against abrasion
- easy retraction of cables
- variable inner diameter
- partically good screening factor (EMC)
- highly flexible
up to IP 40 to EN/ IEC 60529
Temperature Range
from -55 °C up to +250 °C
Construction and material
- Braiding in different materials: tinned copper wire, galvanized steel wire or plastic (PA 6, polyester)
Accessories
NORRES offers a wide and harmonious range of accessories geared to the needs of the marketplace for its many cable protection conduits and systems, as counter nuts in plastic or metal, plastic enlargements, blind plugs or screwed adapter. Norres can supply not only all standard accessories but also customised solutions. In the unlikely event that you are seeking a product we do not already stock, please do not hesitate to contact us. Our R&D and Engineering departments strive to reconcile users’ expresses needs with the latest technical advances to evolve the optimal solution for every application.
|
|
3M™ Nextel™ Braided Ceramic Sleeving is available in diameters to meet the needs of most applications. It is readily cut to length.
Frequently used in electrical thermocouple insulation, our ceramic sleeving offers the same reliability and quality you'll find throughout our entire line of ceramic fabrics. Whether covering hoses and cables in aircraft, or insulating heater wires and protecting fire zone cables, there's a sleeving diameter to meet your needs.
|
|
VERSAFLEX
Versaflex sleeving is suited for the mechanical protection of wire harnesses, hoses, and all other applications where exceptional flexibilty combined with superior abrasion/vut resistance is required.
FEATURES:
- Flame retardant version available (VERSAFLEX-FR)
- Flexible
- Lightweight
- Fungus proof
- Not affected by most chemical and solvents, non-hygroscopic
- Wide range of sizes
Agency Recognition
- RoHS
- UL (VERSAFLEX-FR)
|
|
