Cable protector with external metal braiding CTPAS series

galvanised steelpolyamide

Overview

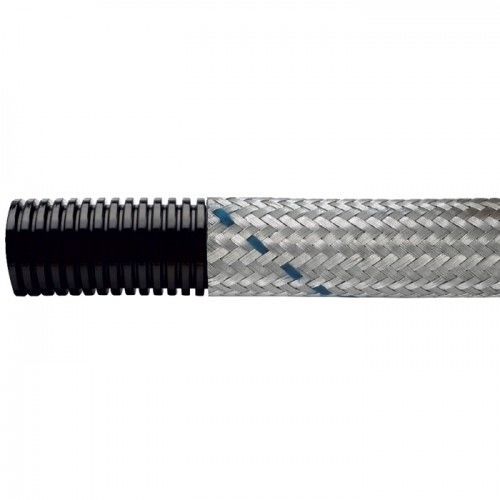

Galvanised steel wire overbraiding on polyamide spiral conduits. Stainless steel overbraiding available on request.

Protection & Temperature
Protection class: IP65
Temperature range: -40 °C to +120 °C

Key properties

• High impact strength
• High abrasion resistance
• Full-shrink packing
• Halogen free
• Self extinguishing
• Apply with either CTPAS fixed or swivel fittings
• Compatible with LSRPAG, LSRN - LSRP, LSRPD, LSRND or Ex MLSRN type flexible spiral conduit fittings

Applications & Compatibility
Designed for industrial cable protection where mechanical shielding and flexibility are required. Suitable for routing and protection of electrical harnesses in machinery, control cabinets and equipment that require IP65 protection. Compatible with standard CTPAS fixed and swivel installation accessories and a range of LSR/Ex fittings.

Technical Data (codes and dimensions)
CTPAS 7 | d 6,5 mm | d1 12 mm | Roll Length 100 mt.
CTPAS 8,5 | d 8,5 mm | d1 14 mm | Roll Length 100 mt.
CTPAS 9 | d 10 mm | d1 15 mm | Roll Length 100 mt.
CTPAS 11 | d 12 mm | d1 17,8 mm | Roll Length 50 mt.
CTPAS 13,5 | d 14,2 mm | d1 20,4 mm | Roll Length 50 mt.
CTPAS 16 | d 16,5 mm | d1 23,2 mm | Roll Length 50 mt.
CTPAS 21 | d 23 mm | d1 30,4 mm | Roll Length 50 mt.
CTPAS 29 | d 29 mm | d1 36,5 mm | Roll Length 25 mt.
CTPAS 36 | d 36 mm | d1 44,5 mm | Roll Length 25 mt.
CTPAS 48 | d 48 mm | d1 56,5 mm | Roll Length 25 mt.
