PA6 cable gland MLSRN series
nitrile butadiene rubber (NBR)brassaluminium

PA6 cable gland - MLSRN series - ORTAC - nitrile butadiene rubber (NBR) / brass / aluminium
PA6 cable gland - MLSRN series - ORTAC - nitrile butadiene rubber (NBR) / brass / aluminium
PA6 cable gland - MLSRN series - ORTAC - nitrile butadiene rubber (NBR) / brass / aluminium - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
PA6, nitrile butadiene rubber (NBR), brass, aluminium, nickel-plated brass
Protection level
liquid-tight, IP67
Other characteristics
swivel, with spiral flex protector, strain relief, NPT
Cable diameter

Max.: 70 mm
(2.76 in)

Min.: 3 mm
(0.12 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

Product overview

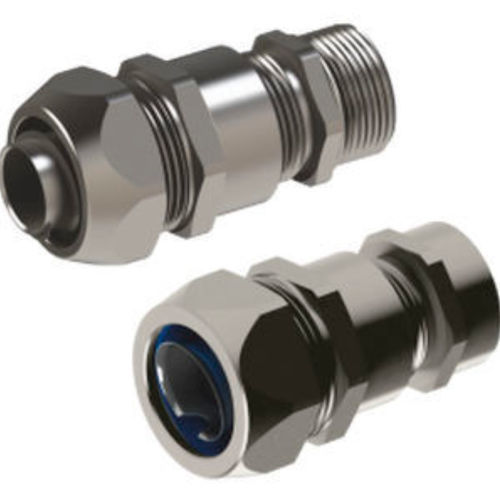

Liquid-tight spiral conduit fittings MLSRN (male) and MLSRND (female) for NPT threaded connections, with integrated cable holder. Suitable for installation on conduit entries where IP67 sealing and compatibility with spiral conduits are required. Fixed and swivel body versions available.

Materials & components
  • Cap nut: Brass with nickel plating
  • Clamping insert: PA6
  • Sealing ring: TPV
  • Ring: Polyethylene
  • Ferrule: Aluminium or brass
  • Gland body: Brass with nickel plating
  • O-ring: NBR


Technical features
  • Connection thread: NPT ANSI B1.20.1
  • Protection class: IP67
  • Temperature range: -30 °C to +100 °C
  • Easy to assemble
  • Versions: Fixed or swivel body
  • Special sizes: Available on request


Available sizes (selection)
Codes MLSRN / MLSRND 00 to 10 covering spiral measures from 10 (≈1/4") up to 102 (≈4"); overall length and clamping ranges vary by code. Cable diameter ranges approximately from 3–6.5 mm up to 60–70 mm depending on model.

Applications
  • Electrical installations in industrial machinery
  • Control cabinets and panels
  • Outdoor and harsh-environment routing requiring IP67 sealing
  • New-build and retrofit conduit assemblies
