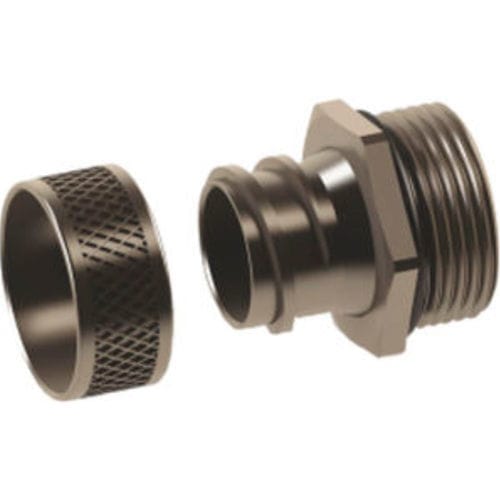

Nickel-plated brass cable gland MMR 12
nitrile butadiene rubber (NBR)IP54with spiral flex protector

Nickel-plated brass cable gland - MMR 12 - ORTAC - nitrile butadiene rubber (NBR) / IP54 / with spiral flex protector
Nickel-plated brass cable gland - MMR 12 - ORTAC - nitrile butadiene rubber (NBR) / IP54 / with spiral flex protector
Nickel-plated brass cable gland - MMR 12 - ORTAC - nitrile butadiene rubber (NBR) / IP54 / with spiral flex protector - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
nitrile butadiene rubber (NBR), nickel-plated brass
Protection level
IP54
Other characteristics
PG thread, metric, with spiral flex protector, threaded, swivel
Cable diameter

Max.: 46 mm
(1.81 in)

Min.: 6 mm
(0.24 in)

Thread diameter

Max.: 63 mm
(2.48 in)

Min.: 12 mm
(0.47 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

Product name
Flexible Spiral Conduit Fittings — Fixed body MMR series

General information
Ring: Brass with nickel plated
Fixed gland body: Brass with nickel plated
O-ring: NBR
Connection thread: Metric (EN60423) / PG (DIN 40430)
Protection class: IP54
Temperature range: -30 °C +100 °C
Properties: Easy to assemble
Versions: Fixed or swivel body versions
Compatibility: Apply with either OCGS, OPCGS or OPCHF conduits

Technical Data - Metric / PG Thread Fixed Body
Thread | Code | H mm. | GL mm. | L mm. | D mm. | Wrench mm. | E mm.
M 12 x 1,5 | MMR 12 | 24 | 8 | 13 | 6 | 15 | 7,5 x 11,5
M 16 x 1,5 | MMR 16 | 24 | 8 | 13 | 7 | 20 | 9 x 13
M 16 x 1,5 | MMR 116 | 26 | 10 | 13 | 9 | 20 | 11 x 15
M 20 x 1,5 | MMR 20 | 26 | 10 | 13 | 12 | 22 | 14 x 18
M 20 x 1,5 | MMR 120 | 26 | 10 | 13 | 14 | 22 | 16 x 20
M 25 x 1,5 | MMR 25 | 27 | 10 | 13 | 18 | 28 | 21 x 25
M 32 x 1,5 | MMR 32 | 31 | 12 | 15 | 23 | 35 | 26 x 31
M 40 x 1,5 | MMR 40 | 36 | 14 | 17 | 33,5 | 45 | 37 x 42
M 50 x 1,5 | MMR 50 | 36 | 14 | 17 | 37 | 55 | 40 x 45
M 63 x 1,5 | MMR 63 | 36 | 14 | 17 | 46 | 65 | 51 x 56

PG 7 | MPR 7 | 24 | 8 | 13 | 6 | 15 | 7,5 x 11,5
PG 9 | MPR 9 | 24 | 8 | 13 | 7 | 17 | 9 x 13
PG 11 | MPR 11 | 26 | 10 | 13 | 9 | 20 | 11 x 15
PG 13,5 | MPR 13,5 | 26 | 10 | 13 | 12 | 22 | 14 x 18
PG 16 | MPR 16 | 26 | 10 | 13 | 14 | 24 | 16 x 20
PG 21 | MPR 21 | 27 | 10 | 13 | 18 | 30 | 21 x 25
PG 29 | MPR 29 | 31 | 12 | 15 | 23 | 40 | 26 x 31
PG 36 | MPR 36 | 36 | 14 | 17 | 33,5 | 50 | 37 x 42
PG 42 | MPR 42 | 36 | 14 | 17 | 37 | 60 | 40 x 45
PG 48 | MPR 48 | 36 | 14 | 17 | 46 | 65 | 51 x 56

Features / Technical specifications
  • Material - Ring: Brass with nickel plated
  • Material - Fixed gland body: Brass with nickel plated
  • O-ring material: NBR
  • Connection thread standards: Metric (EN60423) and PG (DIN 40430)
  • Protection rating: IP54
  • Operating temperature range: -30 °C to +100 °C
  • Assembly: Easy to assemble
  • Available versions: Fixed body and swivel body
  • Compatible conduits: OCGS, OPCGS, OPCHF
  • Detailed dimensional table included above (Thread, Code, H, GL, L, D, Wrench, E)
