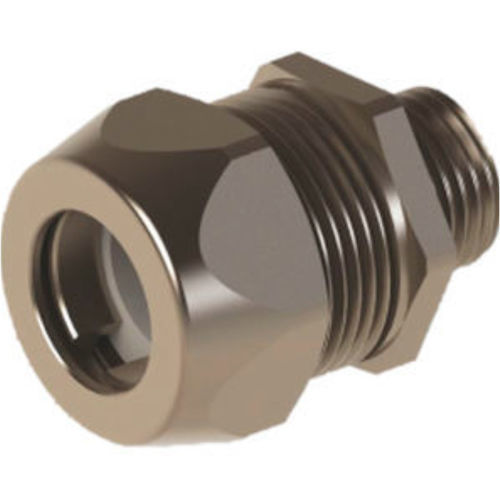

Nickel-plated brass cable gland LSRPAG 13-PG9

nitrile butadiene rubber (NBR)PA6brass

Product overview
Plastic conduit fittings for steel wire over-braiding available in fixed (LSRPAG series) and swivel (LSRDPAG series) body versions. Designed for quick assembly on Tacflex/CTPAS conduits and providing IP67 ingress protection for industrial electrical and cable installations.

Materials / Basic construction
Cap nut: Brass with nickel plating
Conduit holder: PA6
Armour clamp: Brass
Gland body: Brass with nickel plating
O-ring: NBR
Connection thread: Metric (EN60423) / PG (DIN 40430)
Protection class: IP67
Temperature range: -30 °C to +100 °C

Properties

• Quick and reliable assembly on steel-wire over-braided plastic conduits
• Available in fixed or swivel body configurations to suit installation needs
• Compatible with CTPAS conduit sizes listed in the technical table

Technical data - Codes and dimensions (fixed body)
Code (PG) | Code (Metric) | PG | Metric thread | Spiral Measure | GL mm | B mm | C mm
LSRPAG 13-PG9 | LSRPAG 13-M16 | PG 9 | M 16 x 1,5 | CTPAS-09 | 10 | 24 | 26
LSRPAG 15-PG11 | LSRPAG 15-M16 | PG 11 | M 16 x 1,5 | CTPAS-11 | 10 | 28 | 30
LSRPAG 18-PG13,5 | LSRPAG 18-M20 | PG13,5 | M 20 x 1,5 | CTPAS-13,5 | 10 | 32 | 35
LSRPAG 21-PG16 | LSRPAG 21-M20 | PG 16 | M 20 x 1,5 | CTPAS-16 | 10 | 35 | 35
LSRPAG 28-PG21 | LSRPAG 28-M25 | PG 21 | M 25 x 1,5 | CTPAS-21 | 14 | 45 | 45
LSRPAG 34-PG29 | LSRPAG 34-M32 | PG 29 | M 32 x 1,5 | CTPAS-29 | 15 | 50 | 50
LSRPAG 42-PG36 | LSRPAG 42-M40 | PG 36 | M 40 x 1,5 | CTPAS-36 | 15 | 60 | 60
LSRPAG 54-PG42 | LSRPAG 54-M50 | PG 42 | M 50 x 1,5 | CTPAS-48 | 15 | 70 | 75
LSRPAG 54-PG48 | LSRPAG 54-M63 | PG 48 | M 63 x 1,5 | CTPAS-48 | 15 | 70 | 75

Technical data - Codes and dimensions (swivel body)
Code (PG) | Code (Metric) | PG | Metric thread | Spiral Measure | GL mm | B mm | C mm
LSRDPAG 13-PG9 | LSRDPAG 13-M16 | PG 9 | M 16 x 1,5 | CTPAS-09 | 10 | 24 | 26
LSRDPAG 15-PG11 | LSRDPAG 15-M16 | PG 11 | M 16 x 1,5 | CTPAS-11 | 10 | 28 | 30
LSRDPAG 18-PG13,5 | LSRDPAG 18-M20 | PG13,5 | M 20 x 1,5 | CTPAS-13,5 | 10 | 32 | 35
LSRDPAG 21-PG16 | LSRDPAG 21-M20 | PG 16 | M 20 x 1,5 | CTPAS-16 | 10 | 35 | 35
LSRDPAG 28-PG21 | LSRDPAG 28-M25 | PG 21 | M 25 x 1,5 | CTPAS-21 | 14 | 45 | 45
LSRDPAG 34-PG29 | LSRDPAG 34-M32 | PG 29 | M 32 x 1,5 | CTPAS-29 | 15 | 50 | 50
LSRDPAG 42-PG36 | LSRDPAG 42-M40 | PG 36 | M 40 x 1,5 | CTPAS-36 | 15 | 60 | 60
LSRDPAG 54-PG42 | LSRDPAG 54-M50 | PG 42 | M 50 x 1,5 | CTPAS-48 | 15 | 70 | 75
LSRDPAG 54-PG48 | LSRDPAG 54-M63 | PG 48 | M 63 x 1,5 | CTPAS-48 | 15 | 70 | 75

Characteristics / technical specifications

• Cap nut material: Brass with nickel plating
• Gland body material: Brass with nickel plating
• Armour clamp: Brass
• Conduit holder: PA6
• O-ring: NBR
• Protection class: IP67
• Operating temperature range: -30 °C to +100 °C
• Connection threads: Metric (EN60423) and PG (DIN 40430)
• Available in fixed (LSRPAG series) and swivel (LSRDPAG series) body versions
• Compatible with CTPAS conduit sizes as listed in the technical table
