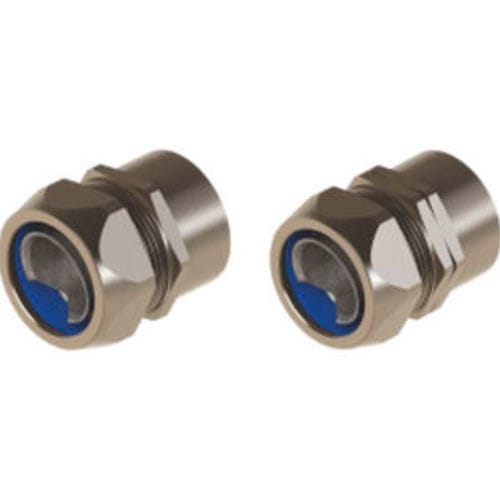

Flexible Spiral Conduit Fittings Liquid Tight Female Type NPT Fixed & Swivel — LSRND / LSRDND series

Materials and Components

• Cap nut: Brass with nickel plated
• Ring: PA6
• Ferrule: Aluminium / brass
• Gland body: Brass with nickel plated
• O-ring: NBR

Connection & Protection
Connection thread: Metric (EN60423) / PG (DIN 40430)
Protection class: IP67 (dust tight and protected against temporary immersion)
Temperature range: -45 °C +105 °C

Technical Data — NPT / FIXED BODY
Code | NPT Thread | Spiral Measure | GL mm. | B mm. | C mm.
LSRND 00 | 1/4" | LGT10 - 1/4" | 10 | 20 | 22
LSRND 01 | 3/8" | LGT13 - 3/8" | 11,5 | 24 | 26
LSRND 02 | 1/2" | LGT16 - 1/2" | 13 | 27 | 29
LSRND 03 | 3/4" | LGT21 - 3/4" | 15 | 33 | 35
LSRND 04 | 1" | LGT27 - 1" | 15 | 43 | 45
LSRND 05 | 1 1/4" | LGT35 - 1 1/4" | 16 | 52 | 54
LSRND 06 | 1 1/2" | LGT40 - 1 1/2" | 18 | 60 | 63
LSRND 07 | 2" | LGT51 - 2" | 20 | 74 | 77
LSRND 08 | 2 1/2" | LGT63 - 2 1/2" | 20 | 90 | 90
LSRND 09 | 3" | LGT78 - 3" | 24 | 105 | 110
LSRND 10 | 4" | LGT102 - 4" | 30 | 136 | 140

Technical Data — SWIVEL BODY
Code | NPT Thread | Spiral Measure | GL mm. | B mm. | C mm.
LSRDND 00 | 1/4" | LGT10 - 1/4" | 10 | 20 | 22
LSRDND 01 | 3/8" | LGT13 - 3/8" | 11,5 | 24 | 26
LSRDND 02 | 1/2" | LGT16 - 1/2" | 13 | 27 | 29
LSRDND 03 | 3/4" | LGT21 - 3/4" | 15 | 33 | 35
LSRDND 04 | 1" | LGT27 - 1" | 15 | 43 | 45
LSRDND 05 | 1 1/4" | LGT35 - 1 1/4" | 16 | 52 | 54
LSRDND 06 | 1 1/2" | LGT40 - 1 1/2" | 18 | 60 | 63
LSRDND 07 | 2" | LGT51 - 2" | 20 | 74 | 77
LSRDND 08 | 2 1/2" | LGT63 - 2 1/2" | 20 | 90 | 90
LSRDND 09 | 3" | LGT78 - 3" | 24 | 105 | 110
LSRDND 10 | 4" | LGT102 - 4" | 30 | 136 | 140

Features / Technical specifications

• Product type: Flexible spiral conduit fittings, liquid tight, female type, NPT, fixed & swivel options
• Cap nut material: Brass with nickel plating
• Ring material: PA6 (polyamide 6)
• Ferrule material: Aluminium or brass
• Gland body material: Brass with nickel plating
• O-ring: NBR
• Connection threads supported: Metric (EN60423) and PG (DIN 40430)
• Protection class: IP67
• Operating temperature range: -45 °C to +105 °C
• Available codes/sizes: LSRND / LSRDND series covering 1/4" up to 4" with corresponding spiral measures LGT10 to LGT102
