Nitrile butadiene rubber (NBR) cable gland MLSRP 00

PA6aluminiumbrass

Product

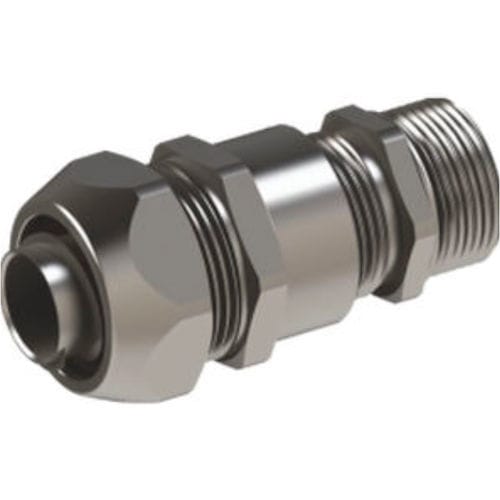

Liquid-tight spiral conduit fittings with integrated cable holder, suitable for liquid-tight spiral conduits. Available in fixed or swivel body versions and compatible with Metric (EN60423) and PG (DIN 40430) threads.

Materials / Components

• Cap nut: Brass, nickel plated
• Clamping insert: PA6
• Sealing ring: TPV
• Ring: Polyethylene
• Ferrule: Aluminium / brass
• Gland body: Brass, nickel plated
• O-ring: NBR

General properties

• Connection thread: Metric (EN60423) / PG (DIN 40430)
• Protection class: IP67
• Temperature range: -30 °C to +100 °C
• Assembly: Easy to assemble
• Versions: Fixed or swivel body
• Special sizes: Available on request
• Application: Use with LGT, LGTHF, CTS or CTPS conduits

Technical table (PG thread - MLSRP series)
Code | AG Thread | Spiral Measure | GL mm. | B mm. | C mm. | D mm. | Cables mm.
MLSRP 00 | PG 7 | 10 - 1/4" | 6 | 20 | 22 | 14 | 3-6,5
MLSRP 1A | PG 9 | 10 - 1/4" | 6 | 20 | 22 | 17 | 4-8
MLSRP 01 | PG 11 | 13 - 3/8" | 6 | 24 | 26 | 20 | 5-10
MLSRP 2A | PG 13,5 | 16 - 1/2" | 6,5 | 27 | 29 | 22 | 6-12
MLSRP 02 | PG 16 | 16 - 1/2" | 6,5 | 27 | 29 | 24 | 10-14
MLSRP 03 | PG 21 | 21 - 3/4" | 7 | 33 | 35 | 30 | 13-18
MLSRP 04 | PG 29 | 26 - 1" | 8 | 43 | 45 | 40 | 18-25
MLSRP 05 | PG 36 | 35 - 1 1/4" | 10 | 52 | 54 | 50 | 22-32
MLSRP 06 | PG 42 | 40 - 1 1/2" | 12 | 60 | 63 | 57 | 30-38
MLSRP 07 | PG 48 | 51 - 2" | 14 | 74 | 77 | 64 | 33-44

Technical table (Metric fixed body - MLSRM series)
Code | AG Thread | Spiral Measure | GL mm. | B mm. | C mm. | D mm. | Cables mm.
MLSRM 00 | M 12 x 1,5 | 10 - 1/4" | 6 | 20 | 22 | 14 | 3-6,5
MLSRM 1A | M 16 x 1,5 | 10 - 1/4" | 7 | 20 | 22 | 18 | 4-8
MLSRM 01 | M 16 x 1,5 | 13 - 3/8" | 7 | 24 | 26 | 18 | 4-8
MLSRM 02 | M 20 x 1,5 | 16 - 1/2" | 8 | 27 | 29 | 22 | 6-12
MLSRM 03 | M 25 x 1,5 | 21 - 3/4" | 8 | 33 | 35 | 27 | 4-10
MLSRM 04 | M 32 x 1,5 | 26 - 1" | 9 | 43 | 45 | 34 | 13-18
MLSRM 05 | M 40 x 1,5 | 35 - 1 1/4" | 9 | 52 | 54 | 43 | 18-25
MLSRM 06 | M 50 x 1,5 | 40 - 1 1/2" | 9 | 60 | 63 | 55 | 22-32
MLSRM 07 | M 63 x 1,5 | 51 - 2" | 14 | 74 | 77 | 68 | 33-44
MLSRM 08 | M 72 x 1,5 | 63 - 2 1/2" | 20 | 90 | 90 | 85 | 45-55
MLSRM 09 | M 75 x 1,5 | 78 - 3" | 20 | 105 | 110 | 90 | 50-63
MLSRM 10 | M 100 x 2 | 102 - 4" | 20 | 136 | 140 | 100 | 60-70

Notes
Swivel body versions are available as well.

Technical specifications

• Cap nut: Brass, nickel plated
• Clamping insert: PA6
• Sealing ring: TPV
• Ring: Polyethylene
• Ferrule: Aluminium / brass
• Gland body: Brass, nickel plated
• O-ring: NBR
• Connection thread options: Metric (EN60423) and PG (DIN 40430)
• Protection class: IP67
• Temperature range: -30 °C to +100 °C
• Versions: Fixed or swivel body
• Compatible conduits: LGT, LGTHF, CTS, CTPS
