Flexible corrugated tube connector LSRN series

Flexible corrugated tube connector - LSRN series - ORTAC
Flexible corrugated tube connector - LSRN series - ORTAC

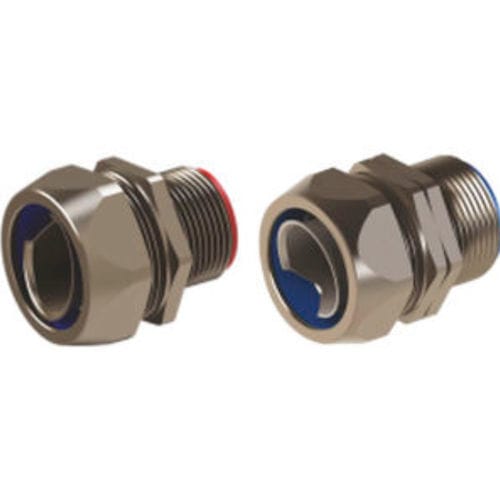

Flexible corrugated tube connector - LSRN series - ORTAC - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Tube type
flexible
Size

Min.: 10 mm
(0.39 in)

Max.: 30 mm
(1.18 in)

Description

Product
Flexible spiral conduit fittings for liquid-tight NPT connections. Available in Fixed (LSRN series) and Swivel (LSRDN series) body versions for use with spiral conduits LGT, CTS and CTPS.

Materials and components
  • Cap nut: Brass, nickel plated
  • Ring: PA6
  • Ferrule: Aluminium or brass
  • Gland body: Brass, nickel plated
  • O-ring: NBR


Key features
  • Connection thread: NPT ANSI B1.20.1
  • Ingress protection: IP67 (liquid-tight)
  • Operating temperature: -45 °C to +105 °C
  • Easy to assemble
  • Available in fixed (LSRN) and swivel (LSRDN) body versions
  • Compatible with LGT, CTS and CTPS spiral conduits


Codes and dimensions (Fixed body)
Header: Code | AG Thread NPT | Spiral Measure | GL mm | B mm | C mm
LSRN 00 | 1/4 in | LGT10 - 1/4 in | 10 | 20 | 22
LSRN 01 | 3/8 in | LGT13 - 3/8 in | 11.5 | 24 | 26
LSRN 02 | 1/2 in | LGT16 - 1/2 in | 13 | 27 | 29
LSRN 03 | 3/4 in | LGT21 - 3/4 in | 15 | 33 | 35
LSRN 04 | 1 in | LGT27 - 1 in | 15 | 43 | 45
LSRN 05 | 1 1/4 in | LGT35 - 1 1/4 in | 16 | 52 | 54
LSRN 06 | 1 1/2 in | LGT40 - 1 1/2 in | 18 | 60 | 63
LSRN 07 | 2 in | LGT51 - 2 in | 20 | 74 | 77
LSRN 08 | 2 1/2 in | LGT63 - 2 1/2 in | 20 | 90 | 90
LSRN 09 | 3 in | LGT78 - 3 in | 24 | 105 | 110
LSRN 10 | 4 in | LGT102 - 4 in | 30 | 136 | 140

Codes and dimensions (Swivel body)
Header: Code | AG Thread NPT | Spiral Measure | GL mm | B mm | C mm
LSRDN 00 | 1/4 in | LGT10 - 1/4 in | 10 | 20 | 22
LSRDN 01 | 3/8 in | LGT13 - 3/8 in | 11.5 | 24 | 26
LSRDN 02 | 1/2 in | LGT16 - 1/2 in | 13 | 27 | 29
LSRDN 03 | 3/4 in | LGT21 - 3/4 in | 15 | 33 | 35
LSRDN 04 | 1 in | LGT27 - 1 in | 15 | 43 | 45
LSRDN 05 | 1 1/4 in | LGT35 - 1 1/4 in | 16 | 52 | 54
LSRDN 06 | 1 1/2 in | LGT40 - 1 1/2 in | 18 | 60 | 63
LSRDN 07 | 2 in | LGT51 - 2 in | 20 | 74 | 77
LSRDN 08 | 2 1/2 in | LGT63 - 2 1/2 in | 20 | 90 | 90
LSRDN 09 | 3 in | LGT78 - 3 in | 24 | 105 | 110
LSRDN 10 | 4 in | LGT102 - 4 in | 30 | 136 | 140

Technical specifications
  • Cap nut: Brass, nickel plated
  • Ring material: PA6
  • Ferrule: Aluminium or brass
  • Gland body: Brass, nickel plated
  • O-ring material: NBR
  • Connection thread standard: NPT ANSI B1.20.1
  • Ingress protection: IP67
  • Operating temperature range: -45 °C to +105 °C
  • Versions: Fixed body (LSRN) and Swivel body (LSRDN)
  • Compatible conduits: LGT, CTS, CTPS
  • Assembly: Quick and straightforward
