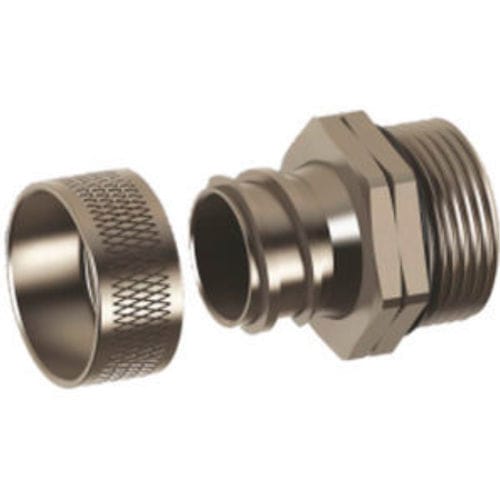

Flexible corrugated tube connector MDM 12

Overview

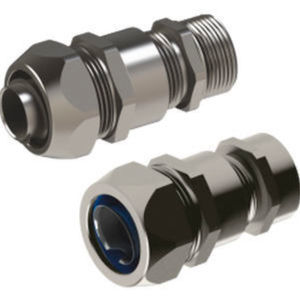

• Swivel body designed to connect Tacflex flexible spiral conduits to enclosures or junctions where metric or PG threads are required.

Materials and Components

• Ring: Brass, nickel plated
• Swivel gland body: Brass, nickel plated
• O-ring: NBR
• Connection thread: Metric (EN60423) / PG (DIN 40430)
• Protection class: IP54
• Temperature range: -30 °C to +100 °C
• Properties: Easy to assemble
• Versions: Fixed or swivel body versions available
• Compatibility: For use with OCGS, OPCGS or OPCHF conduits

Technical Data (Metric / PG thread swivel body)
Thread (AG) | Code | H mm | GL mm | L mm | D mm | Wrench mm | E mm
M 12 x 1,5 | MDM 12 | 27 | 8 | 13 | 6 | 15 | 7,5 x 11,5
M 16 x 1,5 | MDM 16 | 27 | 8 | 13 | 7 | 20 | 9 x 13
M 16 x 1,5 | MDM 116 | 29 | 10 | 13 | 9 | 20 | 11 x 15
M 20 x 1,5 | MDM 20 | 29 | 10 | 13 | 12 | 22 | 14 x 18
M 20 x 1,5 | MDM 120 | 29 | 10 | 13 | 14 | 22 | 16 x 20
M 25 x 1,5 | MDM 25 | 31 | 10 | 13 | 18 | 28 | 21 x 25
M 32 x 1,5 | MDM 32 | 35 | 12 | 15 | 23 | 35 | 26 x 31
M 40 x 1,5 | MDM 40 | 41 | 14 | 17 | 33,5 | 45 | 37 x 42
M 50 x 1,5 | MDM 50 | 41 | 14 | 17 | 37 | 55 | 40 x 45
M 63 x 1,5 | MDM 63 | 41 | 14 | 17 | 46 | 65 | 51 x 56
PG 7 | MDP 7 | 27 | 8 | 13 | 6 | 15 | 7,5 x 11,5
PG 9 | MDP 9 | 27 | 8 | 13 | 7 | 17 | 9 x 13
PG 11 | MDP 11 | 29 | 10 | 13 | 9 | 20 | 11 x 15
PG 13,5 | MDP 13,5 | 29 | 10 | 13 | 12 | 22 | 14 x 18
PG 16 | MDP 16 | 29 | 10 | 13 | 14 | 24 | 16 x 20
PG 21 | MDP 21 | 31 | 10 | 13 | 18 | 30 | 21 x 25
PG 29 | MDP 29 | 35 | 12 | 15 | 23 | 40 | 26 x 31
PG 36 | MDP 36 | 41 | 14 | 17 | 33,5 | 50 | 37 x 42
PG 42 | MDP 42 | 41 | 14 | 17 | 37 | 60 | 40 x 45
PG 48 | MDP 48 | 41 | 14 | 17 | 46 | 65 | 51 x 56

Applications

• Used to connect Tacflex flexible spiral conduits to enclosures or junctions where metric or PG threads are required.

Characteristics / Technical Specifications

• Material (ring & body): Brass, nickel plated
• O-ring material: NBR
• Thread standards: Metric (EN60423) and PG (DIN 40430)
• Ingress protection: IP54
• Operating temperature: -30 °C to +100 °C
• Assembly: Easy to assemble; available in fixed or swivel body versions
• Compatibility: For use with OCGS, OPCGS or OPCHF conduits
• Range of thread sizes: Metric M12 to M63 and PG 7 to PG 48 with corresponding dimensional data as listed above
