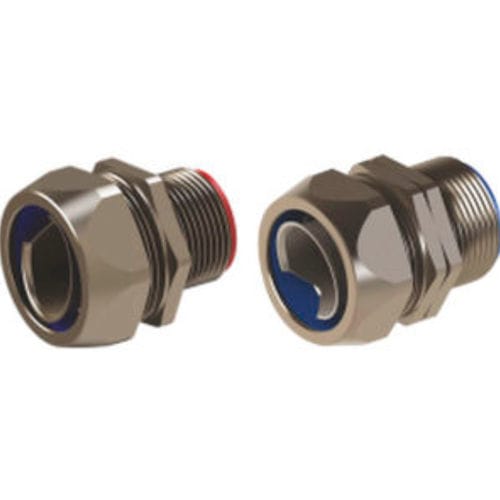

Aluminium cable gland LSR series

nitrile butadiene rubber (NBR)PA6brass

Overview
Flexible spiral conduit fittings, liquid-tight, available in fixed or swivel body versions. Designed for Tacflex metal spiral conduits to provide reliable liquid-tight connections while permitting straightforward assembly.

Materials

• Cap nut: Brass with nickel plated
• Ring: PA6
• Ferrule: Aluminium / brass
• Gland body: Brass with nickel plated
• O-ring: NBR

General characteristics

• Connection thread: Metric (EN60423) / PG (DIN 40430)
• Protection class: IP67
• Temperature range: -45 °C to +105 °C
• Properties: Easy to assemble
• Versions available: Fixed or swivel body
• Compatible conduits: Apply with either LGT or CTS, CTPS conduits

Technical Data - Fixed body (codes and dimensions)
LSRP 00 / LSRM 00 - PG 7 - M 12 x 1,5 - LGT10 - 1/4" - GL 10 mm - B 20 mm - C 22 mm
LSRP 1A / LSRM 1A - PG 9 - M 16 x 1,5 - LGT10 - 1/4" - GL 10 mm - B 20 mm - C 22 mm
LSRP 01 / LSRM 01 - PG 11 - M 16 x 1,5 - LGT13 - 3/8" - GL 11,5 mm - B 24 mm - C 26 mm
LSRP 2A / - - PG 13,5 - - - LGT16 - 1/2" - GL 13 mm - B 27 mm - C 29 mm
LSRP 02 / LSRM 02 - PG 16 - M 20 x 1,5 - LGT16 - 1/2" - GL 13 mm - B 27 mm - C 29 mm
LSRP 03 / LSRM 03 - PG 21 - M 25 x 1,5 - LGT21 - 3/4" - GL 15 mm - B 33 mm - C 35 mm
LSRP 04 / LSRM 04 - PG 29 - M 32 x 1,5 - LGT27 - 1" - GL 15 mm - B 43 mm - C 45 mm
LSRP 05 / LSRM 05 - PG 36 - M 40 x 1,5 - LGT35 - 1 1/4" - GL 16 mm - B 52 mm - C 54 mm
LSRP 06 / LSRM 06 - PG 42 - M 50 x 1,5 - LGT40 - 1 1/2" - GL 18 mm - B 60 mm - C 63 mm
LSRP 07 / LSRM 07 - PG 48 - M 63 x 1,5 - LGT51 - 2" - GL 20 mm - B 74 mm - C 77 mm
- / LSRM 08 - - - M 72 x 1,5 - LGT63 - 2 1/2" - GL 20 mm - B 90 mm - C 90 mm
- / LSRM 09 - - - M 75 x 1,5 - LGT78 - 3" - GL 24 mm - B 105 mm - C 110 mm
- / LSRM 10 - - - M 100 x 2 - LGT102 - 4" - GL 30 mm - B 136 mm - C 140 mm

Technical Data - Swivel body (codes and dimensions)
LSRDP 00 / LSRDM 00 - PG 7 - M 12 x 1,5 - LGT10 - 1/4" - GL 10 mm - B 20 mm - C 22 mm
LSRDP 1A / LSRDM 1A - PG 9 - M 16 x 1,5 - LGT10 - 1/4" - GL 10 mm - B 20 mm - C 22 mm
LSRDP 01 / LSRDM 01 - PG 11 - M 16 x 1,5 - LGT13 - 3/8" - GL 11,5 mm - B 24 mm - C 26 mm
LSRDP 2A / - - PG 13,5 - - - LGT16 - 1/2" - GL 13 mm - B 27 mm - C 29 mm
LSRDP 02 / LSRDM 02 - PG 16 - M 20 x 1,5 - LGT16 - 1/2" - GL 13 mm - B 27 mm - C 29 mm
LSRDP 03 / LSRDM 03 - PG 21 - M 25 x 1,5 - LGT21 - 3/4" - GL 15 mm - B 33 mm - C 35 mm
LSRDP 04 / LSRDM 04 - PG 29 - M 32 x 1,5 - LGT27 - 1" - GL 15 mm - B 43 mm - C 45 mm
LSRDP 05 / LSRDM 05 - PG 36 - M 40 x 1,5 - LGT35 - 1 1/4" - GL 16 mm - B 52 mm - C 54 mm
LSRDP 06 / LSRDM 06 - PG 42 - M 50 x 1,5 - LGT40 - 1 1/2" - GL 18 mm - B 60 mm - C 63 mm
LSRDP 07 / LSRDM 07 - PG 48 - M 63 x 1,5 - LGT51 - 2" - GL 20 mm - B 74 mm - C 77 mm
- / LSRDM 08 - - - M 72 x 1,5 - LGT63 - 2 1/2" - GL 20 mm - B 90 mm - C 90 mm
- / LSRDM 09 - - - M 75 x 1,5 - LGT78 - 3" - GL 24 mm - B 105 mm - C 110 mm
- / LSRDM 10 - - - M 100 x 2 - LGT102 - 4" - GL 30 mm - B 136 mm - C 140 mm

Characteristics / technical specifications

• Cap nut: Brass with nickel plated
• Ring: PA6
• Ferrule: Aluminium / brass
• Gland body: Brass with nickel plated
• O-ring: NBR
• Connection thread standards: Metric (EN60423) and PG (DIN 40430)
• Ingress protection: IP67
• Temperature range: -45 °C to +105 °C
• Easy to assemble
• Available in fixed or swivel body versions
• Compatible with LGT, CTS and CTPS conduits
