Hydraulic fitting Flexible Spiral Conduit Fittings NPT Fixed Body

threadedringnickel-plated brass

Product

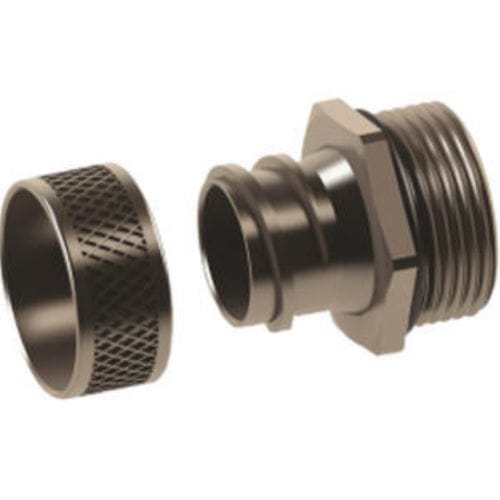

Flexible spiral conduit fitting from the MNR series with a fixed body, designed for NPT threaded connections.

Materials & Basic Data

• Ring: Nickel-plated brass
• Gland body: Nickel-plated brass
• O-ring: NBR
• Connection thread: NPT (ANSI B1.20.1)
• Protection class: IP54
• Temperature range: -30 °C to +100 °C

Properties

• Easy to assemble
• Available in fixed-body or swivel-body versions
• Compatible with OCGS, OPCGS and OPCHF conduits

Technical Data - Dimensions (mm)
NPT thread | Code | H mm | GL mm | L mm | D mm | Wrench mm | E mm
1/4 in | MNR14 | 26 | 10 | 13 | 6 | 15 | 7.5 x 11.5
3/8 in | MNR 38 | 27.5 | 11.5 | 13 | 7 | 18 | 9 x 13
3/8 in | MNR 138 | 27.5 | 11.5 | 13 | 9 | 18 | 11 x 15
3/8 in | MNR 238 | 27.5 | 11.5 | 13 | 11 | 19 | 13 x 16.5
1/2 in | MNR 12 | 29 | 13 | 13 | 12 | 22 | 14 x 18
1/2 in | MNR 122 | 29 | 13 | 13 | 14 | 22 | 16 x 20
3/4 in | MNR 34 | 32 | 15 | 13 | 18 | 28 | 21 x 25
1 in | MNR 100 | 34 | 15 | 15 | 23 | 35 | 26 x 31
1 1/4 in | MNR 114 | 38 | 16 | 17 | 33.5 | 45 | 37 x 42
1 1/2 in | MNR 112 | 40 | 18 | 17 | 37 | 50 | 40 x 45
2 in | MNR 200 | 42 | 20 | 17 | 46 | 65 | 51 x 56

Characteristics / Technical specifications

• Material (ring & gland body): Nickel-plated brass
• O-ring material: NBR
• Thread standard: NPT (ANSI B1.20.1)
• Ingress protection: IP54
• Operating temperature range: -30 °C to +100 °C
• Available versions: Fixed body and swivel body
• Compatibility: For use with OCGS, OPCGS or OPCHF conduits
• Key property: Easy to assemble
• Provided dimension/ordering codes: Multiple NPT sizes with corresponding MNR codes and detailed H/GL/L/D/Wrench/E dimensions (see technical data)
