Whether you are looking for leightweight machines to strip glass optical fiber (GOF) cables or would like to do jacket stripping, Kevlar cutting and fiber optic buffer & coating stripping all with one single machine, Schleuniger has the right product for you.
The FiberOptic 7045 is a programmable stripping machine for complete processing of Kevlar reinforced glass optical fiber (GOF) cables. Stripping lengths up to 70 mm.
The FiberStrip 7030 and FiberStrip 7035 are portable machines for stripping optical fiber buffers and coatings with strip lengths up to 35 mm.
The PowerStrip 9500 can be fitted with a Kevlar-cutting head for automatic cutting and stripping of glass optical fiber (GOF) cables.
The OC 3950 is a universal cutting machine that can cut glass optical fiber (GOF) cables and a great variety of other materials (or cables).
|
|
|
|
|
|
An international standard, SERCOS is an acronym for SErial Realtime COmmunications System, a digital motion control bus that interconnects motion controls, drives, I/Os, sensors and actuators for numerically controlled machines and systems. It is an open controller-to-intelligent digital device interface, designed for high-speed serial communication of standardized closed-loop real-time data over a noise-immune, fiber optic ring (SERCOS l & ll) or Industrial Ethernet cable (SERCOS lll).
The SERCOS interface offers more than 500 standardized parameters that describe the interaction of drives and controls in terms independent of any manufacturer. This rich instruction set provides for communication of commands, parameters, status, and diagnostics, handing many different types of systems. SERCOS also includes features for I/0 control that often allow a machine builder to dispense with the need for a separate I/0 bus.
The SERCOS interface greatly reduces connectivity problems in control systems. It can connect up to 254 drives to a control using one fiber optic cable ring or a single daisy-chained Industrial Ethernet cable. A comparable traditional analog servo system with 8 axes of motion may require over 100 wires between the drive and control.
|
|
Product features
Jumper cables are used to make the connection between the workplace PC and the FOC socket. In the data cabinet jumper cables are used to make the connections between the FOC splice box and the active component. Media converters are also connected with jumper cables. Direct connections between two active components in the in-house area are frequency made with special lengths.
In our glass fiber assembly we produce individual jumper cables with different plug variations at the customer's request.
|
|
|
|
|
|
Fiber Optic & Capillary Assemblies
- Low Fiber Count Assemblies
- Cable Design Options
- High Power Laser Connectors
- Bundles
- Capillary Assemblies
Assemblies can include optical, electrical, mechanical and fluid functions in a single, unit. Combining optical fibers, mechanical holding and mounting hardware and fused silica capillaries, they may be used to transfer and/or manipulate light and/or fluids from one position to another. Most assemblies are based on specific user requirements. These can vary in complexity from a single, finished, optical fiber (with or without end-terminations) to a complex, branching assembly, combining the advantages of fused silica light guides and/or fluid guides, into an integral unit.
Optical fiber or fused silica capillaries can be clustered into bundles at one end and fanned-out into various configurations at the opposite end. Special end shapes can be micro-machined directly onto the optical fiber or capillary, saving bonding and coupling losses. Termination style and technique, jacketing, and fiber type can be specified to ensure optimum system performance.
Polymicro offers the system designer unparalleled flexibility to incorporate a wide range of design options into their assemblies.
Note: Polymicro Technologies manuafacturers optical fiber cable, components and assemblies only. Polymicro Technologies does not design, manufacture or market any medical devices.
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
Bergquist Provides a Lower Cost Solution for Your Custom Assemblies
Bergquist takes the hassle out of custom assemblies. We have the knowledge, experience and resources to design and prototype the simplest or most complex assembly that you require. Choose Bergquist and let us produce your assembly more efficiently and cost effectively. We'll save you time, money and all the hassles.
How Does Bergquist Offer You Lower Cost Solutions?
We are your one single vendor to source all components, manage the design and manufacturing process and control inventory
Eliminate multiple SKU's...only one part number required
We have an established distribution network in place to offer competitive multiple sources and pricing
Reduce your manufacturing space and labor costs
Reduce your inventory investment
Ensure a competitive time to market for your product
We provide automated cost effective manufacturing processes
|
|
|
HARTING offers a variety of assembled system cables for industry and telecommunication. The products combine our extensive skills in the area of connectors with our experience in system cabling. HARTING is the specialist for harsh environments in IP 20 protection as well as in IP 65 / 67 / 68 protection which are used in industrial plants, supplying machines or outdoor telecommunication and also in energy and medical engineering.
|
|
|
|
|
|
ElectroCraft cables
for the Industrial Motion Control market.
A range of cable assemblies is available form ElectroCraft for the
Industrial Motion Control market, available in three types of cable
1. Standard
flexible cable for use in static applications.
2. Flex
for use in applications where continuous
rolling flexing occurs.
3. Food-grade
flexible food-grade cable for use in applications
where continuous rolling flexing occurs.
ElectroCraft cables
for the Industrial Motion Control market.
General
The following individual assemblies are available:
Power cables in 16 AWG/1.5mm2, 14 AWG/2.5mm2, 10 AWG/6mm2, 8AWG/10mm2 and
6AWG/16mm2 sizes, and feedback and brake cables for popular motor/drive combinations from the leading manufacturers of industrial drive systems.
The following set types are available:
· Single-stage sets of the above for direct connection from motor to drive
· Two-stage sets of the above, i.e. with a single intermediate connector
between drive and motor
· Three-stage sets of the above, i.e. with two intermediate connectors
between drive and motor.
The intermediate connectors may be bulkhead-mounting or in-line connectors.
|
|
ÖLFLEX® PLUG H03VV-F / H05VV-F Net Connection Cable
Approvals of most of the European countries according to the following chart
Application range
Electrical devices
Appliances and machinery
Design
First end: injection moulded, angular shock-proof plug with double shock-proof contact
2nd end: straight socket injection moulded
Alternatively
First end: injection moulded, angular shock-proof plug with double shock-proof contact
2nd end: 30 mm stripped, with conductor end sleeves
|
|
Rosenberger offers a fully developed, complete family of mobilecom infrastructure site solution products: cable connectivity systems solutions for radio base stations - from the antenna down to the base station.
The RosenbergerSLink product range includes perfectly coordinated components in the hightest quality such as cables, connectors, tools and assembly accessories.
|
|
|
Pasternack's Coax Cable Assembly Wizard will help you define all the elements of your specific connector and cable assembly requirements including Input / Output connections and cable lengths.
|
|
|

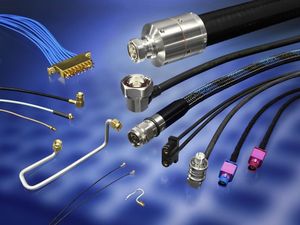

For RF coaxial standard connectors as well as for test & measurement connectors, Rosenberger offers a comprehensive spectrum of high-quality coaxial cables: Ranging from low-cost cables for mass production, low-priced laboratory test cables, very robust cables for outdoor applications up to high-precision test & measurement cables – our top priority is an accurate selection of the best-quality materials as well as excellent know-how to develop and to handle high-precision manufacturing processes.
|
|
Vibra-Metrics offers a wide variety of accelerometer cable assemblies. Standard cable lengths are 6 feet (1.83 m) and 15 feet (4.6 m) for all sensors and cable assemblies (10 feet for 1136 series), but custom lengths are available for an additional fee. Bulk economy cable rolls are also available. Depending on your needs and application, various cable types are available including:
- Patented Tufkem cable for superior chemical resistance
- Standard PVC RG58 cable
- Heat Resistant Thermax cable (to 400F)
- Polyurethane cable
- Underwater rated cable
- Low noise cable
- Economy twisted pair cable
- Shielded Cabling
- Available terminations include BNC, TNC, Pigtail, 10-32, SMA, 4-Pin, 2 Pin MIL
|
|
Description

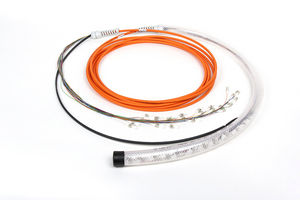

As the industry's leading supplier of singlemode cable assemblies, Corning offers the most complete line of connectors and factory-terminated cables. From single-fibre jumpers to high-fibre-count assemblies, Corning Cable Systems products meet or exceed all industry standards for reflectance and insertion loss. Corning state-of-the-art manufacturing process ensures unsurpassed connector performance. We thoroughly screen the fibres and ferrules at the beginning, assemble and polish them in a carefully monitored and controlled process, and quality test our assemblies at the end. This assembly and polishing process ensures the same outstanding quality in every connector.
|
|
|
mphenol is a leading global interconnect solutions provider to the wireless infrastructure market including applications such as cellular base stations, radio links, mobile switches, wireless routers, wireless local loop and cellsite antenna systems, combiners, transceivers, filters and amplifiers. Amphenol offers a wide product portfolio for every wireless standard and generation radio technology including 2.5G, 3G, Wimax and future IP solutions. The product range includes RF, low frequency, power and fiber-optic connectors and cable assemblies, antennas,backplane interconnect systems and power distribution systems.
|
|
|
Started initially as a value added service to our EMI filter (RFI filter, EMC filter) customers in the Appliance and Portable Tool industries, LCR has developed the capability and competency for designing and manufacturing small, medium and large wire harnesses of various complexities. Our cable assemblies range from one lead wire to multi conductor multi circuit wire harnesses.
|
|
Wire And Cable Harness Assemblies
- Jacketed Cable and Wire Harness Assemblies
- Combination D-Subminiature Assemblies
- Overmold
|
|
|
Gore's cables and cable assemblies incorporate the latest materials science to meet rigorous electrical, mechanical, and environmental requirements. Our cables are engineered for the most demanding applications to meet the customer's most rigorous performance requirements. Gore's cables and assemblies are unmatched by off-the-shelf products.
|
|
Flexible
Semi-rigid
Conformable
Delay Line
|
|
CIERRE produces complete Cables of seam, presagomatura, test.
The workings come carried out with modern equipments, maintained efficient by means of maintenance plans.
|
|
Directory of the Workings
Cut, sguainatura, spelatura from 0,12 to 200 mmq
Seam finishes them and capocorda to knots or preblocks, nastrati or melted.
Labelling to warmth or jet or with labels.
Working cables plates step 1,27 and 3,96
Supply Harmonized, special cables, UL, AFUMEX, TEFLON, TEFZEL
Resinatura cables with I rendered some epoxy
Sovrastampaggio cables
Realization cables details, antioil, immersion.
Visual tests and work them
Test of rigidity, isolation, short circuit, continuity.
Fatigue tests
Tests of traction
|
|
| ... products without technical information |
| |
Pre-mounted cable trunks with cable glands
We plan, manufacture and implement modern solutions to the cable protection in industrial channels and PIK trunks.
You define the necessary cable- / Hose glands - we supply
everything ready to be installed!
|
|
|
|
