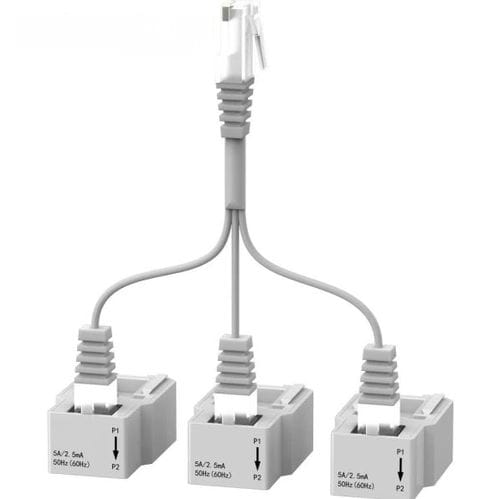

Cable harness MSC-3RJ series

Summary
RJ12 triple cable for closed current transformers (Enerclip). Allows the connection of 3 closed current transformers to an Enerclip measuring module. Designed to reduce installation time and prevent wiring errors.

Function

• Connects 3 closed current transformers MSC-TCF to an Enerclip measuring module (modules MSC-Nx, MSC-M4, MAP4-34RJ).

Advantages

• Prevents wiring errors
• Reduced installation time

Variants / Order codes
Order code | Cable length | Stock status
MSC-3RJ-0.5 | 0.5 m | in stock
MSC-3RJ-1 | 1 m | in stock
MSC-3RJ-2 | 2 m | in stock
MSC-3RJ-3 | 3 m | in stock
MSC-3RJ-5 | 5 m | in stock

Documents available (excerpts)

• Enerclip range presentation (PDF)
• Full product manual (PDF)

Related products

• Closed current transformers MSC-TCF
• Enerclip measuring modules: MSC-N1, MSC-N2, MSC-M4
• Multi-input controllers: MAP4-34RJ

Technical specifications

• Physical: 5 lengths available — 0.5 m, 1 m, 2 m, 3 m, 5 m
• Connector: triple lead with RJ12 connectors
• Use: connection of 3 measurement toroids (closed CTs) to an Enerclip measuring module
• Compatibility: MSC-TCF (closed toroids) and Enerclip modules (MSC-Nx, MSC-M4, MAP4-34RJ)
• Compliances: CE, RoHS, REACH
