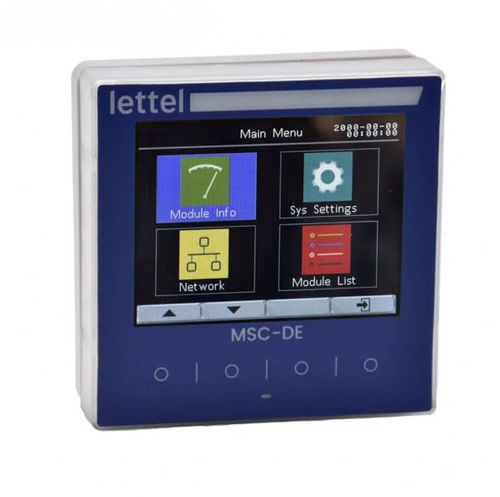

Flush-mount HMI MSC-DE

TFT LCDcolor LCDIP67

Remote Enerclip display to be associated with the MSC-C1 communication module. - Allows configuration of measurement modules and viewing of measurements from all connected modules. - Housing and connection: Front panel housing IP67, 96x96mm format, with accessory for flush mounting in cutouts 91×91, 76×76, 67×67 or Ø 26 mm. The MSC-DE display must be associated with the MSC-C1 communication module. They are connected by a single RJ12 cable. - Display: The ergonomic and intuitive interface displayed on a 3.5-inch color TFT screen allows you to view all measured data and also configure the modules. - Usage: Consultation and configuration of up to 32 measurement modules. The color TFT screen allows the display of measured data in the form of bar or vector graphs, sinusoidal curves. The automatic networking function allows automatic detection and addressing of all connected Enerclip measurement modules. - Associated products: The display must be associated with the MSC-C1 communication module. - Resources: Presentation of the Enerclip solution Technical specifications: - Front panel housing IP67, 96x96mm format - Flush mounting accessory for cutouts 91×91, 76×76, 67×67 or Ø 26 mm - 3.5-inch color TFT display - Configuration and consultation of up to 32 measurement modules - Automatic networking and addressing of Enerclip modules - Display of data as bar graphs, vector graphs, or sinusoidal curves - Requires MSC-C1 communication module and RJ12 cable
