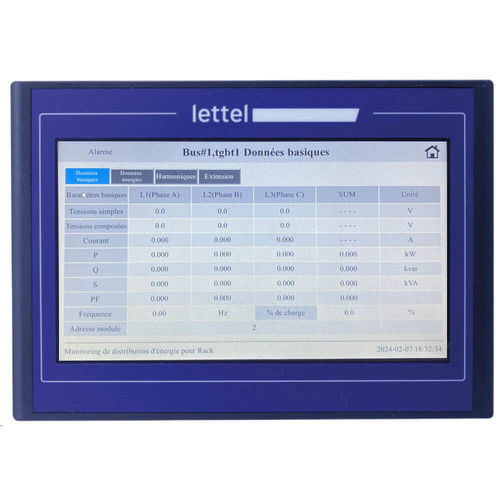

10" touch screen MSC-DE-4

for industrial applicationsRS-232I2C

The MSC-DE-4 display offers an ergonomic and intuitive interface on a 10-inch touchscreen to view all measured data, as well as to configure and interact with the MSC-M4 modules: - Electrical characteristics: Power supply 24V DC. Provide a AMP1-15-24 stabilized power supply. - Housing and connection: Housing dimensions L274 x H193 x P43 mm, to be embedded in a cutout of L261 x H180 mm. Direct connection of 2 RS485 loops without the need for a communication module. Communication ports RS485 x2, RS232, RJ45, USB1, USB2. - Display: The 10-inch color TFT screen allows the display of measured data in bar or vector graphics, sinusoidal curves. - Features: Consultation and configuration of up to 40 measurement modules. The main interface allows organizing the different modules by cabinet or circuit, and renaming them. - Associated measurement modules: The display is compatible with Enerclip measurement modules ref MSC-M4. - Resources: Presentation of the Enerclip solution Technical characteristics/specifications: - 10-inch color TFT touchscreen - Power supply: 24V DC - Housing dimensions: L274 x H193 x P43 mm - Embedding cutout: L261 x H180 mm - Direct connection of 2 RS485 loops - Ports: RS485 x2, RS232, RJ45, USB1, USB2 - Graphic display: bar, vector, sinusoidal - Management of up to 40 measurement modules - Organization by cabinet or circuit, renaming possible - Compatibility: Enerclip measurement modules MSC-M4
