RJ12 connector MSC-TCR-TRI

femaleplug-inmulti-port

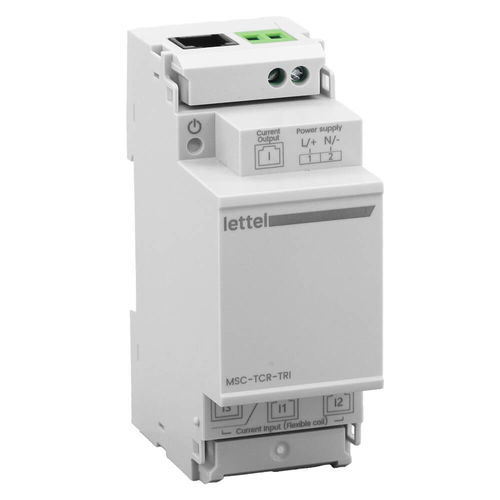

DescriptionThe triplet connector MSC-TCR-TRI is a 3-in-1 connector designed to link three Enerclip Rogowski current transformer loops to an Enerclip measurement module. It simplifies the wiring of Rogowski loops to MSC-Nx measurement modules or to the MAP4-34RJ central unit.

Main features

• 3 RJ12 inputs and 1 RJ12 output
• Width: 2 modules (DIN rail)

Functions

• 3-in-1 solution: consolidates connections from three Rogowski loops into a single module
• Designed for use with Enerclip measurement modules (e.g., MSC-N1, MSC-N2, MSC-M4, MAP4-34RJ)
• Operates with an RJ12 cable (e.g., MSC-1RJ)

Associated products

• Enerclip Rogowski loops (type MSC-TCR)
• RJ12 cable (e.g., MSC-1RJ / MSC-RJ)
• Enerclip measurement modules: MSC-N1, MSC-N2, MSC-M4, MAP4-34RJ

Available documents

• Enerclip range presentation (pdf)
• Complete user manual (pdf)

Technical characteristics / specifications

• Connectivity: 3x RJ12 inputs for Rogowski loops + 1x RJ12 output to measurement module
• Compatibility: connection to Enerclip measurement modules (MSC-N1, MSC-N2, MSC-M4) and MAP4-34RJ central units
• Mechanical width: 2 modules (DIN rail)
• Usage: converter/distributor of signals from Rogowski loops to measurement modules
