hand rope winch 'TANGO' with many advantages:
— corrosion resistant
— quiet running
— large rope capacity
— independent winding of rope possible
— compact form
— fully enclosed
— self-locking
— folding crank handle
— low weight
— proven security concept
— zinc plated or in stainless steel
— suitable for wall or base mounting
|
|
MPW open winch:
Our MPW multi-purpose winch units are built of large series sub-assemblies using modular system components manufactured to the most demanding quality requirements. The variable combination of these components makes it possible to implement the most efficient technical configuration for your application.
|
|
e.lift® 500-800-1000
"Personnel lifting hoists for suspended
platforms and temporary cradles".
The e.lift® hoist is available in 500 Kg, 800 kg and 1000kg versions. This hoist is used for personnel lifting combined with a suspended scaffolding, a cradle or an individual seat. Available in EN 1808 version and in version outside UE.
|
|
Wormgear winches VL250-1500kg
Wormgear winches WW2000-5000kg
Spurgear winches TL125-2000kg
GEBUWINch winches - accessories
GEBUWINch Special winches
|
|

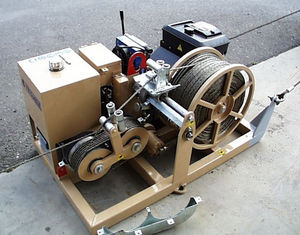

Thaler Cable Capstan winches are highquality products and represent the latest modern technical standard in the field of cable pulling winches.
Thaler Winches are built in accordance to the prescriptions of the cable industry, German Telekom and energy supply companies.
They are constructed under strict compliance with the machine guidelines of the European Community and with their chassis approved by TÜV (Technical Surveyance Authorities) they are admitted to the public traffic.
Short description:
- Double capstan system, both capstan heads are driven
- No chains between hydraulic engine and capstan system
- Hydrostatic drive
- Petrol or diesel engine
- Drum capacity for big rope lengths
- Automatic rope guidance to the drum
- Pulling force control by electronic measuring system with print out - SYSTEM KPR 2000 with PC interface
- Tandem axle chassis with overrunning brake, height adjustable drawbar with spindle support
- Metal hood
|
|
|
|
|
|
X820P

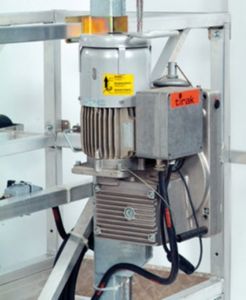

Use the tirak® to drive suspended access platforms, powered working seats and work cages as well as silo inspection equipment and many more.
Travel to the work place with the tirak® at speeds up to 18 m/min which is a significant benefit the higher up you have to go.
No matter what height, the tirak® hoist will take you there safely and speedily.
For man riding application an independent secondary safety rope is required. A Blocstop® fall arrest device is connected to the safety rope and working platform and locks onto the safety rope in the unlikely event of failure of the hoisting rope.
The principle:
The tirak® operates on the principle of wire rope travel by clamping, using adhesive pulleys. The originality of the system is in the operation and arrangement of the pulleys. The units of the X and L-series have only a single driver disc. The grip of the wire rope on the pulleys is obtained by a set of rollers, operated by a pressure spring. There are two rollers used for the X-series and only one roller for the lightweight L-version.
|
|
|
|
|
|
Electric wire rope winch model RPE
Pulling force 250 - 1000 daN
The robust and extremely compact, practical cube design and universal rope lead-offs allow individual applications in almost any position.
Features
- Standard operating voltage 400 V, 50 Hz, 3-phase. 40% ED.
- Motors protected to IP 54.
Optional
- Different drum designs, e.g. extended to accommodate longer rope, machined grooves for exact reeling, with separation web and 2nd rope outlet for working with two ropes.
- Geared limit switches to limit rope motion in both directions.
- Single-phase A.C. motor 230 V, 50 Hz.
- Control by means of pendant control including control switch with emergency stop and 2 m long control cable.
- Contactor control with 42 V control voltage.
- Slack rope switch to automatically stop the winch when rope tension eases e.g. when the load touches down (only in combination with low voltage control).
- Frequency converter for stepless speed control.
- Adjustable slip clutch to protect the winch from overloading for models RPE 2-13, RPE 5-6 and RPE 5-12.
- Special design according to BGV C1 for theater stage applications available.
|
|
| ... products without technical information |
| |
... see all the products in the category
Winches
|
Product Description:
Made from Endura Braid, a double braid with a very high strength, extremely low stretch HMPE core with a durable polyester cover. Higher strength-to-diameter ratio enables smaller diameters to be put into service which can be advantageous when winch drum/take up length is a limiting factor. Eyes can be spliced on one or both ends and are available soft or with your choice of thimbles. We offer Galvanized, Heavy Duty Galvanized, Bronze, and Stainless Steel thimbles.
Features:
Factory spliced Eyes
Optional urethane coating can be applied to entire assembly or eyes only.
|
|
