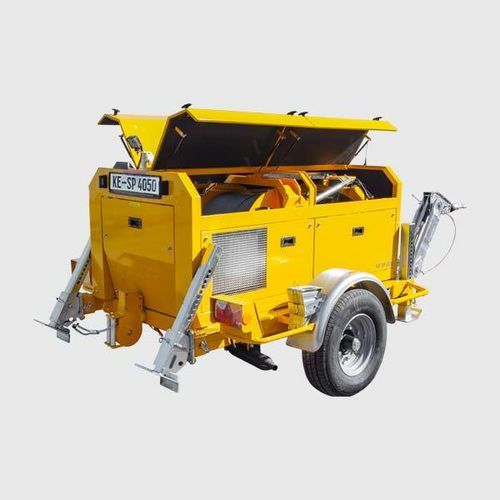

Hydraulic winch KE-SP 4040

diesel enginediesel-poweredfor cables

Hydraulic cable drum winch with Kubota diesel engine on double drum.Technical details (overview):Rope capacity: 1,400 mRope diameter: 11 mmEngine: 3-cylinder diesel, 18.9 kW (Stage V)Drive: hydraulicMaximum pull: 4,000 daNSpeed V2: 0 - 50 m/minSpeed V1: 0 - 12 m/minMeasuring device: MP 50 (MP 50 ordered separately)Weight: 2,500 kgStandard equipment:Single-axle trailer with height-adjustable drawbar, DIN towing eye and ball couplingKubota diesel engine 18.9 kW, Stage V, electric startLockable steel-sheet protective coverLoading frame with central crane eyePrepared for installation of the MP 50 electronic measuring device (MP 50 sold separately)Additional technical data:Drive motor: 3-cylinder diesel 18.9 kW with electric start (Stage V)Chassis: sprung single-axle trailer, overrun-braked, with height-adjustable drawbar, DIN towing eye and ball couplingColor: RAL 1007 yellow (other colors on request)Certification:Includes TÜV inspection with European individual approval according to §13 EG-FGV. This document confirms the trailer configuration in accordance with Directive 2007/46/EC Annex XI - Appendix 4.
