Conduit feeder DF 6-90

for cableselectric

Overview

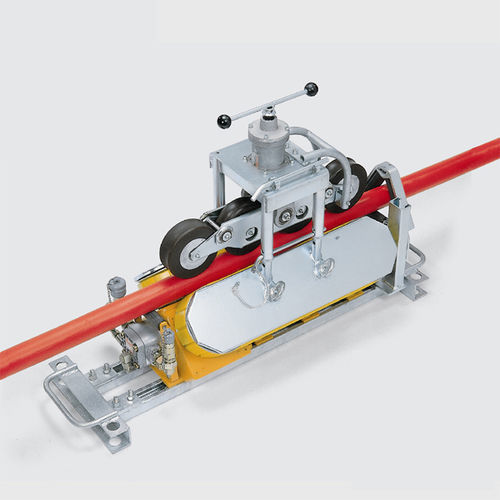

The Vetter DF 6-90 is a cable pusher designed to assist cable installation over long or curved routes by delivering continuous push force and reducing load on winches.

Applications

• Underground and duct cable installation
• Long-distance and curved cable runs
• Power and telecommunication cable laying

Key features

• Adjustable push force to support winch operations
• Can be driven by petrol or electric hydraulic power pack (optional)
• Includes hose assembly, approx. 7 m
• Stepless push and pull speed control from 4 to 18 m/min

Technical specifications

• Push force: 6 kN
• Cable diameter: Ø 28–130 mm
• Weight: 166 kg
• Drive: petrol or electric hydraulic power pack (optional)
• Hose length: approx. 7 m
• Push/pull speed: stepless 4–18 m/min
• Product ID: 425750

Documentation and ordering
No drawings or datasheets available on the portal. Contact Vetter for detailed datasheets, accessories and spare parts.
