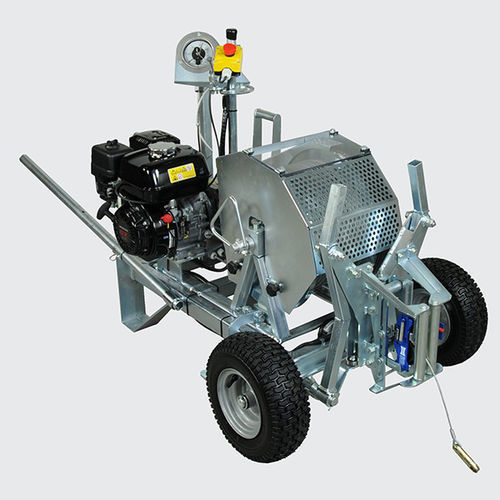

Winch with combustion engine SBS 511Mropetractionhaulage
Add to favorites
Compare this product
Characteristics
- Operation
- with combustion engine
- Type
- rope
- Application
- pulling, traction, haulage
- Other characteristics
- rotary drum, auxiliary
- Capacity
Max.: 510 kg
(1,124.36 lb)Min.: 408 kg
(899.49 lb)- Cable diameter
Max.: 5 mm
(0.2 in)Min.: 4 mm
(0.16 in)- Cable length
Max.: 1,100 m
(3608'11" )Min.: 750 m
(2460'07" )- Motor power
4.1 kW
(5.57 hp)- Weight
168 kg
(370.377 lb)
Description
Overview
Key specifications
Options & accessories
Safety & features
Applications
Note
Key specifications
- Model: SBS 511M
- Manufacturer / Brand: Vetter
- Manufacturer code (part number): 232211
- Engine power: 4.1 kW (Honda petrol engine)
- Drive: positive drive with releasable rope drum (no V-belt)
- Pulling force: 5.0 / 4.0 kN (lowest rope line limited to 5.0 kN)
- Rope capacity: up to 1100 m Ø4 mm or 750 m Ø5 mm
- Weight: 168 kg
- Mobility: mounted on two pneumatic wheels in wheelbarrow configuration
Options & accessories
- Prepared for electronic register MP 50 (MP 50 not included) — digital display and logging of pull force, length and speed; USB export of data
- Alternative: dynamometer with adjustable max load and automatic cut-off
- Optional mechanical length meter: Code 232380 (SLM 510)
Safety & features
- Hand-operated rope winding guide and rope protection hood complying with accident prevention regulations
- Separable rope drum for quick replacement
- Safety limit on lowest rope line set to 5.0 kN
Applications
- Blowing in pilot/auxiliary ropes into cable ducts and subsequent pulling of larger winch pull ropes
- Pulling smaller cables such as fibre optic cables, subducts (microducts) or electrical cables
- Site relocation using pneumatic wheels for ease of transport
Note
- Types SBS 510DL and SBS 510ML operate at half speed for sensitive cable pulling tasks
