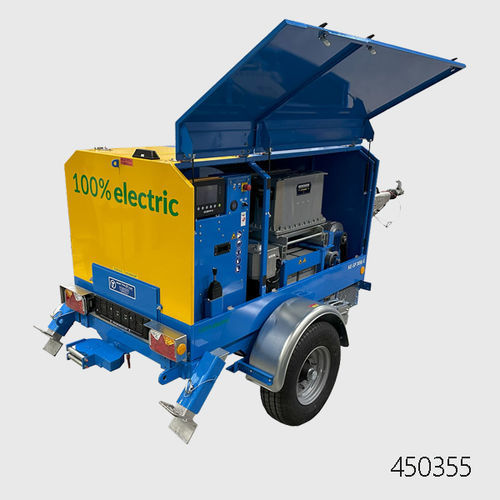

Electric winch KE-SP 3050E

wire ropefor cableslifting

Overview
Mobile trailer-mounted electric cable-pulling unit for installation and maintenance of power and communication lines. Battery-powered design enables transportable operation on sites without external power supply. Compact dimensions and single-axle chassis facilitate towing and maneuvering.

Standard equipment

• 48 V (21 kWh) battery system
• Single-axle chassis with height-adjustable drawbar, DIN drawbar eye, and ball head coupling
• Protective cover made of sheet steel, lockable
• Loading frame with central crane eye
• Delivery includes MP 50 electronic measuring device
• Delivery includes remote control
• Delivery includes 12 mm rope
• Includes V 60 D twist catcher

Technical details

• Model: KE-SP 3050E
• Manufacturer: Vetter
• Height: 1650 mm
• Width: 1700 mm
• Length: 4000 - 4350 mm
• Permitted speed: 80 km/h
• Hitch: 120 kg
• Charging power: 3000 W (0-80% in 8 h)
• Battery: 48 V (3 x 7 = 21 kWh)
• Rope capacity: 1000 m
• Rope Ø: 12 mm
• Measuring device: MP 50
• Rope speed V1 (retraction): 0-10 m/min (under full load)
• Rope speed V2 (retraction): 0-60 m/min
• Max. tensile force: 5000 DAN
• Drive type: Electric
• Chassis: Spring-loaded single-axle, overrun braked, height-adjustable drawbar, DIN drawbar eye, ball head coupling
• Standard equipment includes remote control, protective steel cover (lockable), loading frame with central crane eye, 12 mm rope, V 60 D twist catcher
• Weight: 2,500 kg

Certification
Includes TÜV approval with European individual approval in accordance with §13 EG-FGV. This document confirms that the trailer complies with Framework Directive 2007/46/EC Annex XI - Appendix 4.
