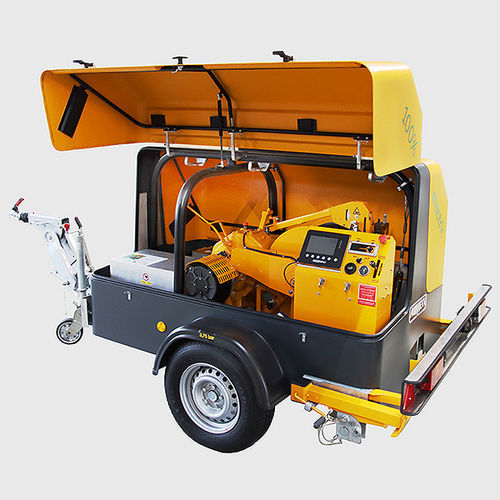

Electric winch TL 3022 DRE/MP

for cablestractionhaulage

Product name
Vetter TL 3022 DRE/MP

Code
Product ID: 450300
Product category ID: 129
Brand: Vetter
Product page URL: https://portal.vetter-kabel.de/en/products/450300?productCategory=129

Product description
The first fully electric, compact and lightweight trailer-mounted cable drum winch with strong noise reduction and an emission-free motor. Designed to provide quiet, emission-free operation with a rated pull force of up to 30 kN and an independent operating duration of up to four hours depending on configuration and use. Suited for urban areas, tunnels, shafts and night work where low noise and zero local emissions are required. Eliminates the need for special exhaust routing or permits in many applications. Reduced noise level also facilitates radio communication between operator and winch.

Electronic assistant / measuring device
Prepared for the electronic assistant MP 50 as a pull-force measuring and recording device for safe and simple machine operation. The system continuously monitors pull force and stops the winch when the preset force is reached. The MP 50 measuring and recording unit must be ordered separately.

Technical details

• V2 m/min: 5 KN/0-75
• V1 m/min: 30 KN/0-20
• Measuring device: MP 50
• Weight: 912.5 kg

Drawings / data sheets
PDF brochure: https://product-api.vetter-kabel.de/v1/product-families/928/docs/5

Characteristics / specifications

• Fully electric trailer-mounted cable drum winch
• Emission-free motor with strong noise reduction
• Pull force up to 30 kN
• Operating duration: independent up to 4 hours (depending on configuration/use)
• Charging options: generator, mains supply or EV charging station
• Very low maintenance (no filter/oil/spark plug changes required)
• Suitable for urban deployments, tunnels, shafts and night work
• Prepared for MP 50 pull-force measuring and recording unit (ordered separately)
• Drive: double-drum
• Weight: 912.5 kg
