Climbing systems
System equipment to use formwork systems as climbing formwork and establish secure workplaces at high levels
* Applicable with all formwork systems
* Climbing brackets can be moved together with formwork as large units
* Climbing platform as foldable platform with little transport volume
Dimensions: Climbing bracket 200 cm rigid / slidable
KBK 180, width 300 cm, depth 180 cm
Max. Load: Max. live load 4,5 kN/m²
|
|
|

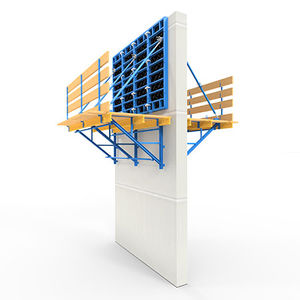

The climbing formwork Xclimb 60 can be either crane-lifted or self-climbing and is designed for highly cost-effective, universal use in the wall-construction and façade sector. Integrated safety as offered by the shield function, for example, complements the enormous versatility of this system.
|
|
|

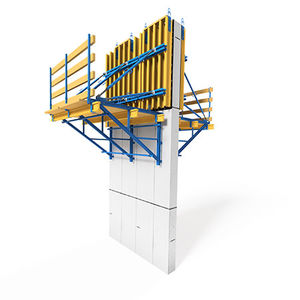

The climbing formwork MF 240 is the key to regular work cycles on all high structures. Of straightforward design, this system can be adapted to a very wide range of field requirements.
|
|
SCF
Self-climbing formwork
SCF is a formwork system that climbs step by step with the building with the aid of an inbuilt hydraulic device instead of a crane – smoothly, swiftly and without vibration. All the platforms stay horizontal, as the SCF hydraulics operates with a height tolerance of max. 1% of the cylinder stroke – even when up to 16 brackets are operated simultaneously.
|
|
MGC/MGS - Guided Climbing / Screens
MGC: Climbing Higher, Climbing Safer
MEVA´s Guided Climbing System MGC comprises vertical formwork and safety platforms as a single unit. It remains securely attached to the building structure during building and lifting. Thus, wind velocities do not affect the building process. Assembly is at ground level for improved safety and speed.
The MGC system is designed to meet the highest standards in effi ciency and safety:
for high-rise construction
complementing the proven climbing scaffold MEVA KLK

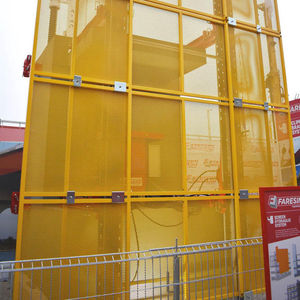

The Guided Screens System MGS
is the MGC´s twin system for slabs. Highest safety is guaranteed by full side protection, enhanced by several technical advantages:
spacing of brackets is variable
level heights 3,00 m to 4,25 m
secondary platforms attachable to any bracket
integrated access system
MGS is also assembled at ground level: All parts are lifted into the guard rails from below
|
|
|
|
