Single-mast Self-Climbing System ACS series

Product overview

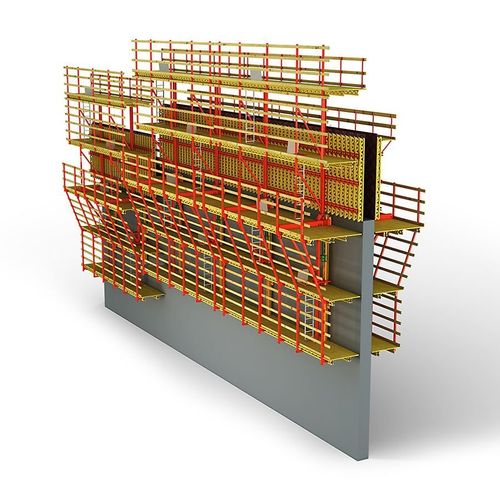

The ACS self-climbing formwork system uses integrated hydraulic climbing units combining wall formwork and working platforms to enable crane-independent vertical advancement. Variants are provided for façades, building cores, shafts and inclined bridge pylons. Integrated hydraulic components allow multiple units to climb simultaneously, reducing exposed leading edges and shortening formwork cycles to increase site productivity and safety.

ACS in action
Crane-independent, fast-cycle operations: formwork, striking and hydraulic climbing follow in rapid sequence, allowing progress even when cranes are occupied.
Weather-independent working: enclosable platforms protect personnel from wind and weather.
Stable working platforms: platforms are designed to carry high loads from material storage or concrete placing equipment.

Variants of the ACS self-climbing system

• There are six ACS variants to match project requirements.
• ACS R Self-Climbing System – standard version with carriage and open-top formwork for easy reinforcement installation.
• ACS P Platform System – for advance-built high-rise cores and tower-like structures with large storage and working areas.
• ACS G Realization with Gallows – for casting walls and slabs in one pour or for circular structures; both formwork sides attach to cantilevered gallows.
• ACS V Adjustable Version – for inclined structures such as bridge pylons, with platforms maintained horizontal.
• ACS S Shaft Formwork – for stairways or small elevator shafts with a single central climbing device.
• ACS C Core Formwork – for handling large-sized core formwork including concrete placing booms and site equipment.

Technical characteristics / specifications

• Hydraulic, crane-independent climbing system.
• Climbing units comprise wall formwork and working platforms.
• Integrated hydraulics enable simultaneous climbing of multiple units.
• Suitable for façades, building cores, shafts and inclined bridge pylons.
• Designed to shorten cycle times, increase productivity and reduce exposed leading edges.
• Available variants: R (standard), P (platform), G (gallows/circular), V (adjustable/inclined), S (shaft), C (core formwork).
• Typical achievable storey heights: 2.70–4.50 m.
• Maximum total load (platform + formwork): approx. 20 t.
• Typical hydraulic lift speed: 0.5 m/min.
• Platforms can be enclosed for weather-independent working and are rated for high live loads.
