SUCOFLEX 400
SUCOFLEX 400, the insertion loss revolution.
The new SUCOFLEX 400 microwave cable family has been specifically developed for applications on the ground for defence technology, medical and space measurement technology applications, where the lowest loss, highest performance, the best phase stability versus temperature and phase stability versus bending, excellent return loss and mechanical stability are of the utmost importance.
There will be a steady roll-out of SUCOFLEX 400 products for specific relevant markets starting with the SUCOFLEX 404 with straight male SMA connector, which is available now. The SUCOFLEX 406 including N and TNC straight male connectors will follow in February 2009. This cable will have the lowest loss of the family and thus be the lowest loss product up to 18 GHz on the market. During the course of 2009, the connector range will be expanded and followed by additional thinner versions with the lowest losses for frequencies up to 40 GHz, as well as additional jackets and armor for all kinds of applications. Current HF systems for defence, medical and space applications must comply with the highest demands, so it is essential that the accompanying connection components meet the highest standards too. The new SUCOFLEX 400 family meets these demands.
|
|
Coaxial cables are used in all areas of the high frequency transmission technology, for example in medicine, military or in communication sectors. Because of the wide spectrum of coaxial and video or TV cables, which HELUKABEL® has on stock, the most requirements are covered. Naturally we also offer special constructions for you.

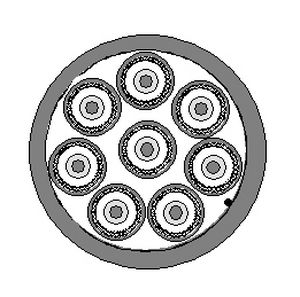

HELUKABEL® supply RG-coaxial cables or RG-multi coaxial cables according to the american military standard MIL-C-17.
The coaxial cables for satellite receivers and TV aerials as well as video cables are designed according to the respective specifi ed standards.
|
|
Characteristics: A complete range of standard and special cables for low currents.
Applications: KX- and RG-series coaxial cables (TV, radio, video, computer), multicoaxial cables (telephone, computer, door entry, alarms, SCART).
Brands : TS CABLES, TS COM 900
|
|
|
Pasternack's Coax Cable Assembly Wizard will help you define all the elements of your specific connector and cable assembly requirements including Input / Output connections and cable lengths.
|
|

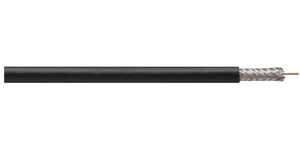

CCTV Coaxial Cables (Copper Braid)
RG11 14BC 95%BC
RG11 14BC 95%BC Plenum Rated
RG11 14BC 95%BC For direct burial use (flooded)
RG6 18BC 95%BC
RG6 18BC 95%BC Plenum Rated
RG6 18BC 95%BC For direct burial use
RG6 18BC 95%BC For direct burial use (flooded)
|
|
|
|
|
|
Axon' has designed a complete range of low loss microwave coaxial assemblies mainly used as measurement and equipment assemblies
as well as for antennae. In the aeronautics field, they are used for radar and surveillance systems.
Construction
- FEP or PU insulated coaxial cables terminated with SMA, N or TNC connectors
- A flexible stainless steel hose or spring and an insulation to resist crush (axolab®)
- Hybrid harnesses : they integrate various configurations of wires and terminations such as coaxials up to 40 GHz, high flex wires, shielded pairs, fibre optics, power cables, cables with optimised shielding, etc… and are connected to circular, miniature or coaxial connectors.
- High flex microwave assemblies : designed for high repetitive bending as required for dynamic applications (radar, surveillance or navigation systems).
Characteristics
- Temperature range : -55°C to + 125°C and -40°C to +95°C
- Operating frequency : 0 - 40 GHz (dependent on the type)
- Optimised insertion losses (2.45 dB/m for a frequency of 40 GHz)
- Shielding efficiency (> 100 dB for a frequency of 1 GHz)
- High bending strength for dynamic applications
|
|
|
Micro-Coax M-Flex is a high performance flexible cable that can be purchased in bulk on spools or reels. M-Flex is designed to match the line size of 0.141" or 0.0865" diameter semi-rigid cables, thus enabling use with a very wide variety of standard solder type connectors and stripping machines. Employing all of our microwave cable shielding know-how with a solid PTFE dielectric yields a very versatile cable for users who need or want the flexibility of attaching their own connectors.
|
|
GORETM coaxial cable provides greater packaging density, signal fidelity, flex durability, lower capacitance and propagation delay. Available in a variety of sizes/configurations. Can be designed to your specifications:
Conductor sizes from AWG 50
Controlled impedance pairs for differential signals
Coaxes and pairs-ribbon or round cable for signal busing applications
Quad cables-high speed, differential cables with two shielded pairs in a package 15 percent larger than a single-pair cable diameter
|
|
UTiFLEX Ultralight Spaceflight cable assemblies are optimized for spaceflight applications. They provide the lightest weight, lowest insertion loss, and best
radiation resistance in a flexible cable construction. The cables utilize DuPont
Aracon® for the outer shield, an ultra low density PTFE for the dielectric, and
a black Tefzel® jacket. If required, cable assemblies are manufactured in a
Class 1,000 clean room by NASA Certified solder technicians. Additional
capabilities include, but are not limited to:
- NASA certified soldering to NASA-STD-8739.3 and J-STD-001C. Class 2 and Class 3.
- Class 10,000 and Class 1,000 clean rooms
- Multipaction resistant connector designs
- PIM free cable & connector materials
- Metallurgical lab with cross-sectional analysis & 100x magnification
- Real Time X-Ray Analysis
|
|
|
VNA UTiFLEX Test Cables from Micro-Coax are designed for use with high performance VNA systems when the absolute highest precision is required. Typically sold in matched pairs and supplied in a protected wooden case these assemblies perform to 40 or 65 Ghz and are optimized for phase and amplitude stability. They are more expensive than standard test cables, but are the ideal choice when precision repeatable measurements must be performed.
|
|
Our feeder cable family, RFA, has been designed to meet the highest technical standards. Enhanced electrical values, uniform impedance and low attenuation at high frequencies make RFA an optimal choice for all applications including UMTS and WiMAX. Our RFA cables are compatible with standard connectors and accessories.
We offer various RFA cable types: 3/8", 1/2", 5/8", 7/8", 1 1/4", 1 1/5", 2 1/4"
The unique two layer jacketing with harder HDPE surface and softer LDPE inside gives the RFA cables best protection in all installation environments without losing flexibility. In Draka feeder cables, the foam dielectric has an extremely high degree of expansion and a special skin layer for extra protection.
|
|
RF and Interface Cables for SATELLINE Radio Modems
We can offer following RF cable types for your solutions:
* CRF-1 RG58 lenght 1 meter with TNC male / TNC female -connectors
* CRF-5F RG58 lenght 5 meter with TNC male / TNC female -connectors or CRF-5M TNC male / TNC male -connectors
* CRF-15 RG58 lenght 15 cm with TNC female / TNC male right-angle connectors
* RG213 low loss (1.6 dB / 10 m) cable for cable lengths from 1 till 20 meters with TNC or N -connectors
* ECOFLEX10 low loss (0.9 dB / 10 m) cable for cable lengths over 20 meter with N or TNC -connectors.
* AIRCOM+ low loss (0.8 dB / 10 m) cable for cable lengths over 20 meter with N or TNC -connectors.
* ECOFLEX15 low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors.
|
|
|
As the name implies, spline coaxial cable supports the center conductor via longitudinal splines of solid PTFE dielectric inside a solid metal tube. This results in excellent impedance matching, lightweight and low attenuation but limits the minimum cable diameter to approximately 0.250 inches. Spline cables are fully vent-able and when mated to vented connectors, they are excellent low loss transmission line solutions for vacuum environments such as spacecraft. Although spline cables are relatively expensive and require special care to bend and install, they offer the best overall electrical performance of any coaxial transmission line.
|
|
Signal transmission in electronic applications and data communications is changing in a dramatic way. Cables now have to accommodate faster signal speeds over longer distances with less signal loss. Additionally, new shielding requirements to meet FCC RFI/EMI emission controls, tougher fire regulations required in plenum installations and demands for high-density wiring are factors which have been considered in creating many of Alpha's coaxial and data cable products. The products in this section are designed to meet these needs for safe and reliable transmission of voice, video or data.
A VARIETY OF COAXIAL PRODUCTS
Alpha coaxial products are supplied in a wide variety of impedance grades (and RG Types) for most voice, video and data applications. Our comprehensive line includes:
- Standard RG Coax For Commercial & Military Use
- 75 Ohm Precision Video Cables
- Dual Coax
- Networking Coax - Ethernet
|
|
PE coax, 60 Ohms:
- Coaxial HF-cable 60 Ohms characteristic impedance, braided shielding CU-tinned, white PVC-jacket
PE coax, 95 Ohms:
- Coaxial HF-cable, two individually coated conductors 95 Ohms characteristic impedance, double shielding- one braided shielding CU-bare, one braided shielding CU-tinned, black PVC-jacket
|
|
| ... products without technical information |
| |
|
Pasternack's Coax Cable Assembly Wizard will help you define all the elements of your specific connector and cable assembly requirements including Input / Output connections and cable lengths.
|
|
|
For RF coaxial standard connectors as well as for test & measurement connectors, Rosenberger offers a comprehensive spectrum of high-quality coaxial cables: Ranging from low-cost cables for mass production, low-priced laboratory test cables, very robust cables for outdoor applications up to high-precision test & measurement cables – our top priority is an accurate selection of the best-quality materials as well as excellent know-how to develop and to handle high-precision manufacturing processes.
|
|
Flexible
Semi-rigid
Conformable
Delay Line
|
|
The P8AX series coaxial surge protectors have been designed to protect antennas, microwaves, broadband applications, two-way radios, cellular equipment and GPS equipment against lightning surges and electrical transients. They are a first line of defense for your sensitive equipment.
The CXP series has been designed to protect radio base communication systems from lightning and electrical transients. This device is a DC blocked protector not to be used where transmitter combining is performed.
|
|
|
Pasternack's Coaxial Surge Protectors provide protection for your RF & Microwave coax applications from lightning or other high voltage surges.
|
|
|
Pasternack's Adapter Wizard is designed to help you identify the right RF coax adapter to meet your specific requirement. With over 750 different adapter configurations in-stock, both in-series or between-series, there is no need to search different companies for RF coaxial adapters. Pasternack has more RF coaxial adapters in stock than any other company, will ship your order the same day you place it, to wherever you need.
|
|
