The base on machinetables, in dividers and spindles
Connection to other EROWA tooling systems
Workpiece holders without collet functionality
Blank collets for specific adaption
Application accessories
|
|

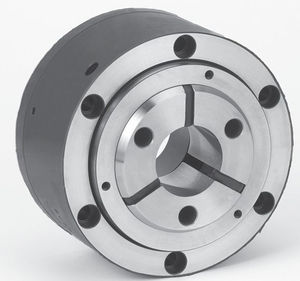

ITW Workholding provides a ride range of collet chucks to suit your turning / milling / or grinding needs. Used in both rotating and non-rotating applications, we can design and build a collet chuck to suit your process.
IDEAL FOR Transmission, Gear Box and Gear Manufacturers.
STANDARD FEATURES:
* High RPM
* Stock Standards
* Sealed Collet Design
* Multiple machine mounts available.
* Easily modified for special Applications.
* Modular design allows interchangeability.
* Fixed Endwise Location
* High Gripping Force
* Pull Back Design
DESCRIPTION:
* Sealed Leaf Style Collet
* Drawbar/tube Actuated
* Conical Taper Mechanism
IDEAL FOR:
* 2nd & 3rd Operation
* Machining Center Applications
* Pallet Fixtures
* Tombstones
* Robot End effectors
|
|

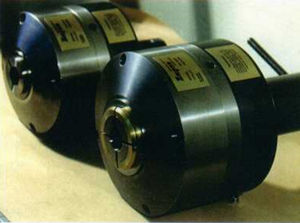

Every expanding mandrel or collet chuck supplied by Chevin can have the following features:
* Single taper sleeves
* Positive clamping and release
* High levels of concentricity – to 0.0002" T.I.R
* Controlled datums
* Sleeve interchangeability
* Generous expansion capacities
All of the above permit quick and secure clamping creating versatility and ease of use.
|
|
|
|
|
|

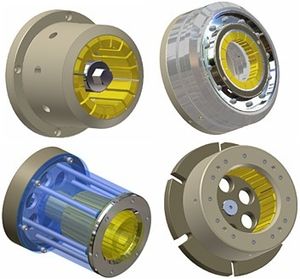

Hardinge FlexC™ Collet Systems are flexible, sealed collet heads that interchange in seconds and are available with spindle mounts for all brands of CNC lathes.
Pull-back thru-hole, pull-back stationary stop and push-to-close dead-length® styles are available for main and sub-spindle CNC lathe applications. Hardinge FlexC collet heads are fully interchangeable with competitor’s models. Hardinge guarantees accuracy within .0004" (.010mm) TIR for the collet system models A and D, and .0008" (.020mm) TIR for style DL.
The changeover concept is simple using a manual wrench to compress the collet for quick removal or replacement in seconds. A typical FlexC collet head has a gripping range of .020" (.5mm) above and below its nominal size to allow variation in bar stock without having to change the collet. Parallel clamping minimizes stock "push back" and requires less draw bar force to achieve the same gripping capability as conventional collets.
Emergency collets are reusable. Standard hardened and ground collets are stocked in round smooth, round serrated and hex shape. Square sizes are made to order. Special applications including stepped holes, special shapes, off-center, etc. can be custom-made from stock blanks.
Purchase FlexC collet systems online at www.shophardinge.com
|
|
|
|
|
|
HSK Tooling Types Offered:
• Four types of MEGA Chuck series optimises high speed and precise cutting with drills and endmills.
• The Fullcut Mill, the world's first indexable insert endmill, offers both accuracy and toughness.
• KAB tool shanks, the original and #1 modular boring system in the world!
Premium Material Selection
Since HSK is a hollow taper shank, the material has a critical role for optimum performance. BIG uses carefully selected high grade alloy steels. Particularly, BIG uses die steel materials for HSK 40 and smaller where the cross section of shank taper is very thin.
Important Tool Retention Feature
Internal clamping of HSK tools is defined by the location of highly concentrated forces from the machine tool. Accuracy and position of this form will affect the righdity, repeatability, and precision of tool holders. BIG provides finish machining of this area after heat treatment.
Drive Key Form
HSK Shanks according to Form A are designed to carry out torque transmission by the round shaped key-way at the end of the taper. Because of the importance of this round shaped geometry, BIG provides finishing of this feature after heat treatment.
Pre-Balanced Design
Since HSK Form A has non-symmetric keyways, it is not balanced. BIG Form A holders are pre-balanced near the tool change V-Groove recommended by ISO standard and can therefore be used for high speed applications.
Hole For Manual Clamping
BIG HSK Form A holders have a manual clamping hole as a standard and can therefore be used in place of HSK Form C which is manually mounted in spindles.
|
|
- Every collet chuck comes with our exclusive "Power Coat" nut that holds up to 75% tighter than standard nuts. (greater holding force improves T.I.R., rigidity, and reduces tool slippage to extend collet life)
- Tolerance measured from taper O.D. to collet pocket I.D. is only 0.0001" (our competitors average 0.0002")
- Every collet chuck is lab tested and delivered with a full report documenting T.I.R., balance, taper, etc.
- Our standard precision collets feature T.I.R. of only 0.0004" (our competitors average 0.0006" - you gain 20% tool life)
- Each holder is factory balanced to 18,000 RPM @ G2.5 (great balance reduces vibration at all RPM's - saving toolife, spindle bearings, and improves surface finish)
- Each taper is precision ground to a tolerance of AT3 or better!
- All products are backed by our 100% satisfaction guarantee.
Advantages:
- Flexibility (fits a wide range of tool shanks)
- Accurate (when maintained to specifications)
- Fast and easy tool changes
|
|
|
|
|
|
To achieve best results with centerdrill we recommend the following basic equipment:
1x collet chuck with cooling ring, clamping nut and spanners.
1x centerdrill collet, optional Ø 6, Ø 8, ..., Ø 20mm
1x 250 gr. parting paste for flow punch forming
1x 0,5 l lubricant for thread forming
Due to the extreme thermal fluctuation and the radial load, proper clamping of the workpart and the flow punch former is critical. The warmth generated during the process must not be allowed to enter the spindle but instead must be deflected or cooled. Customary three-part chucks can cause breakage of the flow punch former if it is not clamped centrally!
For this reason a collet chuck with cooling ring was developed especially for flow punch forming with centerdrill, with which the heat can be dissipated ideally and a secure clamping can be ensured. For optimal concentricity and secure clamping, a special collet is used to locate the centerdrill.
Parting Paste
Moistening the centerdrill with our highly heat-resistant parting paste, matched to the respective material to be processed, is important for the service life of the centerdrill. The paste can be applied manually or with a spray device.
Lubrication during thread forming
The use of our lubricant is highly recommended during thread forming. It should be applied before each operation on the center- tap. Our lubricant is ecologically tested according to DIN.
For further details and more information, please visit our website.
|
|
|
|
|
|
HAIMER Collet chucks in different versions:
HSK, DIN 69871, JIS (MAS403)
SK 40 form ADB DIN 69871
Form ADB means: central coolant supply and coolant channels through the flange which can be sealed again
The Power Collet Chuck is the collet chuck for the highest machining capacity in high-speed manufacturing. The optimized design with better construction combines high rigidity with vibration dampening features, giving more protection to machines, spindles and tools. The universal Power Collet Chuck is a unique high performance chuck that can also be used with standard collets.
– High runout accuracy: 0.005 mm at 3 x D with Haimer Power Collets
– Also for standard collets ER according to ISO 15488 (formerly DIN 6499)
– High rigidity
– Smoother running thanks to vibration absorbing geometry, therefore better surface quality and protection of tools, spindles and machines
– Increased machining capacity due to higher spindle speed, higher feed and larger cutting depth
– Shorter processing times
– Higher machining accuracy
– High clamping force
– Equally suited to high-speed manufacturing and heavy milling
|
|
KC Key-Operated Collet Chucks
This is the simplest and most accurate of the chucks in the range. The chuck mounting and collet cone are made in one piece which ensures maximum accuracy. The operating key provides sensitive control of the gripping force and there is also provision for tommy bar operation.
Maximum capacities 38.1, 50.8, 63.5mm.
|
|
|
We manufacture millions of excellent quality geared and rapid-action chucks, which is only possible using the most modern manufacturing and assembly technology. As links between the machine and the clamping tool, we can offer tapered mandrels, reducing sleeves, extension sleeves, drill and reamer extensions, short clamping chucks, adjustable adapters and split taper sockets. Quick, robust and accurate, Röhm offers NC tools such as draw-in collet chucks, precision short drill chucks, hydraulic expanding chucks and the induction shrink technology for clamping HM and HSS tool shafts.
|
|
Double E Safety Chucks hold shafts safely in place for winding. Some of the safety chuck benefits include:
Jaw design compensates for shaft deflection; safety chuck does not bind.
Sliding action sharply reduces possibility of finger jamming.
Patented push button ensures roll security and operator safety.
Patented circular engagement allows high torque while reducing noise and vibration.
Removable jaws extend chuck life; easy and inexpensive to replace.
Easy cross-reference for replacing existing safety chucks.
|
|
KOMET® Adapters
As the interface between the tool and the machine, adapters have a great influence on the result and the economy of the complete machining process. KOMET® tool adapters offer a comprehensive range for every requirement.
Your PLUS:
- Maximum tool changing accuracies
- Perfect static and high radial rigidities
- Ideal dimensions
- Low weights
- Productivity improvement
- ABS® modularity
KOMET® Adapter range:
- HSK adapters
- Steep-angle taper adapters, SK
- KOMET ABS® adapters
- Flange adapters
- VDI adapters
- Hydro-expansion clamping chucks
- KOMET KomLoc®
- THERMOGRIP® shrink-fit chucks
|
|
NC-Drill ChuckF
1. It is available in capacity of 1 to 13 mm / 3 to 16 mm, with BT shank (MAS 403); SK shank (DIN-69871), and HSK63 shank (DIN 69893).
2. The integral shank makes this chuck more suited to CNC machine applications because overall length is shorter than that of normal keyless drill chuck mounted with an arbor.
3. The Integral shank provides greater accuracy and eliminates the possibility of the chuck slipping on an arbor.
4. Balanced.
|
|
Nexen's line of rugged safety chucks provide roll shaft support and torque transmission at a low cost. The maintenance-free design ensures optimal performance throughout the life of each safety chuck. Nexen's units safe-guard your equipment by securing the roll shaft in place during any wind or unwind operation. The safety chucks will only open with the socket in the upright position.
Features include:
Redundant safety mechanisms securely lock shaft in place
Long, maintenance-free life
Manual unlock for most models
Free-turning precision ball bearings
Finger guards on all models
Shaft extension with keyway
Foot or flange mounting
Metric size sockets available upon request
Available in ready-to-assembly brake packages
Ideal for the following industries:
Converting
Printing
Rubber
Film
Foil
Paper
Plastics
Textiles
Rope/cable/wire
|
|
- HP3 drill chuck has 4 times the holding power of standart chucks.
- T.I.R. of only 0.0008"
- Balanced for high speed opertion to 10,000 RPM.
- One-piece design for additional strength and safety (chuck will not come off during operation).
- Each taper is precision ground to a tolerance of AT3 or better!
- All products are backed by our 100% satisfaction guarantee.
Advantages:
- Flexibility (allows you to run non-standard shank sizes )
- No need to buy collets and nuts
- Fast and easy tool changes
|
|
Techniks Jacobs taper type S drill chucks feature extremely high accuracy and precision design, suitable for milling CNC machines and machining centers.
All parts are precision ground, heat treated, surface treated under specific QC conditions to the highest standard.
|
|
|
DURO-key bar chucks and plane spiral chucks (DIN 6350 und DIN 6351) are successfully used wherever extremely high tension forces, high concentric accuracy and reliable continuous repeatability are needed. The three-jaw DURO key bar chuck is characterised by its very high tension force and accuracy, which is twice a high as prescribed in DIN 6386. The running and run-out accuracy of our three- and four-jawed plane spiral chucks meets DIN 6386, Part 1, Accuracy Class I. In order to machine large and heavy workpieces at the highest possible cutting capacity, optimum clamping is required using great forces. Röhm plane disks, with a diameter of up to 4500 mm and their indisputable merits have proven themselves here.
|
|
Forkardt Index
Indexing chucks are intended for use where the customer needs to machine several axes on the same work piece. Used primarily in turning operations, the index chuck provides the customer extensive savings in setup reduction
|
|
|
Modern RÖHM clamping systems such as power chucks, clamping cylinders, tool clamps, back rests and driven tools are characterised by their performance and high technical standards. Modern clamps, required for the manufacture of high-quality products, are used in different manufacturing processes.
|
|
|
|
|
|
ITW Workholding offers a wide range of diaphragm chucks used in finish turning / hard turning and grinding applications. If you need a standard diaphragm chuck or a special designed diaphragm chuck, ITW Workholding can meet your needs. Product offered include:
Woodworth Pitch Line Diaphragm (shown) - This chuck offers quick change jaws for less than 5 minute part changeover. Used where a limited amount of gears are manufactured.
Woodworth Universal Gear Diaphragm - The best chuck for turning or grinding gear inside diameters, over a wide range of parts. Can be designed to meet your needs.
Woodworth shell style diaphragms - Used in grinding and some finish turning applications, the Woodworth shell diaphragm offers long life and high accuracies. Offered in standard and special designs. (See Pride Engineering Video for an example of the Woodworth Dovetail Diaphragm)
Sheffer style flat diaphragm - The sheffer style diaphragm is used in secondary turning applications and is designed and built to suit your process.
|
|
VC Quick change Jaw system VC
The quick change jaw system VC is as simple in handling as effective in reduction of the set-up time. In spite of the same repeatability and less space requirement - compared to general mounting systems - very high clamping forces are permitted as well. Therefore, this quick change jaw system in connection with a high-quality chuck represents an economic problem solution to improve productivity.
Advantages at a glance:
- Jaw change within seconds
- For I.D. and O.D. clamping
- Jaw change system easily to be realised automatically
- Best repeatability
|
|
- Selftightening feature automatically increases gripping power.
- Extremely rigid construction more superior than traditional design and prevent Drill Chucks from falling out.
|
|
SBK
Quick Change Drilling Chuck and adaptors for drilling, counterboring, reaming and tapping on drilling and special purpose machines.
: Ø2-Ø13mm,M4-M48
ASR
Stub Drill Tool System for drilling and countersinking with HSSE and HM stub drills on special purpose machines and transfer lines.
: Ø1-Ø26mm
ASBA - ASBV
Attachable Quick Change Drilling Chuck for drilling and counterboring on special purpose machines and transfer lines with spindles to DIN 55058.
: Ø12-Ø48mm
MSB
Quick Change Drilling Chuck and adaptors for drilling and counterboring on special purpose machines and transfer lines.
: Ø1-Ø9mm
|
|
A new line of safety chucks is now available from Re s.p.a. Designed for both foot or flange mounting styles, the range can support reels up to 1600 Kg in weight.
Features are as follows:
flange opening is at top central position for easy operator access, and to avoid the disassembly of the opening button in the DX or SX safety chucks;
a safety button first needs to be pushed in before the flange will open. Designing the button to be pushed eliminates potential accidental opening by centrifugal force;
components are finished to a high quality, with the safety flange being dynamically balanced and chrome plated as standard;
the inserts are replaceable and designed in a variety of shapes and sizes such as alveolar, square, round-square.
|
|
ITW Workholding offers N.A. Woodworth and Forkardt special design workholding. Using both product offerings, ITW Workholding can design workholding to handle your turning, milling or grinding process.
To provide you with a quote, please supply part print, all process information including:
Type of process (turning, milling, grinding)
Type of machine
Surfaces being machined
Preferred actuation
Quantity of chucks required
|
|
F-Tool PIN center chuck
The PIN center chuck is a compact reference system and is able for the collet of electrodes and work pieces. It‘s also the base of the F-Tool PIN ZeroPoint centering system. The centering, respective the positioning happens in two steps. The first step is the pre-centering with the PIN centering bolt. The precise centering is done, if the cone of the spigot is intervening on the flexible centering plate, and the piece is drawn to the clamping area. With the intervention of the PIN index 8 mm into the cross slot, the angle coat is defined.
|
|
|
EROWA workholding systems very versatile and may be used for various applications. Pallet sizes, retaining force and positionning accuracy are features to consider.
|
|
|
EROWA workholding systems very versatile and may be used for various applications. Pallet sizes, retaining force and positionning accuracy are features to consider.
|
|
|
|
