Circular columns
Steel formwork for round and oval columns
* Absolute tight due to the special design of the vertical joint with overlap of the plywood
* Oval columns and semi-circular stop-ends with connecting panels to
* Modular formwork
* Working platform for security during concrete work
* High use rates, no cost for refuse collection
* No reduction of concrete speed for small diameters
Panel heights (cm): 300 / 275 / 150 / 125 / 75
Diameter (cm): 100 / 90 / 80 / 70 / 60 / 50 / 45 / 40 / 30
35 / 25
Plywood: 3 mm steel sheet
Max. concrete pressure: 85 kN/m² according DIN 18218 (Ø 100 cm)
335 kN/m² according DIN 18218 (Ø 25 cm)
|
|

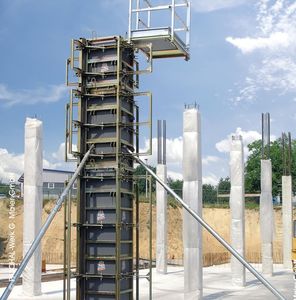

Adjustable columns formwork Grip for excellent forming times and high demands for exposed concrete
* For forming and dismantling only the tensioners on one side have to be opened resp. closed
* Moving with only one crane cycle (folding mechanism)
* Simple fastening of working platforms and adjustable props
* Little transport volume due to foldable wings
Panel heights (cm): 340 / 300 / 150 / 90
Adjustable range: 20-60 cm, in 5 cm steps
Plywood: 21 mm plastic covered birch plywood
Max. concrete pressure: 80 kN/m² according DIN 18218
|
|
TITAN Column Forms
Titan SF100 column clamp system
Säulenformen TITANColumn clamps are assembled with 4 no. bolted corners and 4 no. hinged for ease of striking on a typical 3.0m high
column.
‘L' sheped column shutters are then crane handled and refixed by only 4 no. tie bars.
The individual column arms of 1.0m and 1.37m can be used in isolation as formwork soldiers on stop-end and foundation shutters.
* Large supporting length. i.e. for 5.4m column height only 4 column clamps required.
* Labour costs reduced for each transfer & re-fixing.
* Designated for maximum concrete pressures.
* Universal clamp for all column dimensions.
* No sanding of edges required.
* Available as a complete column formwork system incl. clamps, plumbing props, concreteing chutes, working platforms and lifting hooks.
* Formwork can be stripped diagonally and transferred in two halves
|
|
|
The ideal choice when large numbers of columns with varying cross-sections have to be formed on schedule and economically.
|
|

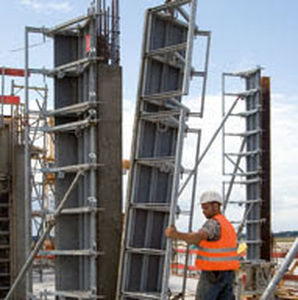

The column formwork Caro- Falt consists of four identical panels with articulated links which are assembled like a windmill. The CaroFalt can be used with or without triangular strips to form either sharp or smooth edges.
Adjustment of column section
Thanks to the perforated rail it is easy and fast to adapt the column section from 20 cm to 60 cm in increments of 5 cm – square or rectangular.
|
|
|
|
|
|
Post Wings of Mill: A design multi-sections for a multifunction tool.
VERSATILITY
Design of brackets of bolted reinforcement
0.50 m heights to 9.80 m per superposition of the various elements
SAFETY
Stabilization with the wind ensured by stabilizers various heights according to the configurations
QUALITY
No the hole in sheet metal casing for a better quality of the facing
Seal of sealing incorporated in the panel
Option
Articulations between the 2 half-shells, wheels of translation for an handling of the post.
A tool allowing to carry out all sections of the square or rectangular posts to the step of 2.5 cm:
TYPE 700: of 0.10 X 0.10 m with 0.625 X 0.625 m
TYPE 700 and 1075: of 0.10 X 0.475 m with 0.625 X 1.00 m
TYPE 1075: of 0.475 X 0.475 m with 1.00 X 1.00 m
TYPE 875: of 0.175 X 0.175 m with 0.80 X 0.80 m
The formwork post is designed containing 2 principal elements:
1 - Panels casing out of sheet metal ép. 4 mm
2 - Brackets of reinforcement with adjusting device of squaring
Each post consists of 4 panels assembled in two "half-shells" via brackets.
The 2 "half-shells" are assembled between them by screws and nuts with fast step, unlosable.
|
|
