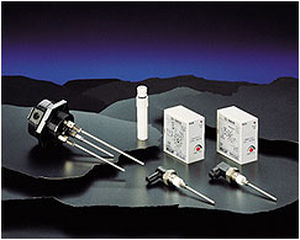

This instrument is suitable for controlling the level of a large
number of electrically conductive liquids (water, chemical solutions
and solid conductive materials) and can be used in the chemical
textile and wine making industries as well as civil and industrial,
plants irrigation and water treatment.
-Supply voltage: 110/220 Vac (CL1001/U type)
-Supply voltage: 24-110-220 Vac (CL1001/0 type)
-Relay output with 1 pole changeover 5A to 220 Vac
-Sensitivity adjustment from 2 to 40 Kohm (higher upon request)
-Plastic housing with OCTAL or UNDECAL plug
-Type CL1001-R5 with wave delay
-Type CL1002 with relay output 2 pole changeover 5A to 220 Vac
-Led incorporated
-Detector CL1N is used for level control of wells and tanks
-Detector CL-A with stainless steel and teflon housing for high
pressure and high temperature applications (boilers, autoclaves).
These can be supplied with standard electrode lengths
100/500/1000 mm.
-Two pole detector type CLK-A with stainless steel body supported
by a teflon coated element provided with a three pole connector
for the electrical connection, two poles are connected to the
electrode and the third earth pole is connected to the thread
stainless steel holder.
-Three pole detector CL3-A with plug for three electrodes
|
|

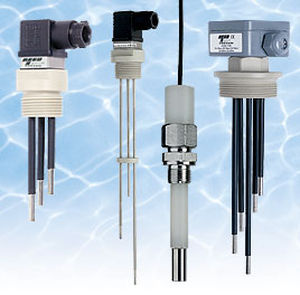

Conductive level probes NS.../NT...
A simple solution to check the level
Specifications of the standard materials :
PTFE compound, stainless steel, hastelloy or titanium
Available with 2 to 5 rods for detection of 1 to 4 different levels and with or without an integrated température sensor
|
|
|
|
|
|
Sitron´s line of Conductive Level Switches offer a wide range of customized options to meet any application's need. CL models are designed to control the level of all conductive liquid mediums with up multiple points of level detection. Models are available with Fixed rigid rods, Removable rigid rods, or with Pendular electrodes attached to the housing with cables. Applications involve both alarm point level detection as well as on/off pump valve control. Like all of Sitron's products, the series of Conductive Level Switches feature easy installation and maintenance free reliability.
Models:
Sitron has several types of conductive switches:
*The CLF has fixed rods and is available with up to five points (or more upon request) of level detection and control.
*The CLR has removable rods designed for easy handling and installation and is also available with up to five points (or more upon request) of level detection and control.
*The CLP has pendular electrodes designed for deep well or tank applications and is also available with up to five points (or more upon request) of level detection and control.
*The CLE is a single pendular electrode without the enclosure or the process connection.
These models are all used along with a (BS16 or CN16D) external controller .
|
|
Conductive level sensor
Fields: Chemical and Petrochemical Industry
Food and Beverage Industry
Pharmaceutical and Biotechnical Industry
- Wetted parts in acid-proof, stainless steel and PEEK
- Compact, food compatible, hygienic design
- 3A approval/FDA and EHEDG compliant
- Precise switching point without calibration
- Process temperature -20...85°C
- Measures alternating media
- Not influenced by foam
- LED level monitor
- Maintenance free
- Ex nA II T5, ATEX II 3G
|
|
- For heavy-duty
- Connection cable with the length of 3m or as required
- 1 - 7 electrodes
- Case moduled
- Protection class IP 68
- Electric interface through a factory mounted cord with numbered wires
|
|
So that the customer gets the best equipment solution according to his requirements, we recommend this simple
procedure using the following pages:
• Define the dimension of the fitting or interface (e.g. thread G2“, DIN-flange DN25/PN16, etc.)
• Determine the electrical connection (e.g. terminal box, cable entry, plug, etc.)
• Find out the operating conditions, min. and max. operating pressure, temperature and specific gravity of
the media at the max. operating temperature.
• With the size of the fitting and material of the instrument, a guide specification can be selected on pages
105 to 107.
• The full and final specification can now be generated by reference to the „type key“ on pages 108 to 109.
• With the type description and the technical operating conditions a price quotation can be made or the
instrument can be ordered.
• Specification of the requested approval.
|
|
