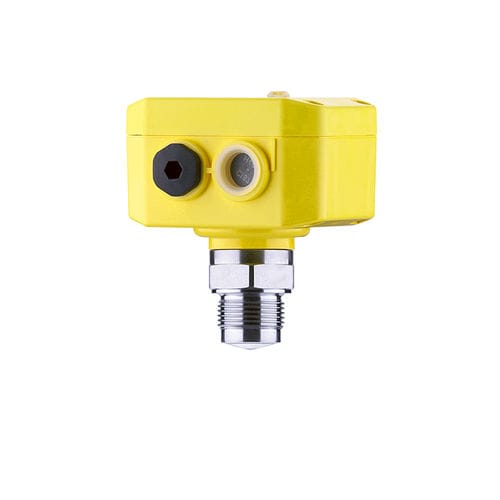

Conductive level limit switch VEGAKON 61

for liquidsstainless steelthreaded

Conductive limit switch for liquids for front-flush mounting Compact level switch with partial PTFE insulation Application area For front-flush installation. The instrument is ideally suited as full or empty detector in pipelines. The VEGAKON 61 is a condcutive limit switch for conductive liquids. The instrument is best suited as full and empty detector in pipelines. Your benefit Optimum cleanability through front-flush mounting Maintenance-free operation through probe insensitive to buildup Time and cost-saving setup without adjustment with medium Measuring range - Distance - Process temperature -40 ... 150 °C Process pressure -1 ... 25 bar Version Compact version Materials, wetted parts PTFE 316L Threaded connection ≥ G1, ≥ 1 NPT Hygenic fittings Cone DN25 Seal material no media contact Housing material Plastic Protection rating IP66 Output Relay (DPDT) Transistor (NPN/PNP) Ambient temperature -40 ... 70 °C
