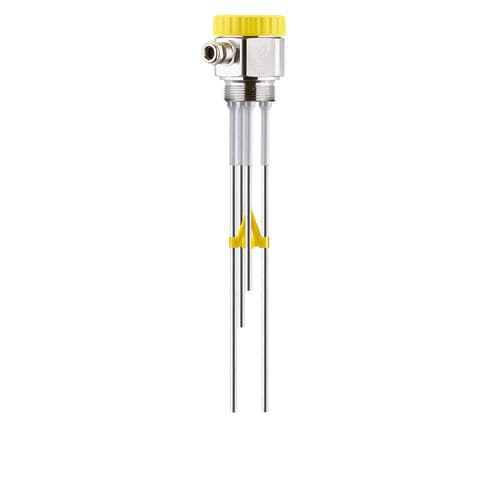

Conductive level switch EL 3
for liquidsthreadedmulti-point

conductive level switch
conductive level switch
Add to favorites
Compare this product


Characteristics

Technology
conductive
Medium
for liquids
Mounting
threaded
Other characteristics
multi-point, maintenance-free, precision, stainless steel, plastic, IP67, IP66
Process pressure

Min.: 0 bar (0 psi)

Max.: 63 bar (913.74 psi)

Process temperature

Min.: -50 °C (-58 °F)

Max.: 130 °C (266 °F)

Description

Conductive multiple rod electrode Rod electrodes with PTFE insulation Application area With 2 to 5 rods, a corresponding number of switching points between 5 cm and 6 m can be realized. Extended temperature range through PTFE insulation. A VEGATOR 130 series controller is required for operation. The multiple rod electrode EL 3 is a universal level switch for conductive liquids. The instrument is ideal as overfill and dry run protection or pump control in conjunction with VEGATOR 132 controllers. Your benefit Simple setup with minimum time and cost expenditure High flexibility through shortenable probe Maintenance-free through robust design Process temperature -50 ... 130 °C Process pressure -1 ... 63 bar Version with 2 rod electrodes with 3 rod electrodes with 4 rod electrodes with 5 rod electrodes Materials, wetted parts PTFE 316Ti (1.4571) Alloy C4 (2.4610) Threaded connection G1½ Seal material no media contact Housing material Stainless steel (precision casting) Protection rating IP66/IP67 Output For connection to a controller Ambient temperature -40 ... 80 °C
