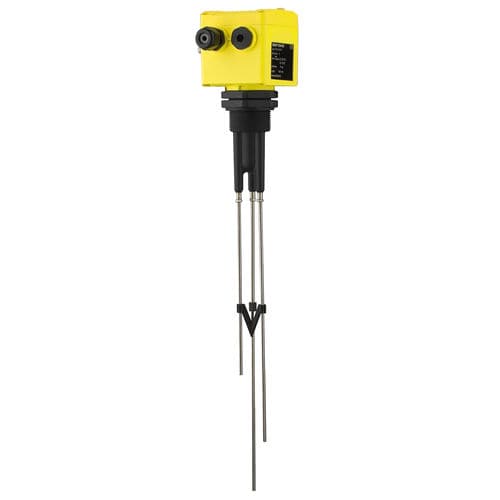

Conductive level limit switch VEGAKON 66
for liquidsthreadedstainless steel

conductive level limit switch
conductive level limit switch
Add to favorites
Compare this product


Characteristics

Technology
conductive
Medium
for liquids
Mounting
threaded
Other characteristics
stainless steel, aluminum, plastic, multi-point, IP66, IP67
Process pressure

Min.: 0 bar (0 psi)

Max.: 6 bar (87.02 psi)

Process temperature

Min.: -40 °C (-40 °F)

Max.: 100 °C (212 °F)

Description

Conductive multiple rod limit switch for liquids Multiple rod level switch with PP insulation Application area With 2 to 3 rods, a corresponding number of switching points between 12 cm and 4 m can be realized. The VEGAKON 66 is a conductive limit switch for conductive liquids. The instrument is suitable as full or empty detector in pipelines. Your benefit Reliable pump control through multiple rod probe Reduced stock-keeping through exchangeable rod probes High flexibility through shortenable probe Process temperature -40 ... 100 °C Process pressure -1 ... 6 bar Version with 2 rod electrodes with 3 rod electrodes Materials, wetted parts Alloy C22 (2.4602) PP 316Ti (1.4571) Threaded connection G1½ Seal material no media contact Housing material Plastic Aluminium, plastic-coated Protection rating IP66/IP67 IP66 Output Relay (DPDT) Transistor (NPN/PNP) Ambient temperature -40 ... 70 °C
