KF-MED SK11
maximum protection against unintentional actuation at minimum dimensions
high mechanical stability
non-contact switching systems
reed contacts for small currents
digital or analogue output signals
class AP
GM (approved medical device, TÜV)
plug-in connector
pressure point
special labels
different RAL colours
|
|
|
|
|
|

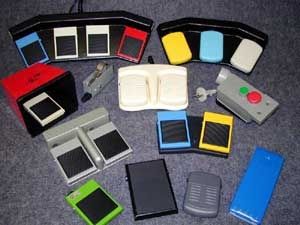

Food switches are mounted on machines and plants in cases where operation using the hands is not possible. They are used to start and stop operations and production processes.
Depending on the environmental conditions and mechanical duty, differing versions of food switches are used. The robust GF and GFS range switches are generally used in the engineering industry, e.g. on presses, punching and bending machines as well as in sheet-steel processing. Applications for the plastic KF range switches include use on laboratory apparatus, in the electro-medical area and on textile machinery.
Design and mode of operation:
All the foot switches are available in versions with multible pedals. GFS range switches are mounted with a shield to protect against unintentional actuation. GF and GFS range switches are mounted with slow or snap action or Hall sensors. GF-Ex and GFS-Ex range switches are EEx approved under the Certificate of Conformity PTB Ex-89.C.1051. The Ex 13 contact block carries the designation EEx d IIC T6.
|
|
|
The IEC 60601-1 describes the general safety requirements for foot controls for dental applications. The special features of foot controls for these applications: Use of multi-function elements, »joypad« for adjustment of the chair position; revolution control via lever or foot pedal; protective/carrying handle with emergency-stop function; protection class up to IP X8 for operating applications (class AP); actuating elements in different variations.
|
|

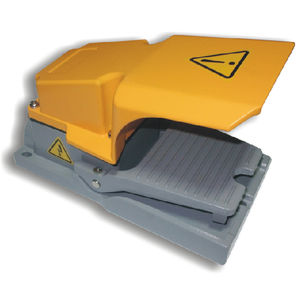

Foot switch GFS NA
With emergency-stop push button
Max. 4 contacts
Metal enclosure
With protective shield
High level of stability
Low pedal height
Wiring compartment
Available with special finish in RAL colour tones
|
|
|
For the actuation of high frequency surgery devices, foot-operated control devices are applied. The requirements for these control devices are prescribed in EN 60601-1, as well as in EN 60601-2-2. Foot controls for this application field are characterised by defined requirements for the protection class, as well as mechanical stability. Electrostatic charging must be avoided. The requirements for class AP (anaesthesia approved) might also be relevant. In this case the foot controls are gas-proof encapsulated (zone M). The main actuating elements are a yellow pedal (activation »cutting«) and a blue pedal (activation »coagulating«).
|
|
|
|
|
|
high mechanical stability
non-contact switching systems
reed contacts for small currents
digital or analogue output signals
additional push-buttons
LEDs
hinged stainless steel protective bracket
wireless signal transmission
class AP
GM (approved medical device, TÜV)
plug-in connector
pressure point
special labels
different RAL colours
Photo shows optional accessories
Medical personnel in doctors' surgeries and operating theatres literally have their hands full for much of the time, and for this reason foot-operated switches are often called for. steute has successfully specialised in this complex field of medical technological applications, offering, in addition to a wide range of standard modular products, a wealth of customer-specific actuators for medical devices and equipment. Some of these switches are extremely complex. They ful-fil the highest demands regarding ergonomy and availability.
Our actuators fulfil all the normative requirements made of medical products and all bear the label "approved medical product". steute's success in this highly specialised field is due to a combination of close cooperation with our customers and best quality production. steute's medical range also includes innovative technologies, such as wireless switchgear using a Bluetooth signal transmission protocol especially modified for medical technology.
|
|
|
Besides the IEC 60601-1 the IEC 60601-2-22 must also be observed for foot-operated control devices for diagnostic and therapeutical laser devices . This standard demands, for example, high requirements for mechanical stability. It requires protection against unintentional actuation and prescribes specific actuating forces. Besides this, certain protection classes – depending on the appropriate application – are determined according to IEC 60529. A mainly redundant design of the switching elements, as well as details concerning the cable and its entry at the foot-operated control device, also belong to the requirements.
|
|
Metal enclosure
1 or 2 pedal
With protective shield
Max. 4 contacts per pedal
|
|
The general requirements for control devices for operating beds and chairs are described in the standard IEC 60601-1. As far as published, the appropriate product standards must be considered.
The main features of foot controls for this application field: A defined minimum requirement for mechanical stability; defined requirements for protection class; partly redundant design of switching elements; an integrated interface on request; use of multifunction elements.
|
|
Radio foot switch
with or without protective shield
low energy and radio emission
works without battery and totally self-sufficient
different coulours according to RAL
|
|
|
Output can be mechanical, electronic, hydraulic, medium or heavy duty throttle controls. Variety of pedal styles used for trucks, construction, landscaping, farm equipment and buses. When used with available throttle cable, offers a quick and easily installed complete system.
|
|
600 SERIES - INDUSTRIAL CONTROL
Industrial Explosion Proof foot switch Series 600 offers added environmental protection against water and oil, through the addition of sealing 0-rings on the pivot rod and between the cover and base. This is accomplished by increasing the thickness of the housing walls, without negating the integrity of the metal to metal contact required to qualify as explosion proof. The same specifications apply for the 600 Series as detailed above for the 500 Series, except for a modest increase in weight.
500 SERIES - INDUSTRIAL CONTROL
Nonsparking cast aluminum housing. Aluminum full guard with integral base plate painted Alert Orange. All models supplied with a 3/4"-14 N.P.T. threaded rigid metal conduit entry and mounting provisions in the base plate. The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time.
|
|

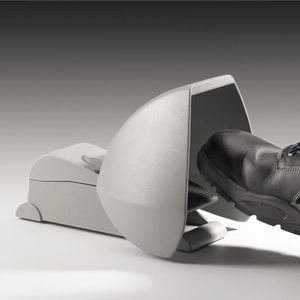

Single and modular multiple foot switches PA, PX and PC series

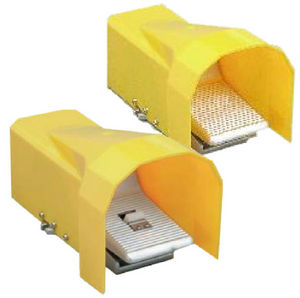

Pizzato Elettrica extends its foot switches offer by introducing a version with additional metal protection, ideal for hard work environment, suited for safety shoes and provided with hole for carrying rod.
Furthermore it has been extended the coloring range for plastic protections, now available in yellow, red, grey, blue and black.
Pizzato Elettrica single foot switches are available in numerous versions and they introduce a particular characteristic of combination.
Using the joining kits (patented) it is possible to connect different single foot switches or to join them to button boxes.
The joining kits offer a strong mechanical connection and at the same time they create a sealed passage for the wires between the foot switches.
|
|
Pedal Switches
Strong aluminium housing. The unit is operated through a red, non-skid pedal which is covering the whole switch. An oil and chemical-resistant rubber membrane protects safely against dust and humidity (protection type IP65). Stroke limitation avoids mechanical overloading.
Aluminium pedal switches, modular contact blocks inside allow various contact possibilities.
|
|
|
Foot operated switches available in single, wide, and twin variations Momentary and maintained action. SPDT, DPDT and 2-stage operation available. SIngle and twin versions have optional full guards available.
|
|
|
Linemaster offers a wide variety of multi-pedal foot switches in both standard and special configurations. We offer guarded and unguarded versions, IP20 to IP68, SPDT and DPDT and with or without cordsets.
|
|
|

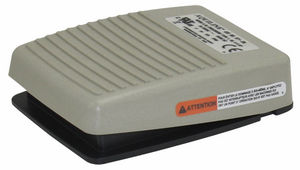

The Linemaster Aquiline foot switch is available in both a polymeric housing and a metal housing, momentary or maintained action and single, twin and triple variations. The Aquiline is available in IP68 versions, offered in a variety of colors and wired or unwired models. Special variations are also made to customer specifications.
|
|
Introducing Linemaster Throttle Controls.
There are numerous applications for these controls, including use in various types of electric vehicles where accurate control of speed is required. Linemaster offers a rugged construction for long life, ergonomic friendly designs and ease of operation. If you have an application that requires a throttle control, please contact our Customer Service Department for details at 1-860-974-1000.
FEATURES:
Weather resistant components
Auxiliary Switch(es)
Retrofit Installations
Custom Cordsets
Mounting & Linkage Configurations
Arm Configuration
|
|
|
|
|
|
500 SERIES:
Environmental Ratings:
CLASS I, DIVISION 1, GROUP D
CLASS II, DIVISION 1, GROUP F & G
CLASS I, ZONE 1, GROUP IIA
NEMA Type 2, 7D & 9F
UL ENCLOSURE 2
IP41
Nonsparking cast aluminum housing. Aluminum full guard with integral base plate painted Alert Orange. All models supplied with a 3/4"-14 NPT. threaded rigid metal conduit entry and mounting provisions in the base plate. The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time.
Size: 10-1/4" x 11" x 4-3/8"
Weight: Approx. 7-3/4 lbs.
600 SERIES:
Environmental Ratings:
CLASS I, DIVISION 1, GROUP D
CLASS II, DIVISION 1, GROUP F & G
CLASS I, ZONE 1, GROUP IIA
NEMA Type 2, 3, 4, 6, 6P, 13, 7D & 9F
UL ENCLOSURE 2, 3, 4, 6, 6P, 13, 7 & 9
IP68
Meets IEC 601-2-2
Driptight - Dusttight - Watertight - Oiltight
Industrial Explosion Proof foot switch Series 600 offers added environmental protection against water and oil, through the addition of sealing 0-rings on the pivot rod and between the cover and base. . The same specifications apply for the 600 Series as
detailed above for the 500 Series, except for a modest increase in weight.
|
|
|
|
|
|
500 SERIES - MEDICAL EQUIPMENT
Nonsparking cast aluminum housing. Aluminum base plate with nonskid conductive rubber base pad. Both models prewired with potted connector MS-3102R-18-4PW. Two pedal model wired with an electrical interlock and supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time. Foot switch painted black.
600 SERIES - MEDICAL EQUIPMENT.
Medical Explosion Proof foot switch Series 600 is a UL Listed construction that allows the addition of sealing 0-rings on the pivot rod and between the base and cover. This is accomplished by increasing the thickness of the housing wall, without negating the integrity of the metal to metal contact required to qualify as explosion proof. The same specifications apply for the 600 Series as detailed for the 500 Series, except for a modest increase in weight and the mating connector required. Use mating connector MS or ~ which includes cable clamp, or CA-06R-18-45W-(Al 05)~(F74)* which includes cable clamp.
|
|
|
|
|
|
Developed for reliable operation in a variety of environments. Conforms to UL Recognized Component Mark for Canada and the United States. All steel housing protects air bulb.
Tubing used is reinforced and connected to the foot switch with a molded grommet for pull-out protection. Remote switch has bulkhead mounting provisions. Wide operating temperature range. Twin foot switch models available. Can be mounted in a full guard.
Medical grade tubing is available
Size: 2.9" x 2.5" x 1.3" Weight: Approx. 1.0 lbs. (0.45 kgs.)
The new AIR-SEAL foot switch series combines a foot operated air bulb mounted in our strong, steel COMPACT housing and a remotely located air operated electric snap switch.
The AIR-SEAL is available in either momentary or maintained versions, with SPDT snap
switch. A 10 foot 1/8" ID PVC tubing connects the foot pedal to the remote air switch,
which is equipped with a 9/16" NF bulkhead mount. The tubing is connected at the foot
switch end using a molded on strain relief grommet providing superior pull out
protection. The AIR-SEAL can
also be mounted in the Linemaster Full Guard 522-B14 for
those applications which require full guarding of the foot switch pedal.
|
|
|
|
|
|
The Varior Potentiometer foot switch was designed as a low cost foot control where a non-watertight housing is suitable. Four standard prewired 2 Watt linear models are available. The momentary models have a spring return pedal action, and the maintained models have adjustable friction pads. Maximum resistance must be specified when ordering. The foot switch has a drawn steel housing with black cover, complete with full treadle pad and nonskid base pad.
Also available in our heavy duty Hercules housing:
HERCULES POTENTIOMETER FOOT CONTROL
Environmental Ratings:
NEMA Type 1, 2, 4 & 13
Driptight - Dusttight - Watertight - Oiltight
EN 60529 Degree of Protection IP56
This foot switch is designed for use with variable speed motor drives and is available in selected 2 watt linear values. Specify the maximum resistance you want. Depressing the treadle rotates the potentiometer from zero to the selected maximum resistance shown below. By wiring to the third terminal it goes from the maximum resistance to zero. The treadle is spring loaded and returns to the normal position when the foot pressure is removed. A SPDT auxiliary switch contact rated at 15 Amps 125-250 VAC can be added to the control. The auxiliary switch will operate at the beginning of the treadle stroke. On special order, up to 3 SPDT switches can be added and adjusted for operation at any point of the treadle stroke. Details on switch size, weight, full shields and construction are the same as for the Hercules foot switches. "OX" Shield available
|
|
|
|
|
|
ATLAS
HEAVY DUTY FOOTSWITCH
Environmental Ratings:
NEMA Type 1, 2, 4, 6, 6P & 13
UL ENCLOSURE 1, 2, 4, 6, 6P & 13
IP68
IEC 60601-2-2
Driptight - Dusttight - Watertight - Oiltight
Key Benefits
Foot switch developed for worldwide application
Snap action - SPDT and DPDT with forced disconnect (positive break) on NC contacts
Slow action mechanism with forced disconnect on the NC contacts - available as SPDT make before break or break before make
Direct PLC interface compatible (two-circuit bifurcated contact single-pole versions)
Galvanically isolated bifurcated contacts - NO and NC circuits can be wired to different loads and polarities
Foot switch has a rugged cast aluminum housing painted Alert Orange
Oversized "O" & "OX" shield models accept oversized safety shoes and metatarsal foot guards. The "OX" shield has an additional 3/4" (19.1mm) opening height as compared to the "O" shield
Single PG 16 threaded conduit entry is standard
U.S. and other international conduit sizes and side entry for twin or triple interconnect, available to the O.E.M. on special order
3 holes provided for rigid mounting to the floor or equipment
Size: 9" x 6" x 5-1/2"
Weight: Approx. 4-1/2 lbs. (2.1 kgs.)
|
|
|
|
|
|
HERCULES
HEAVY DUTY FOOTSWITCH
Environmental Ratings:
NEMA Type 2, 4 & 13
UL ENCLOSURE 2, 4 & 13
CSA ENCLOSURE 2, 4 & 13
EN 60529 Degree of Protection IP56
Driptight - Dusttight - Watertight - Oiltight
Rugged cast metal enclosure has sufficient weight to keep the foot switch from sliding when being operated. Potentiometer version also available.
All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw.
In all Maintained Contact models the release is accomplished by simply pressing the latch with a light forward movement of the toe. The release is placed under the Full Shield so falling objects cannot easily release it.
Oversize "O" Shield models accept oversized safety shoes and metatarsal foot guards. "OX" Shield also available
Special Dual 1/2" - 14 N.P.T. threaded conduit entry and metric sizes available to the O.E.M. on special order.
Special Twin models available to the O.E.M. on special order.
Painted Alert Orange.
Single 3/4" - 14 N.P.T. threaded conduit entry is standard.
3 holes provided for rigid mounting to the floor or equipment.
Size: 9" x 5-3/4" x 4-3/4"
Weight: Approx. 8 lbs.
|
|
Tailor-made for your applications – the mod ular foot switch concept from Bernstein!
Bernstein offers a wide range of foot switches to meet the exacting requirements found in industrial applications. With up to three pedals, with or without a safety cover (UN), the robust all-metal housing ensures a protection class of IP 65 as standard.
The modular design gives you the possibility of defining application-dependent pedal functions with up to four contact combinations per pedal.
Additional contact combinations and pedal functions, combined with basic housings and switching elements open up further control and operation variants. Complete units are also available for use in the explosion-protected area II 2G EEx d IIC T6 and the medical sector. Prefabricated foot switches are available on request.
|
|
|
This variable controller to be used on Universal AC/DC fractional horsepower motors. The 980-SC3 is rated 6 Amps at 125 VAC and the 981-SC36 is rated 4 Amps at 250 VAC
|
|
|
|
|
|
Introducing Linemaster's new infrared technology! The new IR Wireless System eliminates the nuisance of wires under foot while invisible infrared light waves fill the room with 360° of signal. And because it uses light rather than radio waves, it resists interference. So while all foot switches free the hands, the Linemaster IR System is so ingenious and so dependable, it will also free your mind. Only from Linemaster - American-made innovation at work.
Environmental Ratings:
EN 60529 Degree of Protection IP68 (Foot Switch)
Key Benefits:
- Range: Typically 40 feet
- Switch Functions: Maximum of 5
- Multiple systems can be operating at the same time in the same room:
4 separate transmitters and receivers, 2 separate transmitters and 2 receivers along with 2 transmitters paired to 1 receiver
2 sets of transmitters paired to 2 separate receivers
- Transmitter battery life: 200 hours @ 50 % duty cycle typical
- Power Consumption (Transmitter): Stand-by 100ua
- Power Requirements (Receiver): 6VDC @ 200ma
- Battery Powered Reciever optional
- Receiver Output: SPST relay, 0.5 amp contacts
- Low battery indicator
- Switch activation indicator(s)
- 360 degree transmitter
- Transmitter uses our industry proven Aquiline foot switch(es)
- No product calibration required - plug and go
- Uses industry standard batteries
- CE Marked
Certification
Classified to IEC/UL 60601.1 Medical electrical equipment by Underwriter's Laboratories, Inc with respect to fire, shock, and mechanical hazards in accordance with IEC/UL 60601.1.
Classified with respect to electric shock, fire, mechanical, and other specified hazards only, in accordance with Can/CSA C22.2 No. 60601.1
EMC Standards
EN60601-1-2: 2001
IEC 1000-4-2: 1995 Electrostatic Immunity
IEC 1000-4-3: 1995 Radiated Electromagnetic Field Immunity @ 10v/m
IEC 1000-4-4: 1995 Electrical Fast Transients Immunity
IEC 1000-4-5: 1995 Surge Immunity
IEC 1000-4-6: 1996 Conducted RF Immunity
IEC 1000-4-8: 1993 Power Frequency Magnetic Field Immunity
IEC 1000-4-11: 1994 Voltage Dips and Variations
EN 55011: 1998 Radiated and Conducted Emissions, Group 1 Class B
FCC Part 15 Radiated and Conducted Emissions, Class B
IEC 61000-3-2: 2000 Power Harmonics Class A
IEC 61000-3-3: 1995 + A1: 2001 Voltage Fluctuation, Section 5
Features:
- USB Compatible
- Easily replaces currently-used corded switches; just plug and go
- Long battery life
- No cord to restrict the user's movement
- Uses industry-proven Aquiline switches
SIZE:
Transmitter: 14.0"x10.0"x3.0"
Receiver: 5.0"x3.5"x2.75"
WEIGHT:
Transmitter: 5.5 lbs. w/ batteries
Receiver: .45 lbs.
|
|
adjustable pedal systems
Designed specifically for the heavy vehicle market,
the patented Teleflex adjustable pedal systems
have set a new standard for operator comfort,
convenience and control. Precision engineered and
rigorously tested for performance and durability,
these adjustable pedal systems have demonstrated
proven reliability as OEM standard or optional
equipment on school buses, RVs and Class A truck
applications.
|
|
Foot control FB301 & FB302 with actuator
For standing operation. Connecting cable 1560 mm.
1 pedal:
- FB301 Material No. 1113668 : Pedal only
- FB301 Material No. 4170013 Pedal incl. EB301 (for FKV and VarioDC drives)
- FB301B Material-No. 4170026 : Pedal incl. EB301 (for EfkaCompact drives, AB22xA,AB32xA,AB42xA, with 9-contact. Sub-Min-D plug)
3 pedals:
- FB302 Material No. 1113212 : 3 pedals only
- FB302 Material No. 4170018 : 3 pedals incl. EB301 (for FKV and VarioDC drives)
- FB302B Material No. 4170025 : 3 pedals incl. EB301A (for Efka compact drives, AB22xA, AB32xA, AB42xA, with 9-contact. Sub-Min-D plug)
|
|

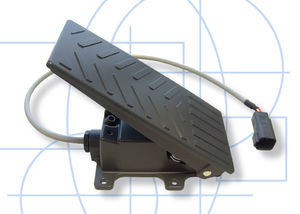

Foot Pedals
Ideal for tough environments such as material handling, Curtis foot pedals are used with Curtis electronic motor speed controllers, as well as models by other manufacturers. Designed for maximum installation flexibility and durability, these pedals are made of rugged aluminum castings.
|
|
|
|
