M732
XTX™ CELERON® M and PENTIUM® M with ATI M9™ GRAPHIC CONTROLLER
TECHNICAL FEATURES
CPU: Intel® Celeron® M
Intel® Pentium® M 1,8GHz
Chipset: Intel® 945GME
DRAM: up to 2GB DDR2 DRAM, on SO-DIMM socket
Graphic Controller & Video: ATI Radeon™ HD 2400 GPU
128 MB 64-bit DDR2/GDDR3 memory dedicated
Full support for Microsoft® DirectX® 103
ATI Avivo™ HD Video and Display Platform
OpenGL 2.0 Support
Up to 4x PCI Express Ports x1
USB: 6x USB 2.0
Ethernet: Fast Ethernet 10/100baseT
IDE interface: 2x ATA UDMA5
SATA interface: 2x
Audio: AC97 or HD Interface
PS/2 mouse and professional keyboard
Watch Dog Timer
Real Time Clock with backup battery
Temperature, professional fan speed and voltage monitoring
Dimensions: 114 x 95 mm (4.5” x 3.7”)

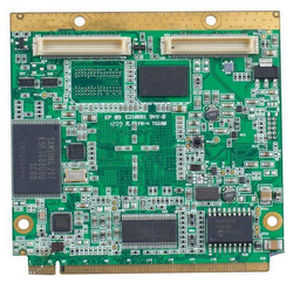

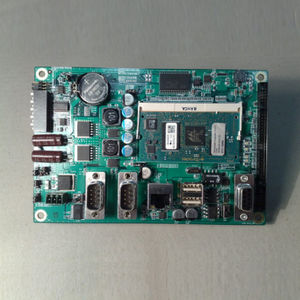

Targeting next generation embedded processors built using 45nm such as Intel® Atom™ platform and VIA Technologies Inc. Isaiah at 65nm, the Qseven format will complement the low power and small size of these processors. By exploiting the small form factor of the industry’s latest processors, the Qseven format offers high performance professional computing power, delivered in a board measuring just 70mm x 70mm.
The Qseven platform has been developed with performance and flexibility in mind, allowing various processor configurations to maximize passive cooling technology. With a maximum power consumption of around 12W specified in the standard, the new form factor is expected to appeal to manufacturers of applications that require fanless operation. Where heat dissipation is an issue, a thermal cooling interface has been defined to help transfer any heat generated to a cooling solution.
It will also provide extensive connectivity through industry standard interfaces, including: 4x PCI Express; 2x SATA; 6x USB 2.0; 1x 1000BaseT Ethernet; 2x SDIO 8 Bit; LVDS 2x 24 Bit; DVO/SDVO (shared); VIP (Video Input Port); HDA (High Definition Audio); I²C Bus; LPC (Low Pin Count Bus).
The innovative form factor offers unparalleled flexibility in configuration. By leveraging the Mobile PCI Express Module (MXM) connector specifications format, Qseven offers three different connector heights, from 4.3mm to 7.8mm. Through this configuration it is hoped the Qseven platform will be as simple to integrate as a DIMM professional memory module.
Flexible I/O for SCADA, Sequential Event Reporting, and Station Integration. Add up to 37 inputs and outputs to an SEL-2032 system. The base unit includes three digital outputs and two digital inputs. Use each of four card positions for one of the following I/O cards: eight analog inputs for dc process values (One card maximum), eight digital inputs to sense status of contacts, eight digital outputs to control external devices. Time-Tagged Sequential Events Recorder (SER). Store up to 512 SER reports of digital input transitions, time-tagged to the nearest millisecond. Send the SER data to a communications processor for system analysis and troubleshooting.
