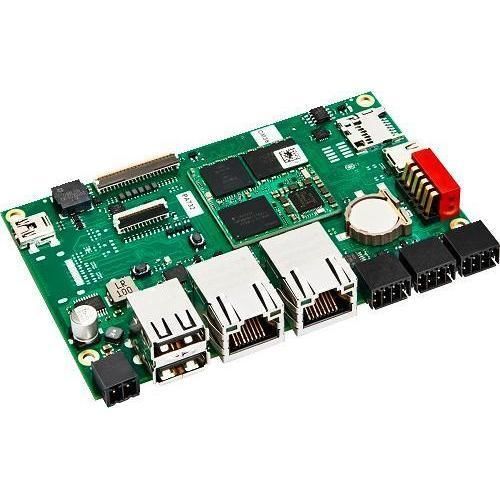

Mini PCIe CPU board BL i.MX93

NXP i.MX93Dual core Arm Cortex-A55SD card

The Baseboard BL i.MX93 is a powerful and cost-effective solution, ideal for machine learning applications. It is equipped with the NXP i.MX93 processor, featuring 2x Arm® Cortex®-A55 cores running at 1.7 GHz, 1x Arm® Cortex®-M33 at 250 MHz, and 1x Arm® Ethos™ U-65 microNPU. The board comes with 2 GByte LPDDR4 RAM and 32 GByte eMMC storage. It supports a wide range of interfaces including Ethernet, USB, DIO, Serial, CAN, and LCD Interface, and operates on Embedded Linux (Yocto Distribution). - NXP i.MX93, 2x Arm® Cortex®-A55 @1.7 GHz - NXP 1x Arm® Cortex®-M33 @250 MHz, 1x Arm® Ethos™ U-65 microNPU - LPDDR4 RAM 2 GByte, eMMC 32 GByte - Ethernet, USB, DIO, Serial, CAN, LCD Interface - Operating system Embedded Linux (Yocto Distribution) Features - CPU: NXP i.MX93, 2x Arm® Cortex®-A55 @1.7 GHz, 1x Arm® Cortex®-M33 @250 MHz, 1x Arm® Ethos™ U-65 microNPU - LPDDR4-RAM: 2 GByte (512 Mbyte / 1 GByte) - eMMC: 32 GByte (4 GByte up to 64 GByte) - EEPROM: 8 kByte - SD CARD: 1x microSD-Slot - NV MEMORY: 8 kByte EERAM - Ethernet: 2x 1 Gbit/s - USB: 2x USB 2.0 Host, 1x USB 2.0 Type-C UFP - DIO: 4x DIO (24 V/up to 800 mA) - Serial: 1x RS232, 1x RS485 - CAN: 1x CAN FD - LCD Interface: 1x LVDS (up to 1366 x 768 @60 fps) - Touch: 1x I2C, 1x USB - Camera Interface: 1x MIPI CSI (2-lane) - Operating System: Embedded Linux (Yocto Distribution) - Bootloader: U-Boot - Power Supply: 24 V DC ±20 % - Temperature range: 0 °C ... +55 °C, ambient, non-condensing - Form Factor: 105.5 x 67 mm (4.3”) - RTC: 1x RV-3028-C7 - RTC BUFFERING: CR 1220 - Debug: 1x Console - Expansion: 1x SDIO (4-bit), 1x I2C, 1x SPI, 1x SAI, 1x USB, 1x UART - Audio: 1x Buzzer - Approvals: CE - Security: EdgeLock® Secure Enclave, Trusted Resource Domain Controller (TRDC), supports 16 domains, Arm® TrustZone® (TZ) architecture, On-chip RAM (OCRAM) secure region protection, Battery Backed Security Module (BBSM), secure real-time clock (RTC), Secure JTAG
