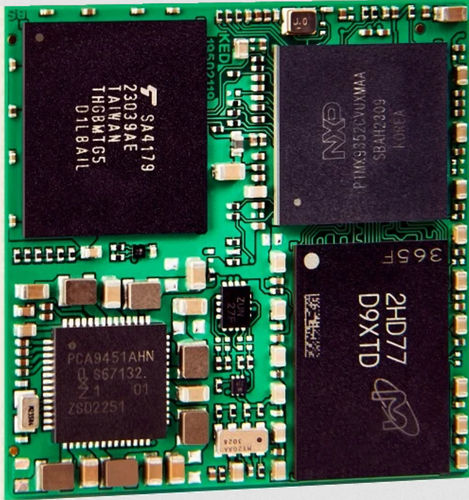

Size-S computer-on-module SoM OSM-S i.MX93

ARM® Cortex®-A55 Quad-coreNXP i.MX93Ethernet

The SoM OSM-S i.MX93 combines cost effectiveness and energy efficiency as well as connectivity on a compact 30 mm x 30 mm module. - 2x Arm® Cortex®-A55 @1.7 GHz - 1x Arm® Cortex®-M33 @250 MHz - 1x Arm® Ethos™ U-65 microNPU - OSM-Form factor Size-S 30 mm x 30 mm Features: - CPU: NXP i.MX93, 2x Arm® Cortex®-A55 @1.7 GHz, 1x Arm® Cortex®-M33 @250 MHz, 1x Arm® EthosTM U-65 microNPU - LPDDR4-RAM: 1 GByte, optional 512 MByte up to 2 GByte - eMMC: 4 GByte, optional 8 GByte up to 64 GByte - EEPROM: 8 kB optional - Ethernet: 2x 1 Gbit/s IEEE 1588 (1x with TSN) - USB: 2x USB 2.0 OTG - I/Os: 4x UART, 2x I²C, 2x SPI, 10x GPIO, 3x PWM, 1x SAI, 2x SDIO (4-bit), 2x ADC - CAN: 2x CAN FD - LCD Interface: 1x MIPI DSI (4-lane) up to 1920 x 1200 @60fps, 1x LVDS (4-lane) up to 1366 x 768 @60fps - Camera Interface: 1x MIPI CSI (2-lane) - Power Supply: 5 V DC ±5 % - IO Voltage: 1.8 V - Power Consumption: TBD - Temperature range: -25 °C ... +85 °C - RTC (I²C): As an option - Operating System: Embedded Linux (Yocto Distribution) - Form Factor: 30 x 30 mm OSM Size S - Footprint: 332 Pin / 1.25 mm pitch - Safety: EdgeLock® Secure Enclave
