Unmanaged Ethernet switch card CP933

6 portsEthernetlayer 2

Overview

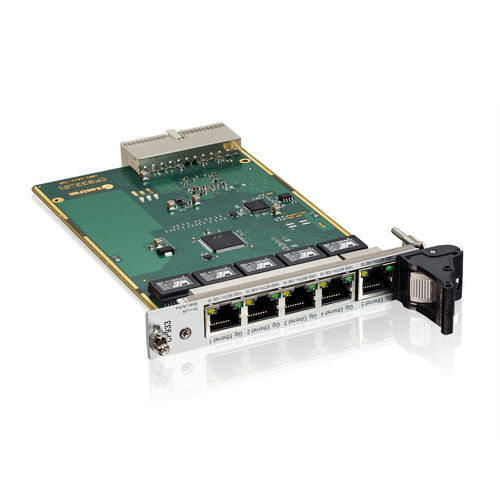

Robust 3U CompactPCI Gigabit Ethernet switch board CP933 with 6 ports (5 front RJ45 + 1 integrated NIC). Designed for industrial CompactPCI systems.

Presentation
CP933 is based on the Marvell 88E6352 switch controller and includes an integrated Intel® I210-IS NIC connected permanently to the master CPU. All five front-panel RJ45 connectors support uplink (MDI/MDIX). The board operates as a Layer 2 unmanaged (plug & play) device.

Key features

• Marvell 88E6352 switch controller
• Integrated Intel® I210-IS NIC permanently linked to master CPU
• All front ports uplink-capable (MDI/MDIX)
• 10/100/1000Base-TX with auto-negotiation
• Extended temperature option for industrial environments

Technical data
Frontpanel: 5x RJ45
Function: Layer 2 unmanaged (plug & play)
Data rate: 10/100/1000 Mbit/s with auto-negotiation
Channels: five Gigabit Ethernet + one integrated NIC
Controller: Marvell® Link Street® 88E6352
NIC: Intel® I210-IS (integrated)
Power consumption: 3.3 V / 5 V, 4.5 W
Operating temperature: 0 °C to +60 °C (standard); -40 °C to +85 °C (extended option)

Detailed description
CP933 is a 3U CompactPCI switch board tailored for industrial applications requiring reliable Gigabit Ethernet connectivity inside CompactPCI chassis. The Marvell 88E6352 provides Layer 2 switching while the integrated Intel I210 NIC ensures a dedicated host interface. Front-panel RJ45 connectors are uplink-capable, simplifying network topology and integration.

Documents
Datasheet and user manuals available for download. Contact Kontron for ordering codes and extended temperature options.
