Digital I/O card 3.5"-eIO-GPA-1

Ethernetserialmulti-channel

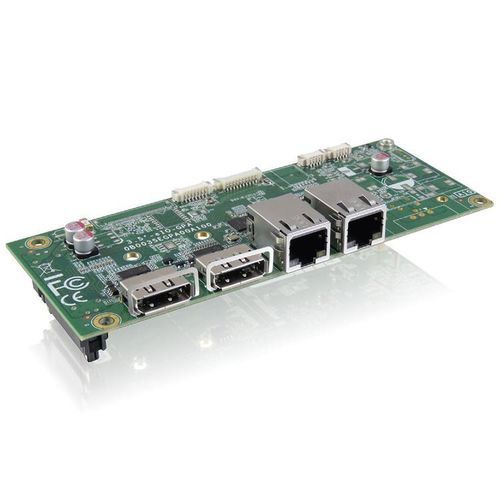

More I/O & Functionality Extension 3.5"-eIO-GPA is an extended I/O board designed for Kontron 3.5"-SBC Series products for general purpose applications to facilitate system integration with less effort and investment in I/O extension. - 2x DP, 2x 2.5 GbE LAN on rear I/O panel - 1x UART, 1x I2C, 1x SMBus, 1x GSPI onboard - Operating temperature: 0 °C ~ 60 °C - Intel® I226-LM Ethernet Controller Key Features: - 2x DP (DisplayPort) outputs - 2x 2.5 GbE LAN ports - 1x UART (Universal Asynchronous Receiver-Transmitter) - 1x I2C (Inter-Integrated Circuit) - 1x SMBus (System Management Bus) - 1x GSPI (General Serial Peripheral Interface) - Designed for Kontron 3.5"-SBC Series - Operating temperature range: 0 °C to 60 °C Technical Specifications: - Form Factor: 3.5" Extended I/O Board - Model: 3.5"-eIO-GPA-1 - Ethernet Controller: Intel® I226-LM - Rear I/O: 2x DP, 2x 2.5 GbE LAN - Onboard I/O: 1x UART, 1x I2C, 1x SMBus, 1x GSPI - Operating Temperature: 0 °C ~ 60 °C
