CompactPCI backplane CP-BP-KIT

cPCIPICMG1-5 slots

Overview

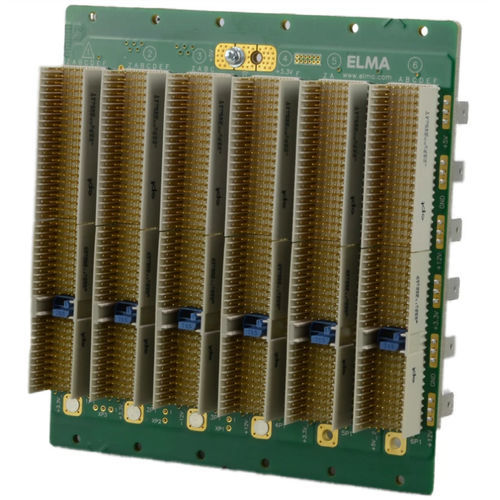

The CP-BP-KIT series provides CompactPCI backplanes for operation at 33 MHz with 2-8 slots. Backplanes with 2-5 slots are available for 66 MHz bus frequency. The slot count can be extended to 10-21 by a bridge option. Versions with 32-bit routing with rear I/O and 64-bit routing are available. Hot-swap and IPMI system management are supported. CP-BP-KIT backplanes feature excellent EMI properties.

Power and Connectivity
Power connection boards with Positronic P47 or M24/8 type connectors and interconnect modules for the backplanes are included in the kit. This design provides mechanical flexibility, eliminates additional cabling for easier installation and improves long-term reliability.

Supported standards

• PICMG 2.0 R3.0 CPCI Core Specification
• PICMG 2.1 R2.0 Hot Swap Specification
• PICMG 2.9 R1.0 System Management Specification (IPMI)

Technical specifications

• Series: CP-BP-KIT (CompactPCI backplane kit)
• Bus frequency: 33 MHz (standard for 2-8 slots); 66 MHz available for 2-5 slot variants
• Slot count: standard 2-8 slots; expandable to 10-21 via bridge option
• Routing options: 32-bit routing with rear I/O and 64-bit routing
• Management: Hot-swap (PICMG 2.1) and IPMI (PICMG 2.9) supported
• Power connectors: Positronic P47 or M24/8 type
• Kit contents: power connection boards and interconnect modules (no additional cabling required)
• EMI: designed with excellent EMI properties
