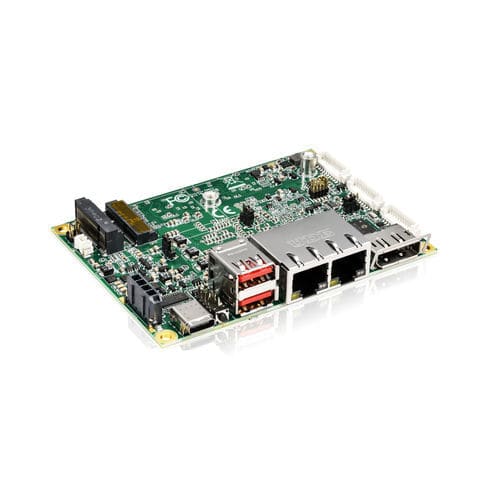

Pico-ITX single-board computer 2.5"-5BC-ADN-8-N97

2.5"Intel® AtomIntel® Core™

Overview
2.5"-SBC-AML/ADN is a 2.5" Pico-ITX single board computer designed for ultra-compact industrial edge and embedded systems. It supports Intel® Atom® x7000RE/x7000E Series, Intel® Core™ i3 N-Series and Intel® N-Series (Alder Lake N) processors with Intel® UHD Graphics Gen12 and LPDDR5 memory, enabling enhanced processing, media handling and AI inference in small form-factor applications.

Highlights

• Improved CPU and GPU performance with accelerated AI inference
• Next-generation LPDDR5 memory up to 4800 MT/s
• Robust design for wide operating conditions and variable power inputs
• Hardware-based security features for data protection and authentication
• Distinct I/O mix: 2x LAN, 1x Standard DP, 1x eDP, 2x COM

Twin products

• 2.5"-SBC-AMV/ADV — suitable for industrial display systems and LVDS panel projects
• 2.5"-SBC-AMH/ADH — suited for retail, commercial and audio-enabled applications

Technical data (table)
Processor: [Standard] Intel® Atom® x7211RE (2C, 6M, 1.0/3.2 GHz, 6 W); Intel® Atom® x7433RE (4C, 6M, 1.5/3.4 GHz, 9 W); Intel® Atom® x7835RE (8C, 6M, 1.3/3.6 GHz, 12 W); Intel® Core™ i3-N305 (8C, 6M, 1.8/3.8 GHz, 9←15 W); Intel® N97 (4C, 6M, 2.0/3.6 GHz, 12 W). [Project] Intel® Atom® x7213RE (2C, 6M, 2.0/3.4 GHz, 9 W); Intel® Atom® x7211E (2C, 6M, 1.0/3.2 GHz, 6 W); Intel® Atom® x7213E (2C, 6M, 1.7/3.2 GHz, 10 W); Intel® Atom® x7425E (4C, 6M, 1.5/3.4 GHz, 12 W); Intel® N50 (2C, 6M, 1.0/3.4 GHz, 6 W); Intel® N200 (4C, 6M, 1.0/3.7 GHz, 6 W)
Main memory: 4 GB / 8 GB / 16 GB LPDDR5 4800 (soldered down)
Graphics: Intel® UHD Graphics Gen12
Display: 1x eDP (4096 x 2160 @ 60 Hz); 2x DP (4096 x 2160 @ 60 Hz, 1x Standard DP rear, 1x DP over USB-C rear); Triple display support
Ethernet: Intel® I226-V/IT

Variants & example configurations

• 2.5"-SBC-ADN-1-i3-N305 — Intel® Core™ i3-N305, Intel® I226-V LAN, 16 GB LPDDR5, 128 GB eMMC, 2x RS232/422/485, Operating temp: 0 °C ~ 60 °C
• 2.5"-SBC-ADN-8-N97 — Intel® N97, Intel® I226-V LAN, 8 GB LPDDR5, 64 GB eMMC, 2x RS232, Operating temp: 0 °C ~ 60 °C
• 2.5"-SBC-ADN-9-N97 — Intel® N97, 4 GB LPDDR5, 64 GB eMMC, 2x RS232, Operating temp: 0 °C ~ 60 °C
• 2.5"-SBC-ADN-A-N97 — Intel® N97, 8 GB LPDDR5, 128 GB eMMC, 2x RS232, Operating temp: 0 °C ~ 60 °C
• 2.5"-SBC-ADN-B-i3-N305 — Intel® Core™ i3-N305, 8 GB LPDDR5, 128 GB eMMC, 2x RS232, Operating temp: 0 °C ~ 60 °C
• Extended-temperature (XT) variants available with Intel® Atom® processors: Operating temp: -40 °C ~ 85 °C

Downloads available
Datasheet, User Guide, Installation Guide and Tech Spec Sheet available for download.
