Digital I/O card 3.5"-eIO-GPA

Ethernetserial2 digital inputs

Product overview

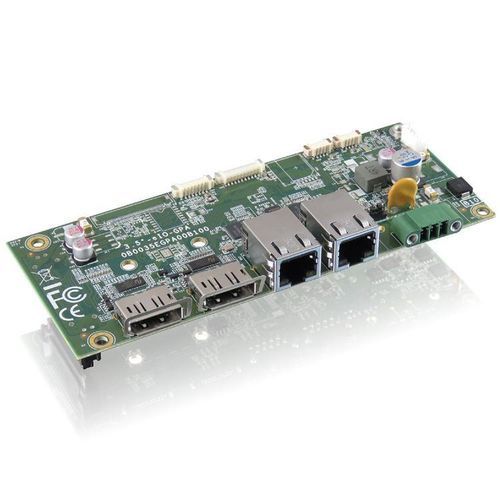

The 3.5"-eIO-GPA is an extended I/O board for Kontron 3.5"-SBC Series. It adds video, Ethernet and serial interfaces to simplify system integration and reduce development effort for general-purpose and embedded industrial applications.

Key features

• 2x DisplayPort (rear I/O)
• 2x 2.5 GbE LAN (Intel® I226-LM)
• 1x UART
• 1x I2C
• 1x SMBus
• 1x GSPI
• 1x DC In Terminal Block (rear I/O)
• Operating temperature: 0 °C to 60 °C

Advantages

• Enables multiple system variants from a single baseboard
• Simplifies system upgrades and I/O expansion
• One‑stop integration service available
• Long-term availability for industrial deployments
• Flexible customization on request

Downloads (selected documents)

• 3.5"-eIO-GPA datasheet — 1.57 MB | August 4, 2026
• 3.5"-eIO-GPA User Guide — 1.17 MB | April 21, 2026
• 3.5"-eIO-GPA Quick Installation Guide — 233.42 KB | April 21, 2026

Technical specifications

• Form factor / compatibility: Extended I/O board for Kontron 3.5"-SBC Series
• Video outputs: 2x DisplayPort (rear I/O)
• Ethernet: 2x 2.5 GbE LAN, controller Intel® I226-LM
• Serial / management interfaces: 1x UART, 1x I2C, 1x SMBus, 1x GSPI
• Power input: DC In Terminal Block (rear I/O)
• Operating temperature range: 0 °C to 60 °C
• Primary use: I/O extension to facilitate system integration in general-purpose and embedded industrial applications
